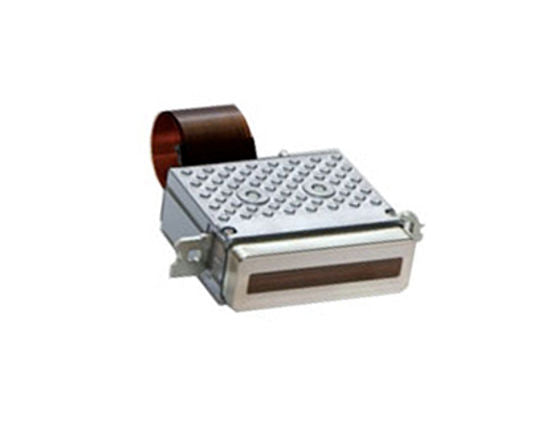

Toshiba CK1L Printhead

Toshiba CK1L the ultimate inkjet head for excellent jetting reliability with ink circulation. This Toshiba CK1L is an inkjet head that offers a long-awaited solution of enhancing jetting reliability, and its print quality well fits a wide range of application from ceramic, transpromotional, label & packaging to sign & graphics.
In particular, CK1L demonstrates is full merit for a singlepass printing where reliability is a top priority.

The Toshiba CK1L printhead can replace the Toshiba CF1L printhead.

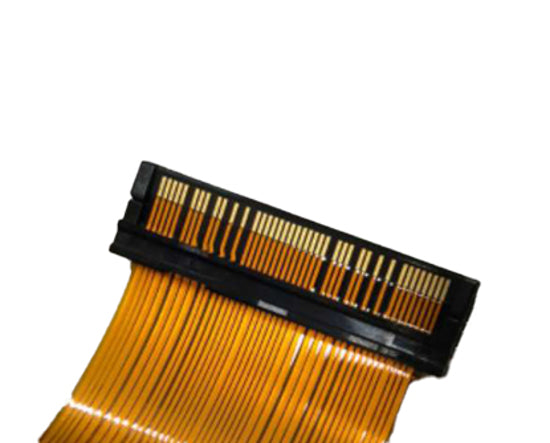

We recommend to change the head cables when installing a new printhead.

Product Specifications

• Print Method: Drop on demand piezo
• Print Width: 53.7mm
• Number of channels: 636
• Resolution: 300dpi / 84.5 micron
• Grayscale level: 4-levels (0.5 - 7 dpd)
• Drop Volume: 51 - 90pl
• Maximum dot frequency: 4.8kHz (at max dpd)
• Linear speed: 24m/min (at max dpd)
• Driving voltage: 14 - 31V
• Drop velocity: 7 - 9 (m/s)
• Weight: 161g (185g with positionning plate)
• Dimension: 94 (W) x 79 (D) x 26 (H) mm / 111 (W) x 79 (D) x 34 (H) mm with repositionning plate
• Jettable fluids: UV-curing, oil-based
