Toshiba CF1B Printhead for Mimaki UJF-7151 Plus

$3,381.49
$3,381.49
Shipping calculated at checkout.
    Toshiba CF1B Printhead for Mimaki UJF-7151 Plus
    Toshiba CF1B Printhead for Mimaki UJF-7151 Plus

    Tech Specs

    Description

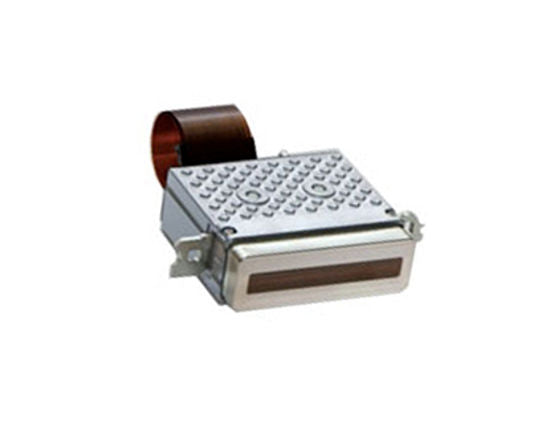

    This Toshiba CF1B printhead is suitable for printers such as Mimaki UJF-7151 Plus. This is the original Toshiba part number CF1B.

    We recommend to change the head cables when installing a new printhead.

    Product Specifications

    • Print Method: Drop on demand piezo
    • Print Width: 53.7mm
    • Number of channels: 636
    • Resolution: 300dpi / 84.5 micron
    • Grayscale level: 8-levels (0.5 - 7 dpd)
    • Drop Volume: 64 - 90pl
    • Maximum dot frequency: 4.8kHz (at max dpd)
    • Linear speed: 24m/min (at max dpd)
    • Driving voltage: 14 - 31V
    • Drop velocity: 7 - 9 (m/s)
    • Weight: 161g (185g with positionning plate)
    • Dimension: 94 (W) x 79 (D) x 26 (H) mm / 111 (W) x 79 (D) x 34 (H) mm with repositionning plate
    • Jettable fluids: UV-curing, oil-based
