Subzero 220 H UV Bulb for SwissQprint Nyala Printers

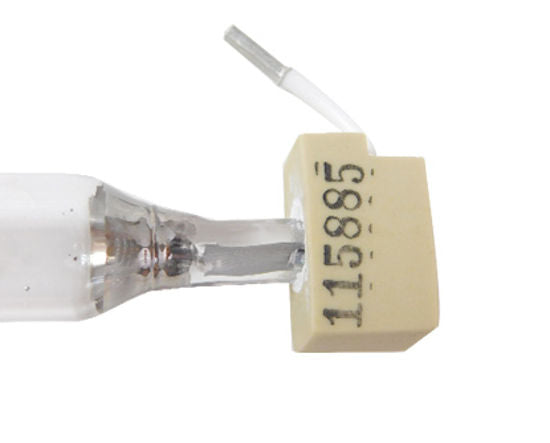

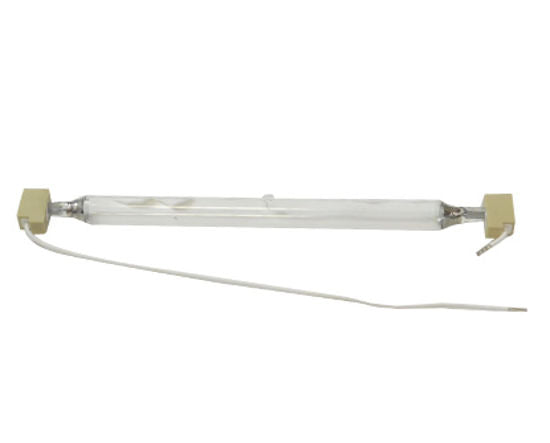

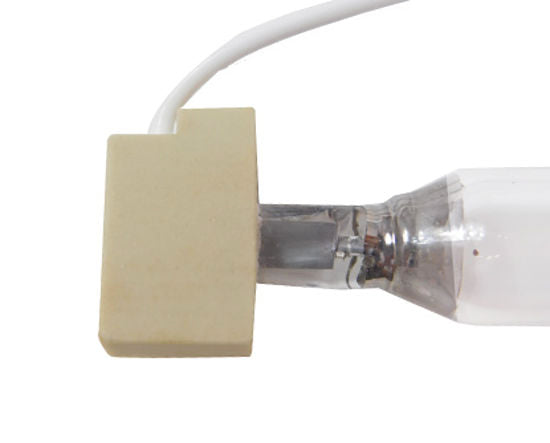

This SubZero 220 H UV Bulb is suitable for SwissQprint Nyala printers.

Designed specifically for inkjet curing applications, the world leading miniature SubZero UV curing system is specifically designed for moving head inkjet printers, the shutter allows the UV exposure to be closed off as the lamp unit moves the media, greatly reducing the risk of reflected UV light causing damage to the expensive printheads.

Detailed research and lengthy cycle testing has enabled a design which offers exceptional service life, eliminating unnecessary downtime and the replacement of worn components. This lamp has a total length of 287mm, an arc length of 220mm and an outer diameter of 17mm.

Some version of SwissQPrint Impala uses Subzero 170 A UV bulb. Please check the UV bulb arc length before ordering.

SubZero Standard Features
- Ultra compact “footprint”
- Ultra light weight
- High intensity reflector system
- Quartz Filter
- Quick change Cassette
- Rapid Warm up and Cool down
- Integrated air-cooling
- High Flex cable up to 15m
- 500 hours warranty
- 6 months shelf life
Subzero options
- Electronic power supply
- Electronic high performance shutters

SubZero 220 Compliances
CE/UL 60950-1
ISO CE CB EN60950-1
CE EN 60204
EMC EN 55015
EMC EN 61000
