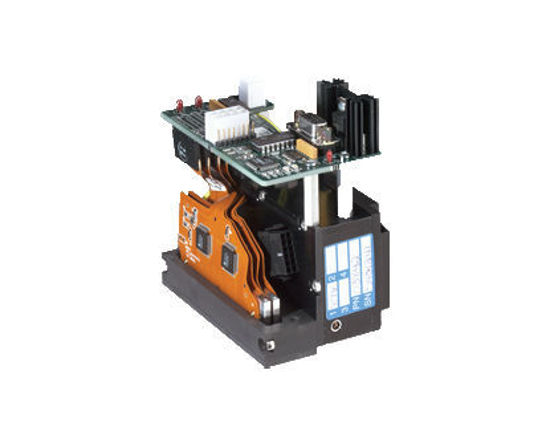

Spectra Galaxy PH 256/80 HM

$4,498.42
$4,498.42
Shipping calculated at checkout.
    Spectra Galaxy PH 256/80 HM

    Tech Specs

    Description

    The Galaxy Printhead PH 256/80 HM is an 80pL ink jet printhead offering complete fluid support and signal processing capabilities for a wide range of jetting fluids.

    Specifications:

    • 80 picoliter calibrated drop size
    • Resolutions up to 450 dpi
    • Number of addressable jets : 256
    • Nozzle spacing: 254 microns [0.010 in.]
    • Nozzle diameter: 52 microns
    • Calibrated drop size: 80 picoliters
    • Adjustment range for drop size: 75 - 85 picoliters
    • Drop size variation, 1 sigma: 5%
    • Jet straightness, 1 sigma: 5 mrad [0.29°]
    • Nominal drop velocity: 8 m/sec
    • Drop velocity variation, 1 sigma: 5%
    • Crosstalk, maximum: 5%
    • Operating temperature range: up to 125°C [257°F]
    • Fluid viscosity range (at jetting temperature): 8 - 20 cP
    • Compatible jetting fluids: Hot melt
    •  Maximum operating frequency: 12 kHz
    • Electrical interface: RS-422
    • Ink filter: 8 microns absolute
    • Meniscus vacuum : 6.3 - 8.7 mBar [2.5 - 3.3 in. wg]
    • Lung vacuum: 750 mBar [22 in. Hg gage]

    Printer compatibility

    • Jet Wax
