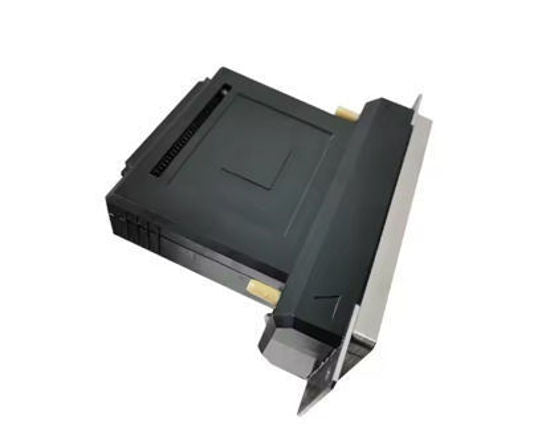

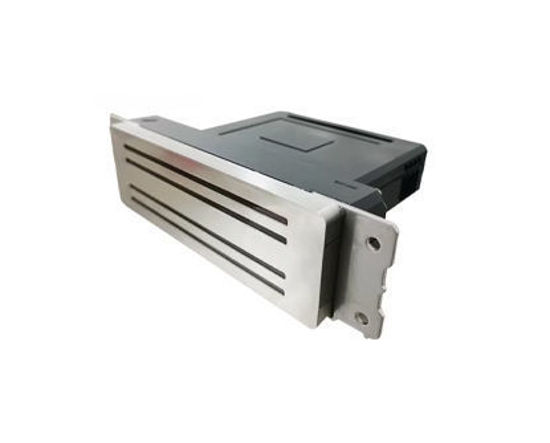

Seiko SPT RC1536M 13-150pl UV Printhead- ICA1536T20

$4,295.41
$4,295.41
Shipping calculated at checkout.
    Seiko SPT RC1536M 13-150pl UV Printhead- ICA1536T20
    Seiko SPT RC1536M 13-150pl UV Printhead- ICA1536T20

    Tech Specs

    Description

    This printhead is suitable for for ceramic, corrugated cardboard, textiles, inkjet printers.

    It is highly recommended to replace the head cables together with a new printhead.

    Specifications

    • Drop Volume Range :13 to 150 pL
    • Maximlum Productivity at 10 Drops: 1.500 µL/sec
    • Discharge at 25M/min: 85 g/m²
    • Possible print directions: Vertical and Horizontal
    • Number of Grey Levels: up to 10
    • Jetting Frequency: up to 37 kHz
    • Native Nozzle Resolution: 360 npi
    • Active Nozzles: 1536 at 4 rows
    • Ink Inlets / Ink Outlets : 1/1
    • Ink Compatibility: Oil and UV ink
    • Print width: 108.3 mm
    • Weight: > 0.7 kg
    • Dimensions: 180,0 x 47.6 x 123.3 mm
    • Driving Interface: Parallel interface

    Printer compatibility

    • EFI Nozomi 14000 LED
    • EFI Nozomi C18000
    • EFI Nozomi C18000 Plus
    • Packsize EFI X5 Nozomi
