Ricoh GEN5 UV Printhead (Cable: 500mm) - MH5420 / N221414R
- Regular price
-
$2,636.00 - Regular price
-
- Sale price
-
$2,636.00
Shipping calculated at checkout.
Couldn't load pickup availability
Tech Specs
Description

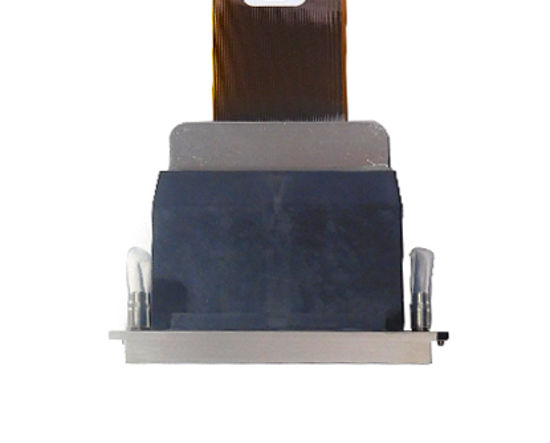

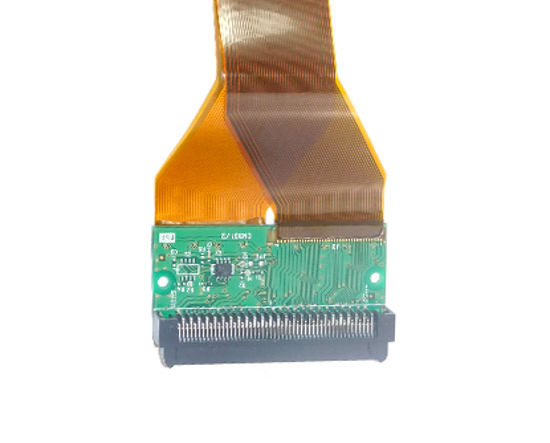

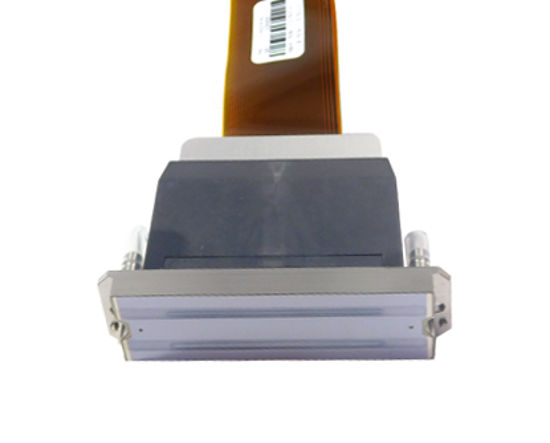

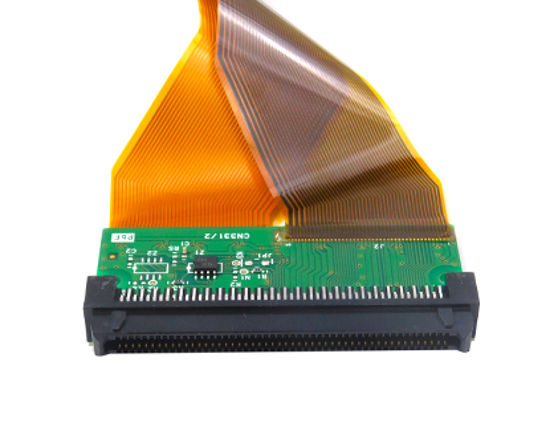

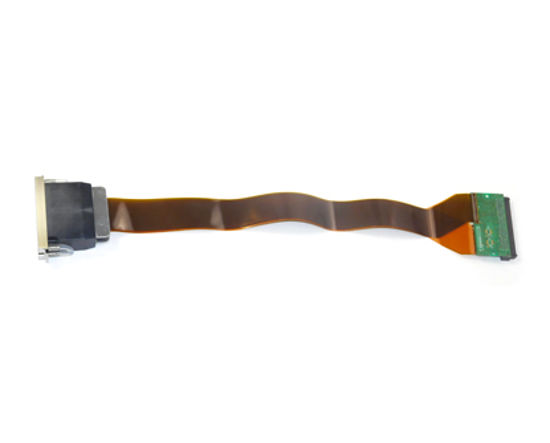

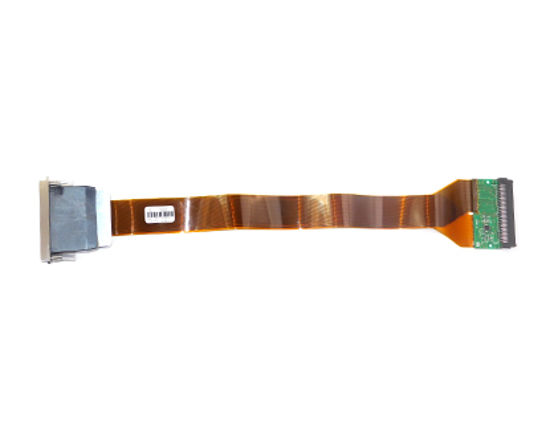

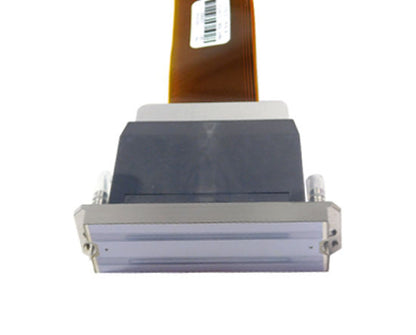

This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to two colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.
This head is also known as N221414R
This printhead comes with the hose barbs which can easily be removed if needed.
Technical Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 npi
- Piezo type: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 - 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Ink compatibility: UV Inks
- Life: 100 billion actuations per nozzle
-
Max.number of color inks: 2 colors
-
Number of ink ports: 2 × dual ports
Printer compatibility
- Agfa Jeti Mira MG2716 S/HS
- Agfa Jeti Mira MG2732 S/HS
- Agfa Jeti Tauro H2500
- Agfa Jeti Titan HS
- Agfa Jeti Titan S
- Agfa Tauro H3300
- Akad NovaJet UV M6
- CET Color Q5-1000
- CET Color Q5-1000h
- CET Color Q5-250
- CET Color Q5-250h
- CET Color Q5-500
- CET Color Q5-500h
- Docan 1212 UV
- Docan FR3210
- Docan FRT3116
- Docan M10
- Docan M6
- Docan M8
- EFI Pro 30F
- EFI Pro 30F
- Handtop HT1600UV HR4
- Handtop HT1610UV FR4
- Handtop HT2500UV HR8
- Handtop HT2512UV-D FR8
- Handtop HT3116UV FR8
- Handtop HT3200UV HG12
- Handtop HT3200UV HR8
