Ricoh GEN4L 27PL Printhead (Long Cable) - MH2820

$2,817.80
$2,817.80
Shipping calculated at checkout.
    Ricoh GEN4L 27PL Printhead (Long Cable) - MH2820
    Ricoh GEN4L 27PL Printhead (Long Cable) - MH2820
    Ricoh GEN4L 27PL Printhead (Long Cable) - MH2820
    Ricoh GEN4L 27PL Printhead (Long Cable) - MH2820

    Tech Specs

    Description

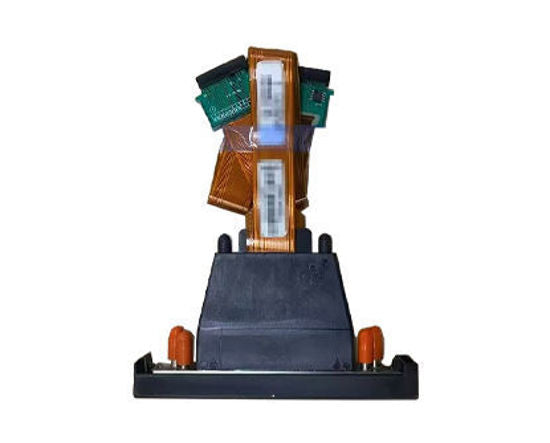

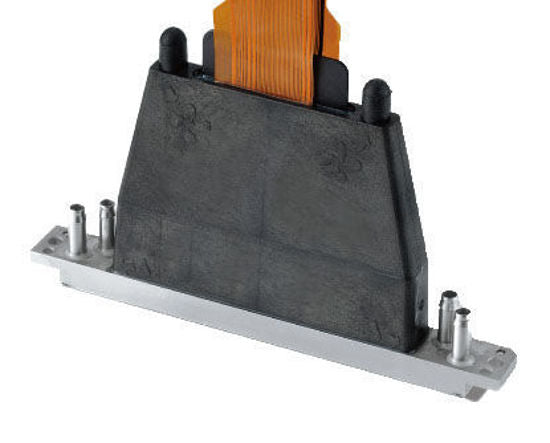

    The Ricoh MH2820 GEN4L printhead is suitable for a range of UV, aqueous and solvent printers. This head is capable of jetting a variety of ink types in large droplet sizes, from 27-54 pl. The built-in heater heats the ink to up to 80ºC for jetting, providing support for high-viscosity inks. This is Ricoh original printhead. This head comes with hose barbs. The hose barbs can be removed if printhead with o-rings is needed.

    We recommend to change the head cables when installing a new printhead.

    Technical Specifications

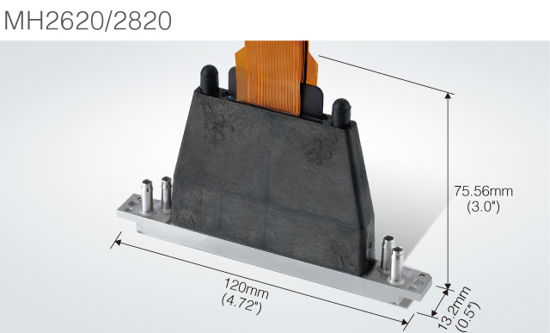

    - Size: 120 x 75.56 x 13.2 mm (excluding cables)
    - Nozzle Plate Surface: Non-wet coating
    - Number of Nozzles: 2 x 192 nozzles
    - Nozzle Spacing within a row: 0,339 mm
    - Compatible ink: UV, solvent, aqueous
    - Temperature Control: Integrated Heater and Thermistor
    - Operator Temperature range: Up to 80° C
    - Drop Volume Range: 27-54 pl
    - Jetting Frequency: 30 kHZ (27pl) - 20 kHz (54pl)
    - Viscosity range: 11-13 mPas
    - Surface tension: 28-35mN/m
    - Grey scale: 3 levels
    - Total length 256 mm including cables
    - Number of ink ports: 1 color: 1 x dual / 2 colors: 2 x dual

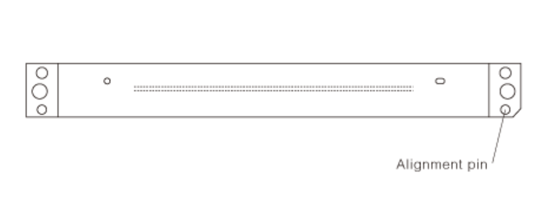

    - Alignment pin direction: Front (standard) / Back (optional)
    - Life: 100 billion actuations per nozzle
