Ricoh GEN4 7-35PL Printhead - MH2420

$1,499.80
$1,499.80
Shipping calculated at checkout.
    Ricoh GEN4 7-35PL Printhead - MH2420
    Ricoh GEN4 7-35PL Printhead - MH2420
    Ricoh GEN4 7-35PL Printhead - MH2420
    Ricoh GEN4 7-35PL Printhead - MH2420
    Ricoh GEN4 7-35PL Printhead - MH2420
    Ricoh GEN4 7-35PL Printhead - MH2420
    Ricoh GEN4 7-35PL Printhead - MH2420

    Tech Specs

    Description

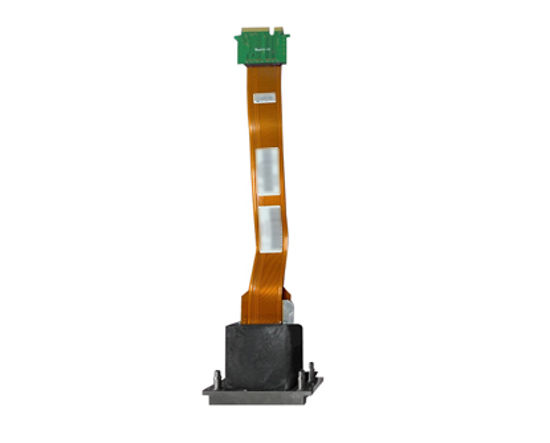

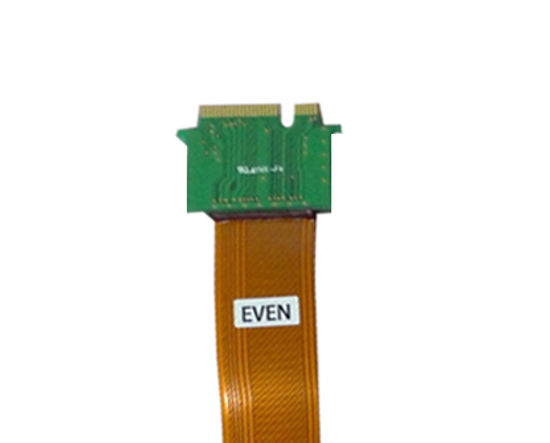

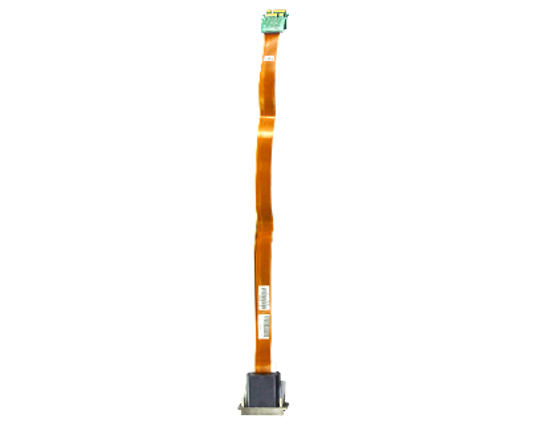

    The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. The cable is 44 cm long (including the connector). The version with short cable (N220792T) is discontinued but can be replaced by this identical head with a longer cable.
    This printhead comes with hose barb ink inlet that can be removed in case o-ring sealed ink inlet are required. This printhead corresponds to Ricoh part numbers N220792W, N220792S, N220792U, N220792T or N220792E.

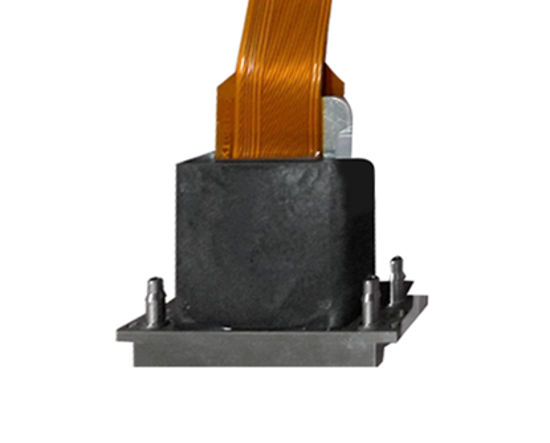

    This printhead comes with the hose barbs which can easily be removed if needed.

    Technical Specifications

    • Cable length: 440mm
    • Connection: Hose Barb
    • Type: Printheads

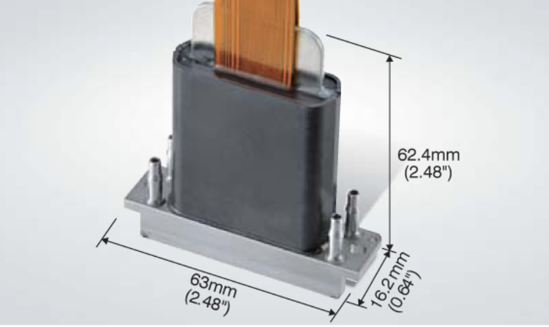

    • Size: 63 x 62.4 x 16,2 mm (excluding cables)

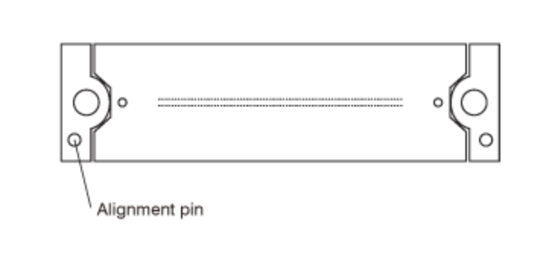

    • Number of Nozzles: 2 x 192 nozzles
    • Nozzle Spacing within a row: 0,1693 mm
    • Nozzle spacing row to row: 0.529 mm
    • Temperature Control: Integrated Heater and Thermistor
    • Operator Temperature range: Up to 60° C
    • Drop Volume Range: Binary mode: 7pl / Grey-scale mode: 7-35 pl
    • Jetting Frequency: Up to 30 kHZ
    • Surface tension: 28-35nM/m
    • Viscosity range: 10-12 mPas
    • Grey scale: 4 levels
    • Number of ink ports: 2 x dual
    • Life: 100 billion actuations per nozzle

    Printer compatibility

    • Agfa Jeti 3020 Titan
    • Agfa Jeti Titan X

    • Anajet mPower
    • Anajet MPower MP10i
    • Anajet MPower MP5i

    • CET Color X-Press 500Q

    • Digitex Gunsjet SF-1914
    • Digitex Gunsjet SR-1808
    • Digitex Gunsjet SR-2508
    • Digitex Gunsjet SR-3208
    • Digitex Gunsjet UF4547

    • Durst Omega 1
    • Durst Omega 2

    • DYSS Apollo GF2616-08F
    • DYSS Apollo GF2616-10FFW
    • DYSS Apollo GF2616-10FRW
    • DYSS Apollo GF2616-12F
    • DYSS Apollo GF2616-12S
    • DYSS Apollo GF2616-14SFW
    • DYSS Apollo GF2616-14SRW
    • DYSS Apollo GF2616-16F
    • DYSS Apollo GF2616-16SFWFV
    • DYSS Apollo GF2616-16SRWRV
    • DYSS Apollo GH1600-08F
    • DYSS Apollo GH1600-08SF
    • DYSS Apollo GH1600-08SR
    • DYSS Apollo GH1600-10FM
    • DYSS Apollo GH1600-12S
    • DYSS Apollo GH1600-12SFWFV
    • DYSS Apollo GH2200-08F
    • DYSS Apollo GH2200-08SF
    • DYSS Apollo GH2200-08SR
    • DYSS Apollo GH2200-10FM
    • DYSS Apollo GH2200-12S
    • DYSS Apollo GH2200-16SFWFV
    • DYSS Apollo GH2600-08F
    • DYSS Apollo GH2600-08SF
    • DYSS Apollo GH2600-08SR
    • DYSS Apollo GH2600-10FM
    • DYSS Apollo GH2600-12S
    • DYSS Apollo GH2600-12SFWFV

    • Gandy Digital Domin8tor

    • Ricoh Ri 2000

    • tek-Ind alfa digital SD50x70-R4
