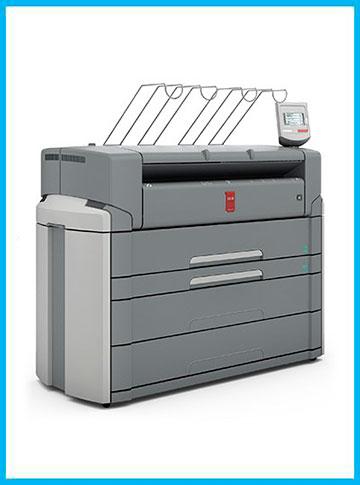

OCE 750
BROCHURE
TECHNOLOGY
Product description
Productive wide format black & white print/copy/scan system with color scanning
Imaging technology
Electrophotography (LED), organic photoconductor (OPC), clean closed toner system, Océ Radiant Fusing technology
Toner/ Ink type
Océ black toner: 2 bottles per carton, 0.5 kg per bottle
Print speed
Black & white: 9 A1 size/min, 4,7 A0/min
Print resolution
600 x 1200 dpi
Configuration
Printer or multifunctional with choice of 2 scanners
Size main engine (WxDxH)
1440 x 800 x 1475 mm (including top delivery tray)
Weight main engine
290 kg
Certifications
EPA ENERGY STAR®, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class B, RoHS
Paper rolls
Default: 2 rolls, expandable to a maximum of 6 rolls and two cut sheet trays
Maximum paper capacity
Up to 200 m per roll, maximum 6 rolls
Paper weight
75 - 100 g/m2
Roll width
297 - 914 mm
Output delivery
Compact and ergonomic Top delivery tray supporting up to 100 collated plots (other options available)
Media type
Paper: Plain paper, Recycled paper, Colored paper and Transparencies
Film: Film and Vellum
CONTROLLER
Description
Océ Power Logic© controller based on Windows 7 Embedded
Processor
Intel Core 2 i5-520M @ 2.39GHz
Memory
Standard 2 Gb
Hard disk
2 x 500 GB
Interface
Ethernet 100 Mbits/s, 1 Gbit/s
Page description language
TIFF, JPEG, HP-GL, HP-GL/2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, ASCII
Security
E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging
Options
Adobe® PostScript® 3/PDF file interpreter
Description
Océ TCS4 scanner with Océ Direct Scan color technology (single camera, single mirror)
Scan resolution
Optical 575 dpi, addressable 600 dpi
Scan speed
Black & white: 3 - 5 m/min Color: 1 - 4 m/min
Scan format
TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
Scan destination
Network Directory via FTP or SMB and on Controller
Original width
200 - 1016 mm
Original length
200 mm - 22 m
Original thickness
Up to 3 mm (optional scanner up to 15 mm)
Zoom
Scale to standard format. Custom: 10 - 1000 %
Preset modes
Lines & text, Photo, Grays & lines, Dark original, Blueprint
Size scanner (WxDxH)
1353 x 670 x 1300 mm
Weight scanner
65 kg
PRODUCTIVE B&W SCANNER
Description
Océ TDS600 scanner with Océ Image Logic ® technology (single camera, single mirror)
Scan resolution
400 dpi
Scan speed
Black & white: 5 m/min – 9.7m/min at 200 dpi
Scan format
TIFF (uncompressed, G3, G4), PDF,CALS
Scan destination
Network Directory via FTP or SMB and on Controller
Original width
210 - 1020 mm
Original length
150 mm - 15 m
Original thickness
1 mm of original and up to 3 mm for binding strip
Zoom
25 - 400 % (adjustable in 1% and 0.1% steps)
Preset modes
Photo, Grays & lines, Dark original, Blueprint, Printed matter
Size scanner (WxDxH)
1340 x 583 x 1353 mm
Weight scanner
90 kg
ENVIRONMENTAL (PRINTER)
Sound pressure level
Ready mode: 18 dB(A). Active mode: 58 dB(A)
Ozone concentration
0.001 mg/m3
Power requirements
100 -240 V; 50/60 Hz; 20 - 10 A
Power consumption
Sleep mode: 2,5 W. Ready mode: 51 W. Active mode: 1.6 kW
WORKFLOW
Description
Concurrent print, copy and scan of single documents or sets
Printer drivers
Océ Wide format Printer Driver 2.0 for Microsoft Windows, Océ PostScript 3 driver for Microsoft Windows and Mac OS
Job submission
Océ Mobile WebTools for iOS, Android, Symbian and BlackBerry®, Océ Publisher Mobile for iOS, Océ Publisher Express for web, Océ Publisher Select for Microsoft Windows
Job management
Personalized Smart Inbox with history, Manage queue, Océ Express WebTools, Secure controller access, remote shutdown and restart
Accounting
Option: Océ Account Center
Hardware
Océ TCS4 color scanner, Océ TDS600 productive B&W scanner, integrated folder, delivery tray, Océ Double Decker Pro Stacker, roll loaders to reduce back strain while loading heavy media in the drawers
Software
Océ Repro Desk Suite for printing to multiple wide format devices, viewing and cost tracking
Disclaimers
All specifications subject to change without notice
[1] Océ, Océ PlotWave, Océ Power Logic are registered trademarks of Océ-Technologies
[2] Adobe®, Adobe® PDF and PostScript® 3™ are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
[3] Mac®, Mac OS® and Mac iOS are trademarks of Apple Inc., registered in the U.S. and other countries.
[4] Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
[5] ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.
All other trademarks are the property of their respective owners.
