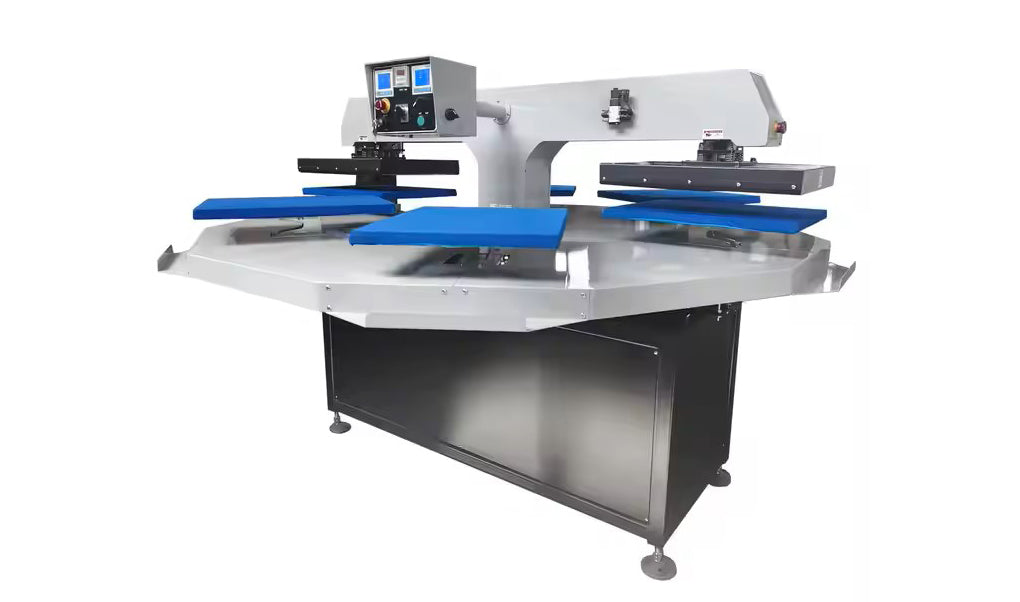

MEM 220V 6KW 28A 16in x 20in Automatic Pneumatic 2 Head 6 Station High Speed Carousel Heat Transfer Machine

Description

The design of the MEM 6 station presses combines a heavy-duty solid industrial grade pressing framework with high quality electric components.This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.Using the six station heat press,all common heat transfer processes (flock,flex,sublimation,transfer,
Inkjet-flex etc.)can be conducted professionally and with highest productivity.The desired settings can be set easily with the temperature controller.The pneumatic pressure can be regulated smoothly with the air reducing valve.With the restriction valve on the solenoid valve,the press and lift speed could be adjusted.

Features:

Industrial grade heavy duty heat press machine 16in x 20in
Thick cast aluminum heat plate for evenly distributed temperature
CE & ROHS approved high quality label heat press machine
0.6 -0.7 MPa(120 PSI) for heavy pressure application.
Self-pressure balancing system
Powered by an air compressor with a minimum of 800w 30L / 8 galleon
Not included)
Includes teflon sheet on the heat plate.
Lifetime on-line service

Specifications:

Voltage and power: 220V ,6000W,28A, single phase
Time Range: 0-999sec.
Max. Temp.: 500°F/260°C
Heat Plate Size: 16in x 20in(400mm x 500mm)
Max. Press Thickness: 1.65in(42mm)
Dimensions(LxWxH): 84in x 84in x 55in(2130mm x 2130mm x 1400mm)
Shipping Dimensions(LxWxH): 80in x 48in x 65in(2040mm x 1220mm x 1650mm)
Shipping Weight: 1228lbs(557kg)
