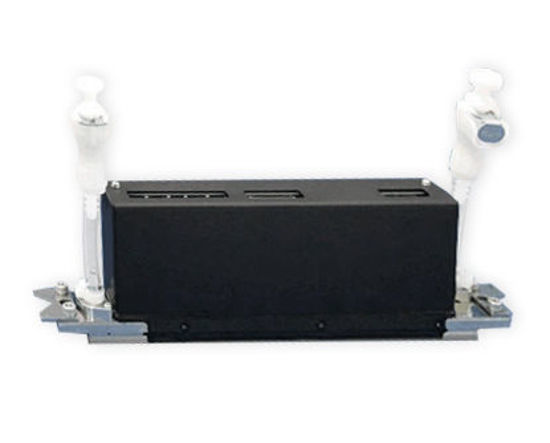

• Kyocera Inkjet Printhead KJ4A-AL
1 1

Wide Image Solutions

Kyocera Inkjet Printhead KJ4A-AL

$4,898.60
$4,898.60
Shipping calculated at checkout.
    Kyocera Inkjet Printhead KJ4A-AL

    Tech Specs

    Description

    The KJ4A-AL printhead Series is designed for UV-curable inks or other high viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset Surprint and others. It is a 600dpi one colour printhead with a maximum drive frequency of 20kHz. It delivers high quality with a small drop volume of 3pl at 50 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe.

    The Kyocera KJ4A-AL is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.
    We recommend to change the head cables when installing a new printhead.
    The Kyocera KJ4A-AL is replacing the Kyocera KJ4A-AA.
    Specifications
    • Ink Type:  UV Ink
    • Dimensions: 200 × 25 × 57.9mm
    • Dry Weight: 420g
    • Total Nozzles: 2.656
    • Standard Resolution: 600 x 600 dpi
    • Print Width: 108.25mm
    • Max. Drive Frequency: 20kHz
    • Drop Volume: 3, 6, and 13pl
    • Max. Sprint Speed: 50m/min
    • Optimum Ink viscosity: 6.0 - 7.0 mPa*s

    Printer compatibility

    • Dilli Neo Sun FB2513-04 D-WX
    • Dilli NEO SUN HB 2504D-W2XL
    • NEO SUN HB 2504 D-DXL
