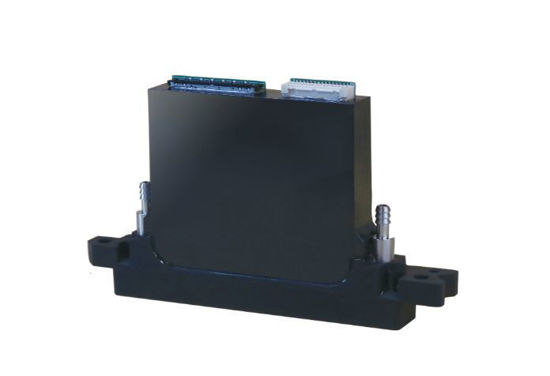

Konica Minolta KM1024a SHE Printhead for Solvent, UV, Oil, Water-Based Inks

The Konica Minolta KM1024a SHE Printhead has 1024 nozzles. It is compatible with solvent, UV, oil, water-based inks. We offer 2 versions of this printhead : one version that has inklets for ID 4mm ink tube and one version that has inklets for 6mm ink tube.

High Productivity Analogue Waveform : Adopting analogue waveform that can achieve high productivity and print accuracy in multiple drops. High flexibility to optimize the waveform for individual inks. 6pl /40kHz, 20pl/ 22kHz is achievable.

Compact Print Head : Light weight (150g) and compact (17.6mm wide) print head enables compact printer design. Mechanical compatibility with KM1024i series print heads.

Robust Nozzle Plate : New nozzle plate material with even higher scratch resistance around 100 times* better than the previous version. *Based on internal measurement

High Drop Accuracy : Introduced a new production method to optimize the drop velocity for individual nozzles. Analogue waveform also enables improved drop accuracy.

Specifications

• Drive Mode: Independent
• # of nozzle: 1024
• Print Width (mm): 72

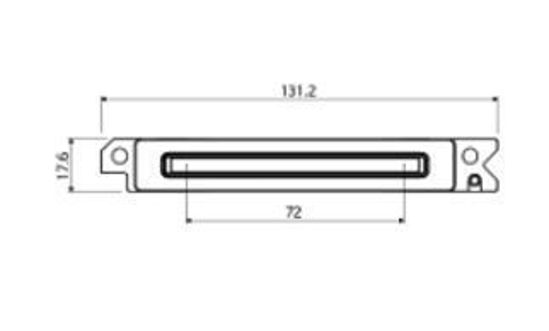

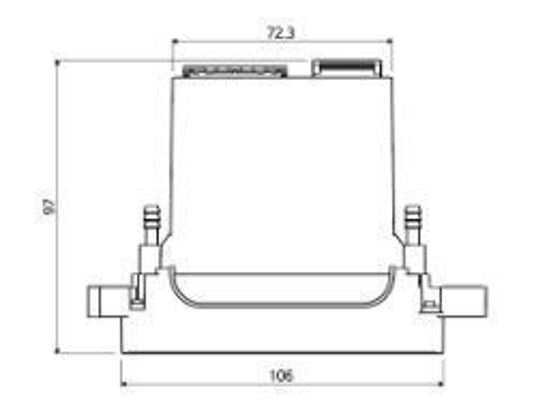

• Head dimensions : W: 131.2mm x D: 17.6mm x H: 97mm
• Regular jetting frequency (kHz)  40kHz (Binary) :22kHz (4dpd)
• Drop volume (pL): 6pL (Binary) 20pL (4dpd)
• Jetting temperature: RT~55℃
• Internal heater: Available
• Ink Type: Solvent, Oil, UV inks.
• Ink Viscosity (mPa・s): 7-10
• Waveform: Analogue
• Weight: 150g
• Grey scale level: 8 level
