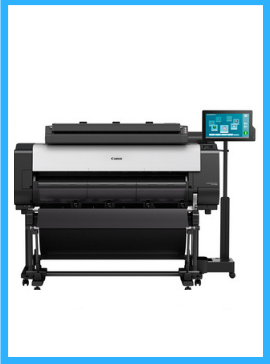

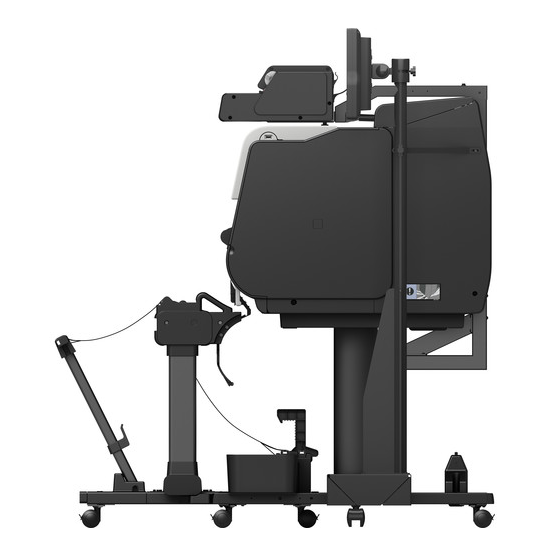

Canon imagePROGRAF TX-4000 MFP T36 44" Large Format Printer - New

$10,495.00
$10,495.00
Shipping calculated at checkout.
    imagePROGRAF TX-4000 MFP T36 www.wideimagesolutions.com 9495.00
    Canon imagePROGRAF TX-4000 MFP T36 44" Large Format Printer - New

    Tech Specs

    Description

    The 44-inch imagePROGRAF TX-4000 MFP T36 is a new Scan-To-Copy/File/Share integrated solution from Canon that includes an integrated printer, T36 scanner and All-In-One Computer that can work independently to improve your workflow. With increased scan speeds and advanced software capability compared to our predecessor large format printer models, this solution has everything needed to copy, scan, archive and share maps, drawings, renderings and posters.

    SCANNER SPECIFICATIONS
    SCANNER TYPE Contact Image Sensor (CIS) technology
    SCAN ACCURACY +/- 0.1%
    SPEED 13 ips monochrome, 6 ips color
    OPTICAL RESOLUTIONS

    1200dpi (Adjustable from 100 dpi to 2,400 dpi)
    MAX. RESOLUTIONS 9600dpi interpolated
    MAX. DOCUMENT SIZE

    Width: 38 inch document width (36 inch image width)
    Length 315" (JPG or PDF)
    598" (TIFF)
    THICKNESS 0.079in (2mm)
    STANDARD INTERFACE USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
    PRINTER SPECIFICATIONS
    PRINTER TYPE

    5-Color 44-inch Printer
    NUMBER OF NOZZLES

    Total: 15,360
    MBK: 5,120 nozzles
    C, M, Y, BK: 2,560 nozzles each
    NOZZLE PITCH

    1200 dpi
    Non-firing nozzle detection and compensation
    PRINT RESOLUTION (UP TO) 2400×1200dpi (Max)
    OS COMPATIABILITY

    Windows® 7, 8.1, 10 (32/64bit)
    Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
    STANDARD INTERFACE

    USB 2.0 High-Speed
    10/100/1000 Base-T/TX
    INK DROPLET SIZE 5 picoliter
    INK CAPACITY 160 ml, 330ml or 700ml per color
    INK TYPES Pigment Ink
    COLOR SET Pigment: Matte Black, Black, Cyan, Magenta, Yellow
    BUFFER / RAM 128 GB (Virtual) 2 GB (Physical)
    HARD DRIVE 500 GB
    MEDIA WIDTH

    Cut Sheet - 8"- 44"
    Roll Feed - 8" - 44"
    MEDIA THICKNESS 0.07-0.8mm (2.8-31.4mil)
    Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)
    MAX. ROLL PRINT LENGTH Roll Feed - 59' (18 meters)2
    MAX. MEDIA ROLL DIAMETER 6.7" (170mm)
    BORDERLESS PRINTING WIDTH (ROLL MEDIA ONLY)

    8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36", 42”, 44”
    B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm), B0 (40.55”/1030 mm)
    PAPER-FEED METHOD

    Roll Feed: One Roll, Front-loading, Front Output
    Front Loading Manual Feed: One Roll, Front Output
    LANGUAGES SGRaster, HPGL/2, HP-RTL, PDF, JPEG
    NOISE LEVEL (APPROX.)

    Operation: 51 dB (A) or less
    Standby: 35 dB (A) or less
    Acoustic Power: 6.9 Bels or less
    PHYSICAL DIMENSIONS 46.0“ x 62.7“ x 46.8“ (Main unit and TX Stacker)
    WEIGHT approx.277 lbs (roll holder included, no inks, no print heads)
    POWER SOURCE AC-100-240V (50-60Hz)
    POWER CONSUMPTION

    Maximum: 107W or less
    Standby 3.6W or less
    Power Off: 0.3W or less (Compliant with Executive Order)
    OPERATING ENVIRONMENT TEMPERATURE

    59°-86° F (15°-30° C)
    Relative Humidity: 10-80% (No Condensation)
    USER-REPLACEABLE ITEMS

    Print Head (PF-06)
    Maintenance Cartridge (MC-30)
    Ink Tanks (PFI-110/PFI-310/PFI-710)
    SOFTWARE INCLUDED TX Unified Printer Driver8, Accounting Manager, Canon Print Service, Device Management Console, Direct Print & Share2, Free Layout Tool, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview), Optimized Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox
