Specifications
Printing modes:
62 m²/hr - Max Speed (2-pass)
34 m²/hr - Production (4-pass)
22 m²/hr - Quality (6-pass)
17 m²/hr - High Quality (8-pass)
665 ft²/hr - Max Speed (2-pass)
365 ft²/hr - Production (4-pass)
235 ft²/hr - Quality (6-pass)
185 ft²/hr - High Quality (8-pass)
Print resolution: Up to 1200 x 1200 dpi
Ink types: HP Dye Sub Inks
Ink cartridges: 4 (cyan, magenta, yellow, black)
Cartridge size: 775 ml
Printheads: 4 HP Thermal Inkjet (2 cyan/black, 2 magenta/yellow)
Long-term print-to-print repeatability: Average <= 1 dE2000, 95% of colors <= 1.5 dE2000
Media
Handling: Roll feed, take-up reel, automatic cutter (for transfer media)
Media types: Sublimation transfer papers, sublimation polyester fabrics, sublimation film
Roll size: 580 to 1625-mm rolls (23 to 64-in rolls)
Roll weight: 42 kg (92.6 lb)
Roll diameter: 250 mm (9.8 in)
Thickness: Up to 0.5 mm (Up to 19.7 mil)
Applications
Interior decoration; Fashion; Sportswear; Soft signage
Connectivity
Interfaces: Gigabit Ethernet (1000Base-T)
Dimensions (w x d x h)
Printer: 2560 x 710 x 1380 mm (101 x 28 x 54 in)
Shipping: 2836 x 760 x 1248 mm (1116 x 30 x 49 in)
Weight
Printer: 171 kg (377 lb)
Shipping: 280 kg (617 lb)
Environmental ranges
Operating temperature: 15 to 30ºC (59 to 86ºF)
Operating humidity: 20 to 80% RH (non-condensing)
Acoustics
Sound pressure: 53 dB(A) (operating); 38 dB(A) (idle); < 16 dB(A) (sleep);
Sound power: 7.1 B(A) (operating); 5.7 B(A) (idle); < 3.5 B(A) (sleep);
Power
Consumption: 1 kW (printing); 80 W (ready); < 2 W (sleep)
Requirements: Input voltage (auto ranging) 200-240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); one power cord; 13 A max
Certification
Safety: IEC 60950-1+A1+A2 compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 compliant); Russia, Belarus, and Kazakhstan (EAC); Ukraïne (UA); Argentina (IRAM)
Electromagnetic: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC)
Environmental: ENERGY STAR®; WEEE; EU RoHS; China RoHS; RoHS Korea; RoHS India; RoHS Ukraine; RoHS Turkey; REACH; EPEAT; OSHA; CE marking compliant

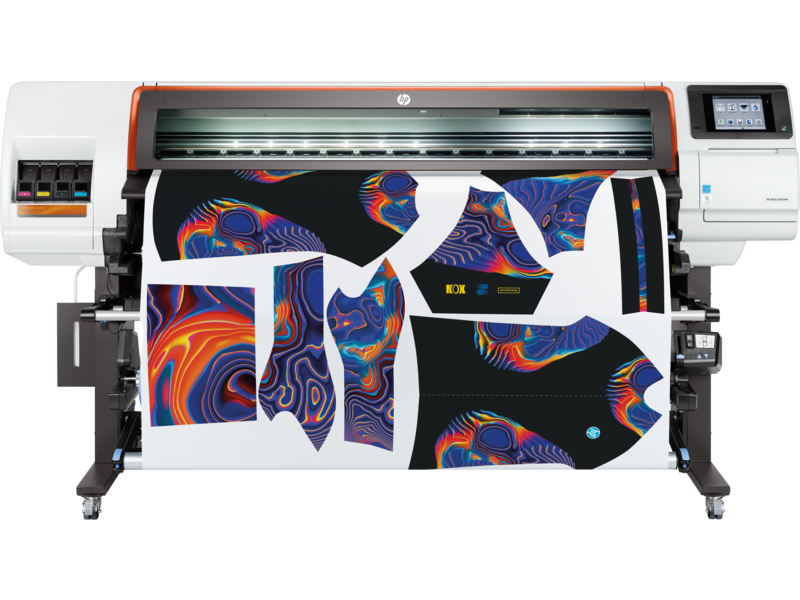

HP STITCH S300 64-in Printer
• Manage color easily with HP SmartColor
• A complete end-to-end solution, from RIP to HP media.
• Print on both transfer paper and direct-to-fabric.
• First 100% front operating dye-sub printer.
A new way to save time and money
Print from one single device on both transfer paper and direct-to-fabric. Save time by eliminating manual interventions with automatic printhead maintenance and cut your media costs by managing low grammage papers with confidence.
Color made fast and easy
Experience how HP SmartColor gives you predictable color faster and easier than ever before. Now, you can download or create your own color profiles in less than an hour and automatically get the closest visual color match when a PANTONE® color is out of your gamut.
A smarter approach to textile printing
Dye sublimation printing is now more reliable and predictable than ever. Automatically detect and compensate up to 30% nozzles out,4 prevent future failures with HP Smart Services and solve technical problems anytime, anywhere, with HP PrintOS cloud-based technology.
