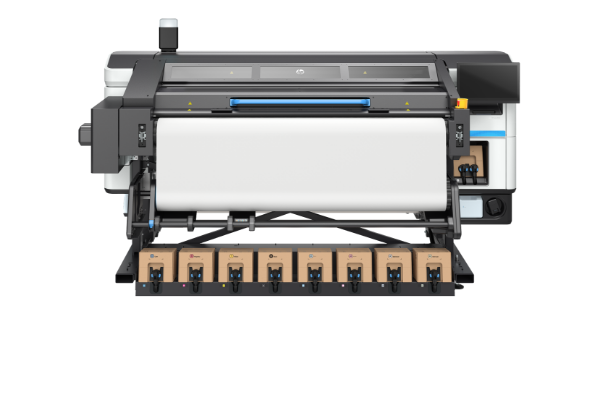

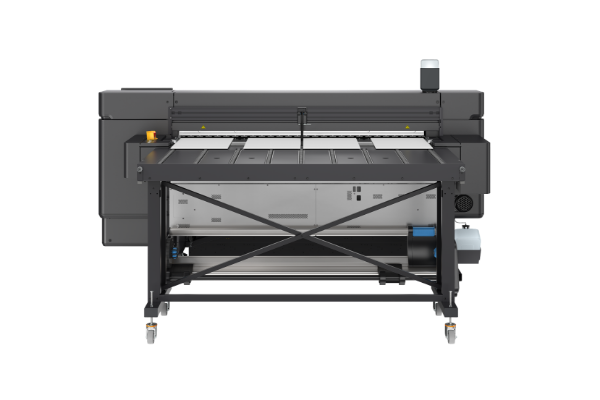

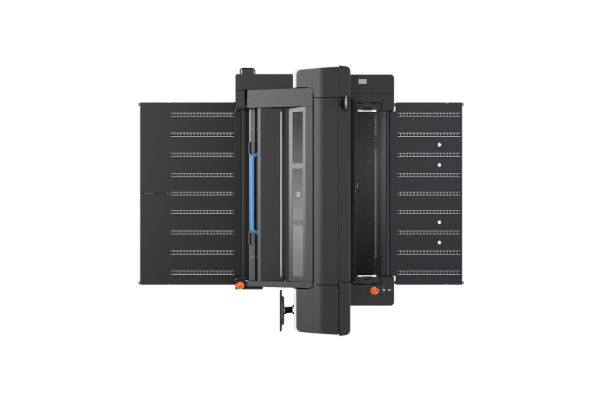

HP Latex R530 64" Flatbed Printer - 69G27H
Original price
$94,099.00
-
Original price
$94,099.00
Original price
$94,099.00
$94,099.00
-
$94,099.00
Current price
$94,099.00
Key Features
- Flatbed & Roll-to-Roll Printing – Handles rigid and flexible media with ease.
- Compact & Space-Saving – Up to 50% smaller, fits 63” doorways, runs on 220V power.
- Most Opaque White Ink – Zero waste, removable print heads, no clogging.
- 30% Larger Color Gamut – HP Gen 4 water-based latex inks for vibrant, durable prints.
- Fast Printing – Up to 8 full 4x8 boards/hr and 334 ft²/hr roll-to-roll.
- Automatic Maintenance & User-Replaceable Print Heads – Reliable performance, day-one image quality.
- Seamless Roll-to-Roll Capability – Easy loading/unloading, perfect for banners, wraps, and stickers
Technical Specifications
Acoustic Pressure Emissions: 65 dB(A) (operating)
Connectivity, Standard: Gigabit Ethernet (1000Base-T)
Dimensions (W x D x H): 103.5 x 68.1 x 60.9 in (without tables); 103.5 x 126 x 60.9 in (with tables)
Electromagnetic Compatibility: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Korea (KCC)
Environmental Certification: WEEE, RoHS (EU, EAEU, China, Korea, India, Ukraine, Turkey), REACH, OSHA, CE marking compliant, Meets AgBB criteria, French VOC A+, UL GREENGUARD Gold, UL ECOLOGO
Finished Output Handling: Flatbed, sheet feed, roll feed, vacuum belt media drive for easy loading and accurate media advance
Functions: Print
Ink Types: Water-based HP Latex Inks
Material Type for item: FERT
Media Sizes Standard (sheets, rolls): 18 to 64 in
Media sizes, custom: 11.7 x 16.5 in to 63.6 x 60 in (up to 63.6 x 236 in with two sets of optional extension tables)
Media Thickness: Up to 2 in
Media Types
Rigid substrates: paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminum composite panel, wood, glass, ceramic; Roll substrates: PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non porous), canvas, leather
Media width, maximum: 64 in
Model Size: 64 in
Operating Area: Rigid printing: 185 x 170.5 in; Flexible only: 148 x 170.5 in
Operating Humidity Range: 20 to 80% RH (non-condensing)
Operating Temperature Range: 59 to 86°F
Package Dimensions (W x D x H): 115.4 x 87.6 x 69.1 in
Package Weight: 2,769 lb
Power: Input voltage (auto ranging) 200-240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); two power cords; 16 A max per power cord
Power Consumption: 2.5-4 kW (5 kW peak) (printing), 130 W (ready)
Print Cartridges/Bottle, Color(s): Black, cyan, light cyan, light magenta, magenta, yellow, white, HP Latex Optimizer, HP Latex Overcoat
Print Cartridges/Bottle, Number: 9 (black, cyan, light cyan, light magenta, magenta, yellow, white, HP Latex Optimizer, HP Latex Overcoat) cartridges
Print Heads: 10 (2 cyan/black, 2 magenta/yellow, 2 light cyan/light magenta, 2 white, 1 HP Latex Optimizer, 1 HP Latex Overcoat)
Print quality color (best): Up to 1200 x 600 dpi
Print Speed: 334 ft²/h - Draft (4 pass); 258 ft²/h - Fast (6 pass); 167 ft²/h - Standard (12-pass); 124 ft²/h - Quality(16 pass); 99 ft²/h - White Spot (100%); 67 ft²/h - White Overflood (100%); 45 ft²/h - White Underflood (100%); 33 ft²/h - White Underflood (160%); 22 ft²/h - 3 Layers; 14 ft²/h - 5 layers[1]
Print Technology: Ink
Print Technology: HP Latex Printing Technologies
Recommended Media
HP Recycled Removable Adhesive Fabric, 3-in Core (Latex/solvent)[2]; HP PVC-free Blockout Banner (REACH compliant[4]); HP 13-oz Prime Gloss Banner; HP Prime Gloss Air GP (REACH compliant[4]); HP Photo-realistic Paper (FSC® certified[3], REACH compliant[4]); HP Premium Poster Paper (FSC® certified[3], REACH compliant[4]); HP Matte Polymeric Overlaminate (REACH compliant[4])[5]
Registration Required: No
Roll External Diameter: Up to 9.8 in
Roll Maximum Input: 1
Roll Maximum Weight: Up to 121 lb
Safety: IEC 62368-1 compliant; United States and Canada (CSA listed); EU (MD compliant, EN12100, EN60204-1, and EN1010-1); Ukraine (UA)
Supported Primary Applications: Signage: indoor, outdoor, flat, backlit, thermoformed; Decoration: wall coverings, window decoration; Vehicle decoration: fleet graphics, wraps, decals; Textile: soft signage, frontlit, backlit; POS and Packaging: corrugated displays, short-run customized packaging, prototyping
Weight: 1455 lb (without tables)
