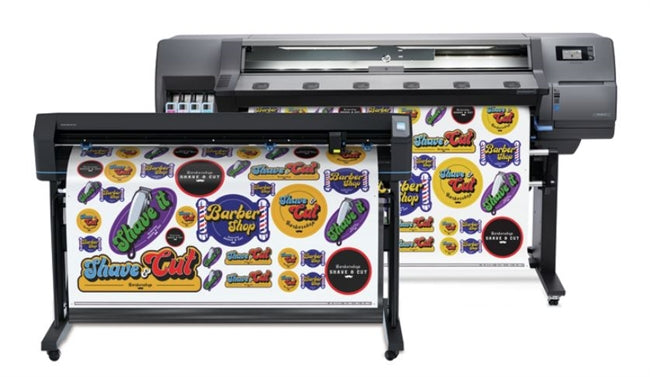

HP Latex 115 54" Print & Cut Plus Solution - 9TL96A

$12,799.00
$12,799.00
Shipping calculated at checkout.
    HP Latex 115 54" Print & Cut Plus Solution - 9TL96A

    Tech Specs

    Description

    The HP Latex 115 Print and Cut Solution will allow you to double your speed and save more time. Using the software, HP Signage Suite, you will be able to produce more applications with out any design skills needed.

    Specifications



    Print speed
    517 ft²/hr - Billboard (2 pass); 174 ft²/hr - Outdoor Plus (6 pass); 129 ft²/hr - Indoor Quality (8 pass); 108 ft²/hr - Indoor High Quality (10 pass); 65 ft²/hr - Backlits, Textiles, and Canvas (16 pass); 54 ft²/hr - High Saturation Textiles (20 pass)
    Print quality color (best)
    Up to 1200 x 1200 dpi
    Print technology
    HP Latex Printing Technologies
    Ink types
    • HP Latex Inks
    Number of print cartridges
    7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
    Print heads
    • 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)
    Print head nozzles
    2112
    Print repeatability
    Average ? 1 dE2000, 95% of colors ? 2 dE2000
    (The color variation inside a printed job has been measured at 10 pass mode on vinyl media within this limit: maximum color difference (95% of colors) ? 2 dE2000. Reflective measurements on a 943 color target under CIE standard illuminant D50, and according to the standard CIEDE2000 as per CIE Draft Standard DS 014-6/E:2012. 5% of colors may experience variations above 2 dE2000. Backlit substrates measured in transmission mode may yield different results.)

    Media

    Finished output handling
    • Roll feed
    • take-up reel (optional)
    • automatic cutter (for vinyl, paper-based media, backlit polyester film)
    Media types
    • Banners
    • self-adhesive vinyls
    • films
    • papers
    • wallcoverings
    • canvas
    • synthetics
    • (fabrics
    • mesh
    • textiles and any other porous materials require a liner)
    Non-printable area (roll media)
    0.2 x 0.2 x 0.2 x 0.2 in
    Roll maximum input
    1
    Media width, maximum
    54 in
    Roll maximum weight
    55 lb
    Roll external diameter
    7.1 in
    Media thickness
    Up to 19.7 mil

    Dimensions and weight

    Minimum dimensions (W x D x H)
    Printer: 91 x 33 x 54 in; Cutter: 68.9 x 26.8 x 45.1 in
    Package dimensions (W x D x H)
    Printer: 100.5 x 30 x 49.5 in; Cutter: 74 x 18.9 x 26.4 in
    Weight
    Printer: 384 lb; Cutter: 106 lb

    Environmental ranges

    Operating temperature range
    Printer: 59 to 86ºF; Cutter: 59 to 95ºF
    Operating humidity range
    Printer: 20 to 80% RH (non-condensing); Cutter: 35 to 75% RH (non-condensing)

    Acoustic

    Acoustic pressure emissions
    Printer: 54 dB(A); Cutter: 56 dB(A)
    Acoustic pressure emissions (standby)
    Printer: 38 dB(A)
    Acoustic power emissions (active, printing)
    Printer: 7.2 B(A); Cutter: 7.0 B(A)
    Acoustic power emissions (standby)
    Printer: 5.5 B(A)

    Power

    Print speed
    Printer: 2.2 kW (printing)
    70 W (ready)
    < 2.5 W (sleep)
    Cutter: 31 W (working mode)
