Tech Specs
Description

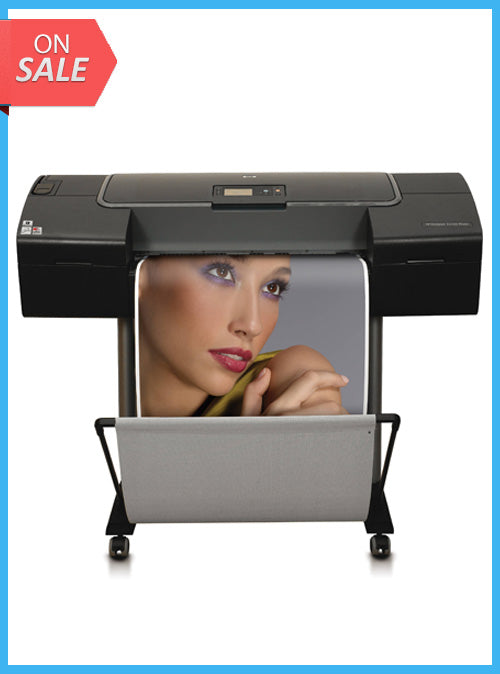

The HP 8-ink Designjet delivers superior color accuracy & consistency with the first-ever embedded spectrophotometer with i1 Color Technology. HP Photo Inks produce vivid color and b&w prints. Count on HP for printing that's easy and reliable.
Pre-press professionals, designers and photographers that need to produce large-format, color and black and white photo prints.
Produce exquisite color and black-and-white results with superior color accuracy and consistency.
Technical Specifications
Functions
Resolution (black)
Up to 2400 x 1200 optimized dpi
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
8 (cyan, magenta, yellow, light cyan, light gray, light magenta, matte black, photo black)
Replacement cartridges
HP 70 Matte Black Cartridge (130 ml), HP 70 Photo Black Cartridge (130 ml), HP 70 Light Gray Cartridge (130 ml), HP 70 Cyan Cartridge (130 ml), HP 70 Magenta Cartridge (130 ml), HP 70 Yellow Cartridge (130 ml), HP 70 Light Magenta Cartridge (130 ml)
Compatible ink types
Pigment-based
Print languages
HP PCL 3 GUI
Connectivity, standard
Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect accessory slot
Connectivity, optional
HP Jetdirect EIO print servers
Network ready
Standard
Ports
1 LAN, 1 USB, 1 EIO
Minimum system requirements
Microsoft® Windows® 2000/XP: Pentium IV, 1 GHz, 1 GB RAM, 2 GB available hard disk space
Compatible operating systems
Microsoft® Windows® 7 Ultimate/Professional/Home Premium, Windows Vista® Ultimate/Business/Home Premium, Windows® XP (32-bit, 64-bit) Professional/Home, Windows® Server 2008 (32-bit, 64-bit), Windows® Server 2008 R2, Windows® Server 2003 (32-bit, 64-bit); Mac OS X v 10.4, v 10.5, v 10.6, v 10.7; Citrix XenApp; Citrix XenServer
Memory, standard
128 MB
Memory, maximum
128 MB
Printer management
HP Web Jetadmin
Embedded web server
Yes
Browser supported
Internet Explorer 5.0 and higher, Netscape 6.0.1 and higher, Safari for MacOS 10.3 and higher, Mozilla 1.5 and higher
Hard disk
Standard, 80 GB
Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in
Guaranteed minimum line width
0.002 in (ISO/IEC 13660:2001(E))
Line accuracy
±0.2%
Color stability
< 1 dE2000 in less than 5 minutes
Print repeatability
Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Maximum optical density (black)
4 L* min/2.5 D
Finished output handling
Sheet feed; roll feed; media bin (NA, LAR, EMEA); automatic cutter (cuts all media except canvas)
Media sizes supported
A, B, C, D
Media sizes supported
A4; A3; A2; A1
Media sizes, custom
8.3 x 11 to 24 x 66 in
Media types
Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, film, backlit, fabric/textile
Recommended media weight
133 lb
Media sizes, standard
8.3 to 24-in wide sheets; 11 to 24-in rolls
Roll maximum output
300 ft
Roll external diameter
5.3 in
Media thickness
Up to 31.5 mil
Power
Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60Hz (+/- 3 Hz), 2 A maximum
Power consumption
200 watts (printing), 0 watts (off)
Energy efficiency
ENERGY STAR® qualified
Operating temperature range
41 to 104ºF
Operating humidity range
20 to 80% RH
Mechanical print time, US D color image, best mode, glossy
15 min/page
Mechanical print time, US D color image, normal mode, glossy
7.9 min/page
FCC
FCC Class A emissions - for use in commercial environments, not residential environments
Software included
Printer drivers, HP Printer Utility including HP Color Center
Dimensions (W X D X H)
49.7 x 27.2 x 41.2 in
Weight
143 lb
Package weight
