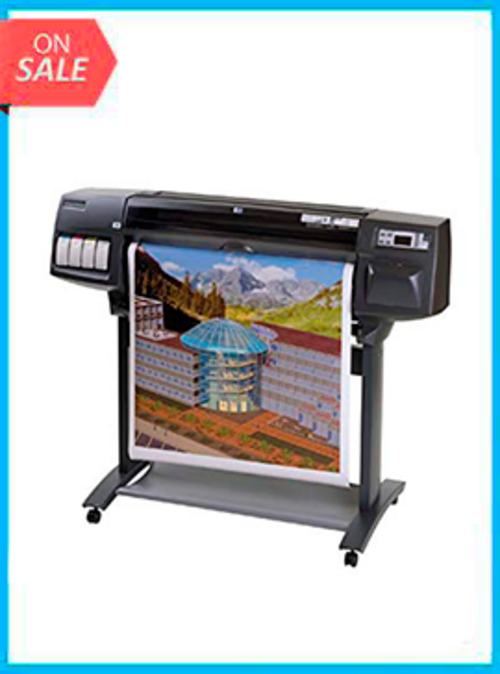

    HP Designjet 1055CM 36" Printer - C6075A

    Tech Specs

    IMPORTANT: This printer does not include warranty and it does not come with any supplies.

    Product description

    The HP Designjet 1055CM printer is a high-performance, high-speed, 36-inch, large-format printer using thermal Inkjet technology. Its new ink system (printhead + printhead cleaner + ink cartridges) provides 600 dpi and 350/175 cc of ink in a continuous refill system.

    HP Jetdirect card

    The 1055CM printer has HP Jetdirect 600 N 10/100 TX (J3113A) installed.

    Product features

    • Three times faster print speed (over the HP Designjet 750C+ printer).
    • Three times "click-to-clunk" overall throughput improvement (over the HP Designjet 750C+ printer).
    • True 600-dpi output for crisper text, finer lines, and improved image resolution.
    • Addressable 1200-dpi mono resolution.
    • Network-ready.
    • 1 GB hard disk drive.
    • Increased ink unattendedness with 350 cc/175 cc (CMY) and 350 cc (K) off-axis ink cartridges.
    • Long-life printheads.
    • Increased paper unattendedness with 300 ft HP bright white paper jumbo rolls.
    • Improved ink-level sensing (low-ink and overnight printing indicator).
    • Ability to load cut-sheet without manually unloading roll paper.
    • Support for thin paper (Asian tracing paper).
    • Glossy paper support.
    • HP-GL, HP-GL/2, and HP RTL languages supported.
    • VarWare support.
    • New Front panel for improved ease of use.
    • EDO slots for RAM DIMMS (16, 32, 64 MB).
    • Parallel connector; one serial connector.
    • HP Designjet PostScript (R) drivers for Macintosh (QuickDraw) shipped in the box.
    • HP Designjet PostScript drivers for Microsoft (R) Windows applications shipped in the box.
    • AutoCAD drivers shipped in the box.
    • Built-in Adobe (R) PostScript Level 3 Raster Image Processor.
    • Automatic color calibration to improve color consistency between jobs.
    • Ink emulation, allowing the printer to print jobs intended for devices using standard pre-press color gamuts.
    • PostScript queuing and nesting to reduce paper waste.
    • Large and very complex PostScript file printing.

    System requirements

    • Windows 9x
    • Windows 3x
    • Windows NT
    • Macintosh
      Or
    • UNIX (R)

    Connectivity

    • Industry-standard HP-GL, HP-GL/2, and HP-RTL languages supported
    • Built-in Adobe PostScript Level III
    • Network ready (100Base-T)
    • HP Jetdirect print server (a network interface card) for LAN connections
    • 2 EDO Slots for RAM DIMMS up to 128 MB
    • 1 Parallel connector; 1 Serial connector
    • AutoCAD (Windows 3x, 9x, and Windows NT drivers shipped in the box)

    Fonts

    The fonts print shows all resident PostScript fonts (internal and downloaded) with a printed sample of each font.
    NOTE:
    Asian versions ship with Asian fonts preloaded on the hard disk drive.

    Media specifications

    Roll paper

    Characteristic
    Specification
    Paper length:
    All film types
    Heavyweight coated paper
    91.4 m (300 feet)
    38 m (125 feet)
    30.5 m (100 feet)
    Maximum outside diameter of roll
    99 mm (3.9 inches) across any diameter
    Inside core diameter
    50.8 mm (2 inches)
    Roll Widths
    610 mm (24 inches) and
    914 mm (36 inches)
    Side margins (normal)
    5 mm (0.20 inches)
    Side margins (extended)
    15 mm (0.59 inches)
    Leading edge
    12 mm (0.47 inches)
    Trailing edge
    5 mm (0.20 inches)

    Sheet paper

    The HP Designjet 1050C printer accommodates all standard and odd paper sizes. The width ranges from 210 mm to 917 mm (8.3 to 36.1 inches). The maximum sheet length is 1600 mm (63 inches).

    Media types

    • HP bright white Inkjet paper
    • HP translucent bond
    • HP vellum
    • HP natural tracing paper
    • HP clear film
    • HP matte film
    • HP heavyweight coated paper

    Margins roll/sheet

    Specification
    Side margins
    Leading edge margin
    Trailing edge margin
    Roll
    (normal)
    5 mm
    (0.20 inches)
    12 mm
    (0.47 inches)
    5 mm
    (0.20 inches)
    Sheet
    (normal)
    5 mm
    (0.20 inches)
    12 mm
    (0.47 inches)
    15 mm
    (0.59 inches)
    Roll
    (extended)
    15 mm
    (0.59 inches)
    12 mm
    (0.47 inches)
    5 mm
    (0.20 inches)
    Sheet
    (extended)
    15 mm
    (0.59 inches)
    12 mm
    (0.47 inches)
    15 mm
    (0.59 inches)

    Part numbers for the HP80 Ink Supplies are listed in the table below.
    Description
    Part number
    Black printhead/printhead cleaner
    C4820A
    Cyan printhead/printhead cleaner
    C4821A
    Magenta printhead/printhead cleaner
    C4822A
    Yellow printhead/printhead cleaner
    C4823A
    Ink cartridge black 350 cc
    C4871A
    Ink Cartridge cyan 350 cc
    C4846A
    Ink Cartridge magenta 350 cc
    C4847A
    Ink Cartridge yellow 350 cc
    C4848A
    Ink Cartridge cyan 175 cc
    C4872A
    Ink Cartridge magenta 175 cc
    C4874A
    Ink Cartridge yellow 175 cc
    C4873A

    Memory

    The 1055CM printer comes with a 2.1 GB hard disk drive and 32 MB of memory. You can expand the memory up to 128 MB by adding additional 16 MB, 32 MB, or 64 MB memory expansion modules.

    Performance/print quality

    Print quality
    Print resolution
    Fast
    300 x 300 dpi
    Normal
    600 x 600 dpi
    Best
    Color prints:
    600 x 600 dpi
    Grayscale prints:
    1200 x 600 dpi

    Print Speed

    Quality
    Size
    Mono speed
    Color speed
    Normal
    2 x 3 ft
    (609 x 914 mm)
    1:20
    2:00
    Best
    2 x 3 ft
    (609 x 914 mm)
    2:15
    4:00

    Accuracy

    0.38 mm (0.015 inches) or 0.2 percent of the specified vector length, whichever is greater, at 23 degrees C (73 degrees F), 50 to 60percent relative humidity on HP special polyester film

    Programming languages supported

    • CALS
    • HP-GL
    • HP-GL/2 (with Kanji Level 1 and 2 character sets)
    • HP-RTL (with color extensions)
    • PJL, PML
    • Adobe PostScript Level 3 (supports Asian languages)
    • VarWare

    Reliability

    Feature
    Description
    Reliability
    35 percent Annualized Failure Rate (AFR)
    Duty cycle
    14.77 square meters (159 sq. feet) per day

    Physical specifications

    Feature
    Description
    Weight
    Without stand:
    59 kg (130 pounds)
    With stand:
    81 kg (178 pounds)
    Length
    1566 mm (61.7 inches)
    Depth
    675 mm (26.6 inches)
    Height
    1290 mm (50.8 inches)

    Electrical specifications

    Feature
    Description
    Source
    100 to 240 volts AC +/- 10 percent auto ranging
    Frequency
    50 to 60 Hz
    Current
    Three amp maximum
    Consumption
    200 watts maximum
    Energy Star Rating (USA)
    Maximum power in ideal state: 45 watts

    Environmental specifications

    NOTE:
    If the printer temperature falls below the minimum specified operating temperature the printer may stop to protect the ink systems.

    At 3000 meters altitude, the printer may have operational problems.
    Condition
    Description

    Operating Range
    Printing:
    15 to 35 degrees C (59 to 95 degrees F)
    at 20 to 80% relative humidity
    Optimal print quality:
    22 to 26 degrees C (72 to 79 degrees F)
    at 30 to 60% relative humidity
    Acceptable print quality:
    15 to 30 degrees C (59 to 86 degrees F) at 20-80% relative humidity
    Storage
    Printer:
    -40 to 70 degrees C (-40 to 158 degrees F)
    Packed system:
    -40 to 60 degrees C (-40 to 140 degrees F)

    Acoustic specifications

    Feature
    Specification
    Operating sound pressure
    54 dB (From a one-meter, bystander position)
    Idle sound pressure
    Less than 30 dB (A) (From a one-meter, bystander position)
    Operating sound power
    6.5 Bels (A)
    Idle sound power
    Less than 4.3 Bels (A)
