Epson i1600-E1 Printhead

$905.33
$905.33
Shipping calculated at checkout.
    Epson i1600-E1 Printhead
    Epson i1600-E1 Printhead
    Epson i1600-E1 Printhead
    Epson i1600-E1 Printhead

    Tech Specs

    Description

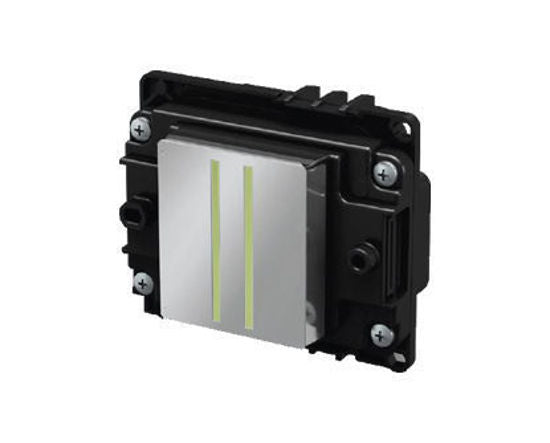

    The Epson i1600-E1 1.33 inch-wide MEMs printhead provides high productivity and high image quality with 600dpi high-density resolution. This printhead is compatible with ecosolvent inks. It is unlocked and should fit most i1600-E1 based printers. We recommend to change the head cables when installing a new printhead.

    Warranty: due to the nature of DTF inks, we cannot accept returns, exchanges or refunds once the printhead has been installed. All sales are final.


    Specifications:

    • Ink Type : Eco-solvent
    • Type : PrecisionCore MicroTFP printhead

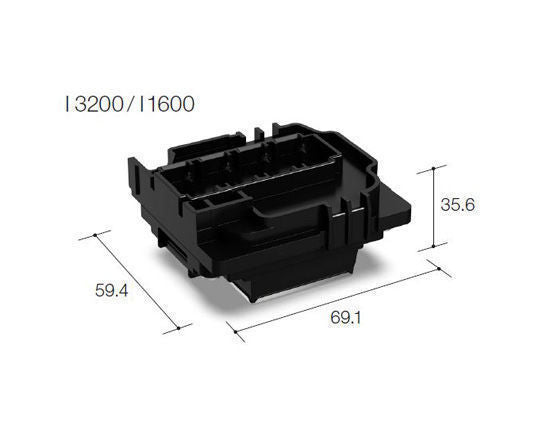

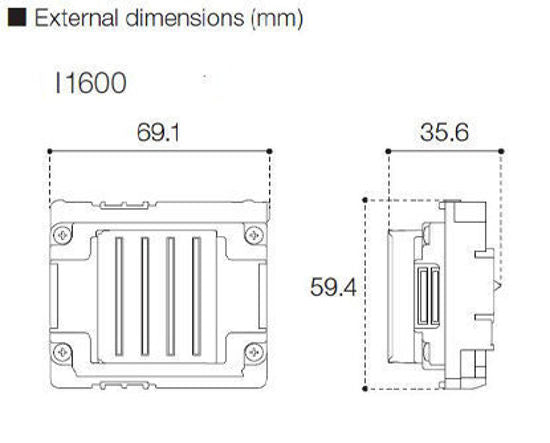

    • Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
    • Weight : 80g
    • Number of nozzle : 1600

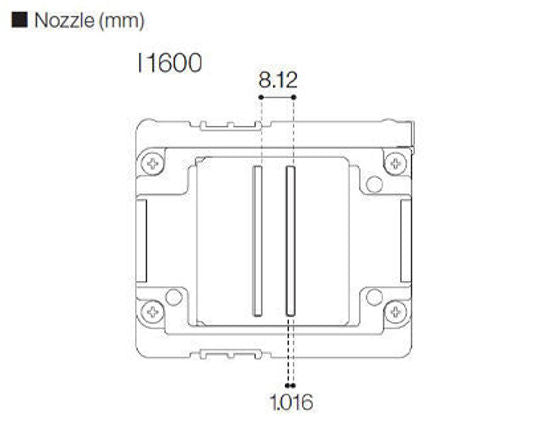

    • Nozzle pitch/nozzle row : 1/300 inch
    • Nozzle rows: 4 rows
    • Nozzle Resolution : 300 noi/row 600 npi/2 rows
    • Max. number of colour inks : 4 colours
    • Effective print width : 33.8 mm (1.33 inches)
    • Droplet ejection performance :
      Binary : 5pl at43.2kHz
      3 levels grey scale : 6, 12.5 pl at 21.6 kHz
      4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz
    • Viscosity range : 5-7 mPa･s
    • Positioning mechanism: Reference hole
