EFI ASSY, PRINTHEAD,GEN 5,POSITION A/B, H3/H5 - 45163642 / 45209015 / N221414B

$5,181.12
$5,181.12
Shipping calculated at checkout.
    EFI ASSY, PRINTHEAD,GEN 5,POSITION A/B, H3/H5 - 45163642 / 45209015 / N221414B
    EFI ASSY, PRINTHEAD,GEN 5,POSITION A/B, H3/H5 - 45163642 / 45209015 / N221414B
    EFI ASSY, PRINTHEAD,GEN 5,POSITION A/B, H3/H5 - 45163642 / 45209015 / N221414B

    Tech Specs

    Description

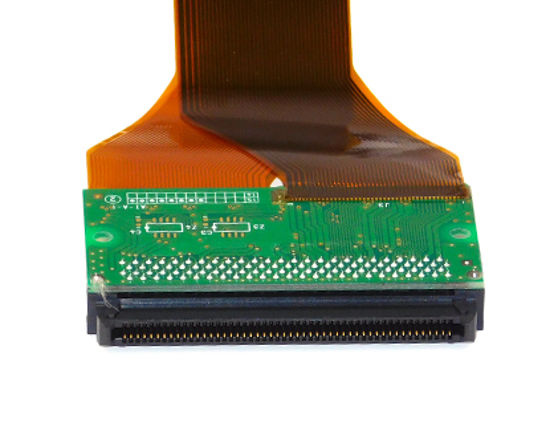

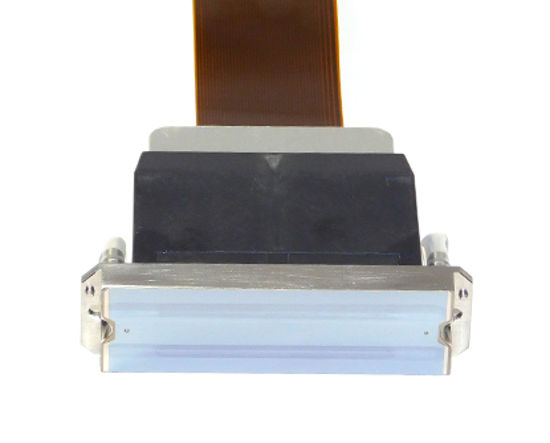

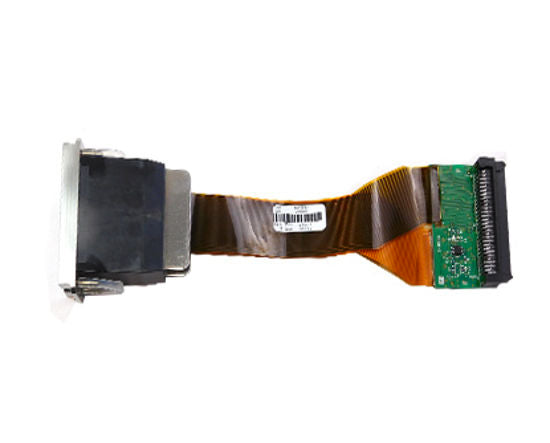

    This original EFI printhead (EFI part number 45163642 / 45209015, Ricoh part number N221414B) is suitable for a range of EFI printers. This printhead is 310mm long in total (head body + cable + connectors). The head cable is 240mm long.

    We recommend to change the head cables when installing a new printhead.

    Technical Specifications

    • Dimensions: 89 x 25 x 69 mm (excluding cables)
    • Head materials: SST, Nickel alloy and Epoxy Adhesive
    • Nozzle plate surface: Coated SST
    • Number of nozzles: 4 x 320 nozzles
    • Nozzle spacing: 0.1693 mm
    • Nozzle density: up to 600 npi
    • Piezo type: D33 Stacked PZT
    • Temperature control: Integrated Heater and Thermistor
    • Operator temperature range: Up to 80° C
    • Native drop volume: 7 pl
    • Drop volume range: 7 - 35 pl
    • Drop velocity: 7 m/s
    • Jetting frequency: Up to 60 kHZ
    • Ink compatibility: UV Inks
    • Life: 100 billion actuations per nozzle

    Printer compatibility

    • EFI Vutek 5R
    • EFI Vutek 5r+

    • Efi Vutek H3
    • Efi Vutek H5

    • Quantum Matan 5m
