• Kyocera Inkjet Printhead KJ4B-0300 - Standard
1 1

Wide Image Solutions

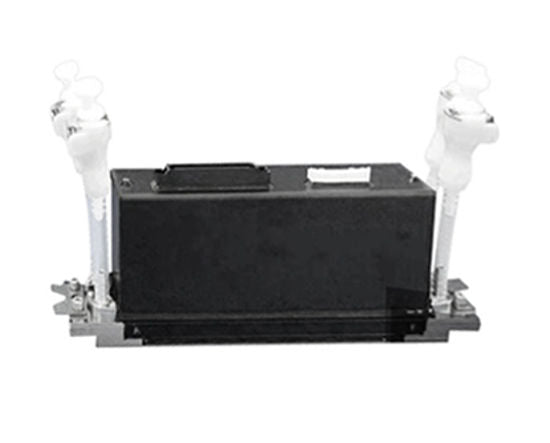

Kyocera Inkjet Printhead KJ4B-0300 - Standard

$4,076.06
$4,076.06
Shipping calculated at checkout.
    Kyocera Inkjet Printhead KJ4B-0300 - Standard

    Tech Specs

    Description

    This Kyocera KJ4B-0300 is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. We recommend to change the head cables when installing a new printhead.

    The Kyocera KJ4B-0300printhead is available in 3 different models:

    • Standard for all printers other than MS and EFI Reggiani
    • MS printers including the head cable
    • EFI Reggiani printers including the head cable

    Please select the printhead model carefully as they are not interchangeable.

    Specifications
    • Ink Type:  Aqueous Ink
    • Dimensions: 200 × 36 × 68.5mm
    • Dry Weight: 540g
    • Total Nozzles:2.656
    • Standard Resolution: 300 x 300dpi
    • Print Width: 112mm
    • Max. Drive Frequency: 30kHz
    • Drop Volume: 5, 7, 12 and 18pl
    • Max. Sprint Speed: 120m/min
    • Typical ink viscosity: 5.0-6.0 mPa

    Printer compatibility

    • Atexco Ajet 3190
    • Atexco Aprint-3308B

    • EFI Reggiani BLAZE

    • Hanway Highjet 2500B

    • HOMER HM1800R

    • Printerevolution T1800
    • Printerevolution T2600
    • Printerevolution T3200

    • Roland ZT-1900

    • Sign Racer HydroSpeed+
