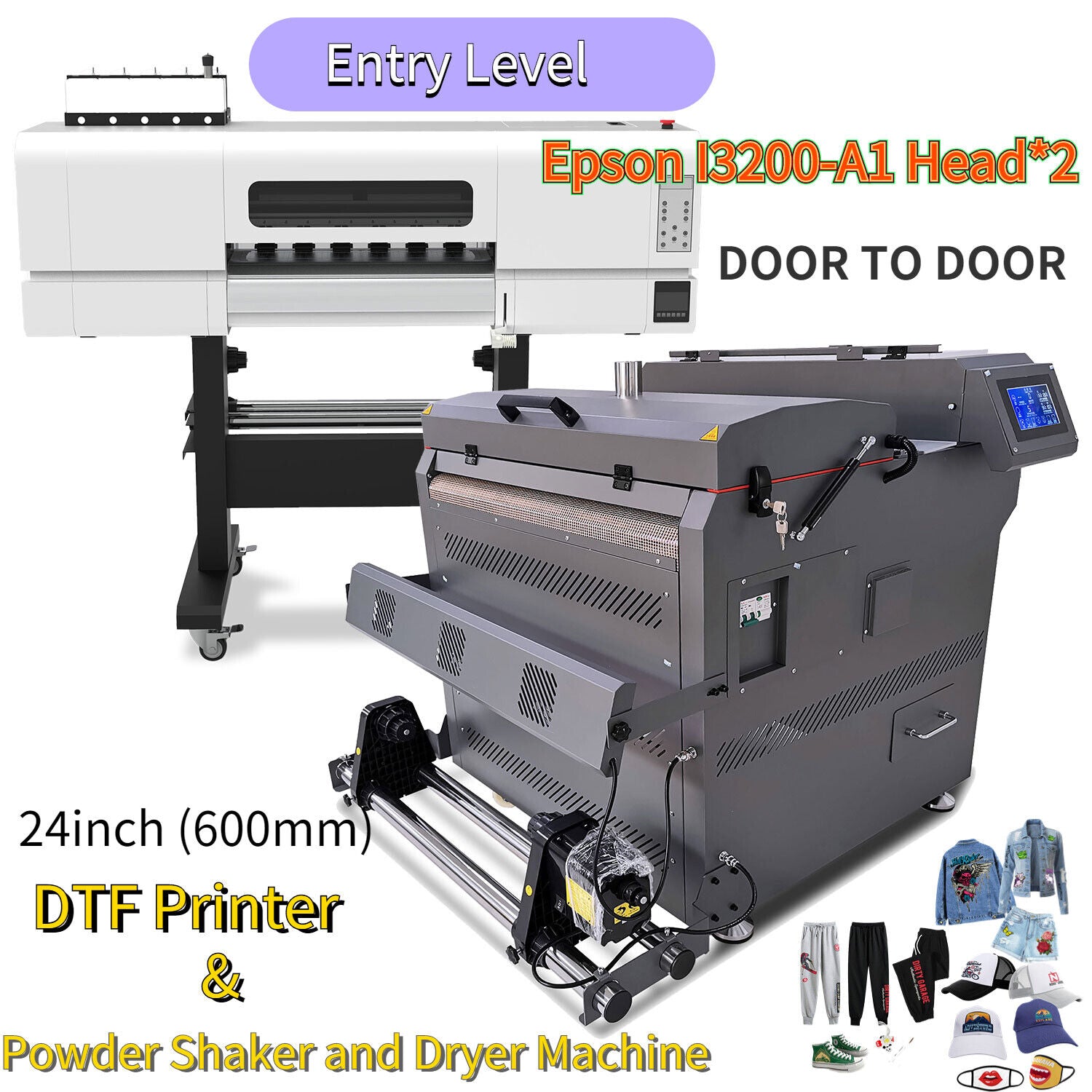

• CALCA Plus 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson i3200-A1 Printheads
1 1

Wide Image Solutions

CALCA Plus 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson i3200-A1 Printheads

$12,999.00
$12,999.00
Shipping calculated at checkout.
    CALCA Plus 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson i3200-A1 Printheads

    Tech Specs

    Specifications:

    Item Model CALCA Plus 24inch (600mm) DTF Printer
    Print head  Dual Epson i3200 Printheads (CMYK - WWWW), including 400 nozzles/row*8*lines*2, high quality up to 1800dpi
    Printing resolution/speed  4pass:12m2/hour
    6pass:8m2/hour
    8pass:6m2/hour
    Ink Sort Textile Pigment Ink
    Ink Capacity 5 Colors:1.5L*5/color
    Media Maximum Width  620mm
    Thickness 1.5mm to 6mm Adjustable
    Maximum Roll Weight  20KG
    Sort  PET Film
    High Printing Quality Three intelligent eclosion print function;VSD technology
    Media Heater Pre/Post Heater (Can be controlled separately)
    Interface Network Port
    Software Photoprint（SAI） RIP Software
    Voltage AC110V+/- 10%; AC220V+/-10%; 50/60+/HZ
    Operation Environment Temperature:20℃-35℃, Humidity:35%RH-65%RH
    Power 450W
    Dimensions of Printer (L x W x H) 1785 x 790 x 1613mm
    Height of Working Platform 1062mm
    Dimensions of Packing (L x W x H) 1880 x 970 x 740mm
    Net Weight 180KG
    Gross Weight 200KG

    CALCA 24in (600mm) Entry Level Automatic TPU Adhesive Powder Shaker and Dryer Machine
    With a touch screen display controller, simple to use.
    Infrared drying and heating improves and protects color reproduction.
    With a mesh belt platform (non-transportable, without suction function) secures the printing material to avoid bulging, run-offs, adhesion and media waste.
    CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
    With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
    This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
    Specifications:
    CALCA Brand: USA registered
    Maximum Shake Powder Width: 600mm (23.6inches)
    Functions: Shake powder control, dusting control, PID setting of curing temperature
    Heating Element: Quartz infrared heat drying tube
    Rewinding Function: Automatic induction rewinding
    Heating and Drying Mode: Front guide plate heating, upper drying curing
    Cooling Mode: 3 fun air cooling (Single raw)
    Machine Size: 35.4in x 33.1in x 42.6in (900mm x 840mm x 1082mm)
    Machine Weight: 280lbs (140kg)
    Packaging Size: 47.2in x 40.9in x 44.9in (1200mm x 1040mm x 1140mm)
    Gross Weight: 396lbs (180kg)
    Requirements:
    Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
    Current: 28A, 3000W
    With CALCA DTF film, powder and Inks, you can easily and quickly create custom t-shirts and apparel.
    Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
    Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
    Remarks:
    CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.
    Features:
    · With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
    · This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    · Infrared drying and heating improves and protects color reproduction.
    · Customized powder recycling drawer, increases effectiveness.
    · Shake powder control, dusting control, PID setting of curing temperature.
    · Automatic powder feeding, evenly spreading powder.
