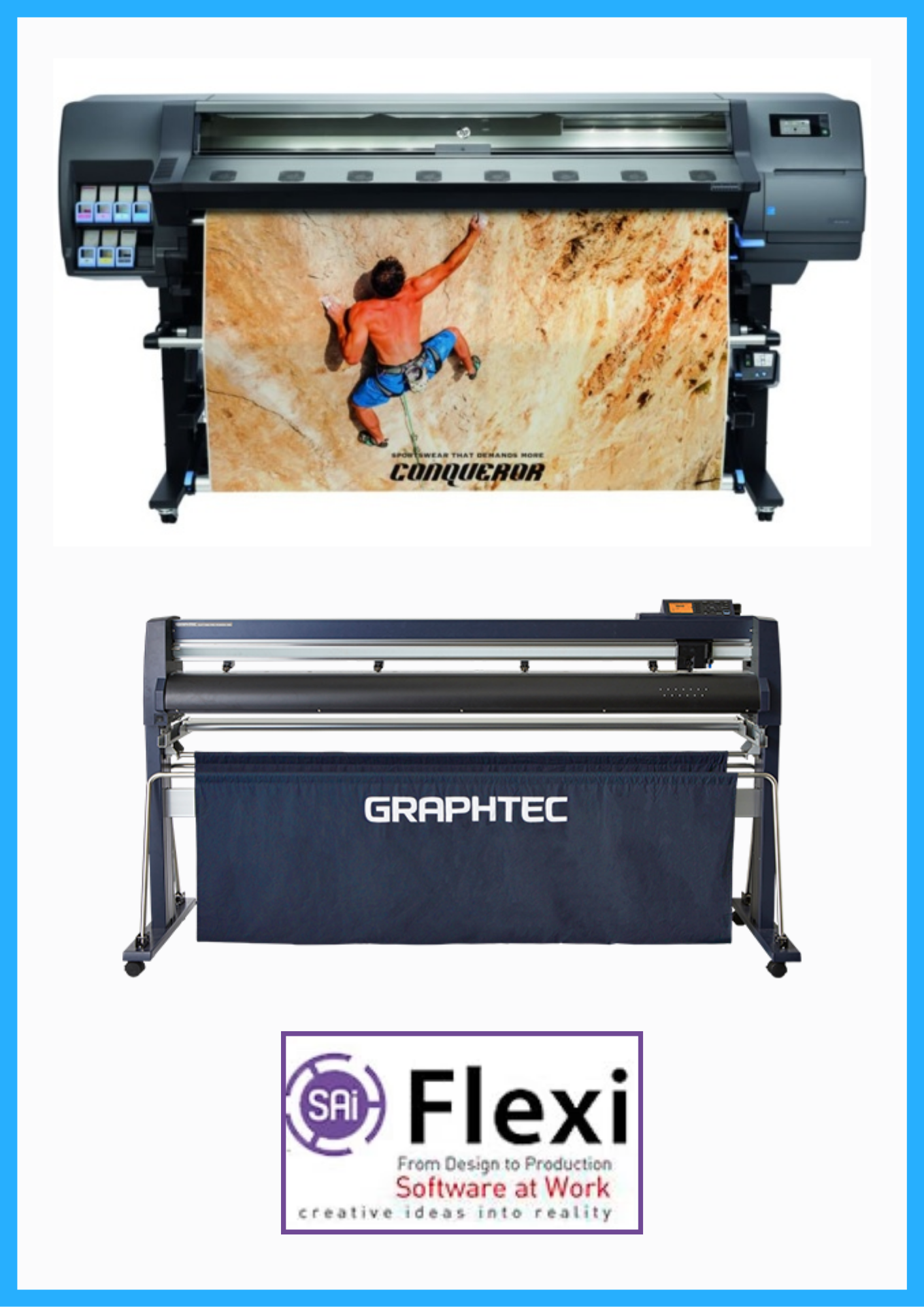

ON SALE - BUNDLE - HP Latex 335 64" Large-Format Printer - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty) + Graphtec FC9000-160 64" (162.6 cm) Wide Cutter - New + Flexi Rip Software

Print speed

538 ft²/hr - Billboard (2 pass); 248 ft²/hr - Outdoor High Speed (4 pass); 183 ft²/hr - Outdoor Plus (6 pass); 140 ft²/hr - Indoor Quality (8 pass); 108 ft²/hr - Indoor High Quality (10 pass); 65 ft²/hr - Backlits, Textiles, and Canvas (16 pass); 54 ft²/hr - High Saturation Textiles (20 pass)
(Measured at maximum print width)

Print quality color (best):

Up to 1200 x 1200 dpi

Print technology:

HP Latex Printing Technologies

Ink types:

• HP Latex Inks

Number of print cartridges:

7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)

Print heads:

• 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)

Print head nozzles:

2112

Print repeatability

Average ≤ 1 dE2000, 95% of colors ≤ 2 dE2000
(The color variation inside a printed job has been measured at 10 pass mode on vinyl media within this limit: maximum color difference (95% of colors) ≤ 2 dE2000. Reflective measurements on a 943 color target under CIE standard illuminant D50, and according to the standard CIEDE2000 as per CIE Draft Standard DS 014-6/E:2012. 5% of colors may experience variations above 2 dE2000. Backlit substrates measured in transmission mode may yield different results.)

Media

Finished output handling:

• Roll feed
• take-up reel
• automatic cutter (for vinyl, paper-based media, backlit polyester film)

Media types:

• Banners
• self-adhesive vinyls
• films
• papers
• wallcoverings
• canvas
• synthetics
• (fabrics
• mesh
• textiles and any other porous materials require a liner)

Non-printable area (roll media):

0.2 x 0.2 x 0.2 x 0.2 in

Roll maximum input:

1

Media width, maximum:

64 in

Roll maximum weight:

92.6 lb

Roll external diameter:

9.8 in

Media thickness:

Up to 19.7 mil

Dimensions and weight

Minimum dimensions (W x D x H):

Printer: 101 x 33 x 54 in; Cutter: 77.9 x 26.8 x 45.1 in

Package dimensions (W x D x H):

Printer: 110.1 x 30 x 49.3 in; Cutter: 83.1 x 18.9 x 26.4 in

Weight:

Printer: 459 lb; Cutter: 119 lb

Environmental ranges

Operating temperature range:

Printer: 59 to 86ºF; Cutter: 59 to 95ºF

Operating humidity range:

Printer: 20 to 80% RH (non-condensing); Cutter: 35 to 75% RH (non-condensing)

Acoustic

Acoustic pressure emissions:

Printer: 55 dB(A)

Acoustic pressure emissions (standby):

Printer: 39 dB(A)

Acoustic power emissions:

Printer: 7.4 B(A)

Acoustic power emissions (standby):

Printer: 5.7 B(A)

Power

Print speed

Printer: 2.6 kW (printing)
72 watts (ready)
< 2.5 watts (sleep)
(Printer: Two power cords, single phase / two wires and PE)
