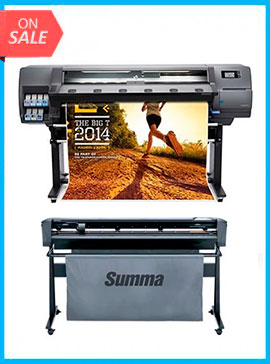

• BUNDLE - Plotter HP Latex 310 54" - Recertified - (90 Days Warranty) + SummaCut D140 54 in (137 cm) vinyl and contour cutting - New www.wideimagesolutions.com BUNDLE 11745.99
1 1

www.wideimagesolutions.com

ON SALE - BUNDLE - HP Latex 310 54" - Refurbished (90 Days Warranty) + Summa S Class 3 D140 54" Vinyl Cutter

$12,189.99
$13,189.99
$12,189.99
Shipping calculated at checkout.
    BUNDLE - Plotter HP Latex 310 54" - Recertified - (90 Days Warranty) + SummaCut D140 54 in (137 cm) vinyl and contour cutting - New www.wideimagesolutions.com BUNDLE 11745.99

    Tech Specs

    Business Financing Available



    * Refurbished printers doesn't come with starter supplies, those are sold separately



    This bundle includes:

    • Plotter HP Latex 310 54" - Refurbished (90 Days Warranty)
    • Summa S Class 3 D140 54" Vinyl Cutter

    HP Latex 310 54" Printer - Specifications

    Print speed, maximum
    48 m²/hr - Billboard (2 pass); 16 m²/hr - Outdoor Plus (6 pass); 12 m²/hr - Indoor Quality (8 pass); 9.7 m²/hr - Indoor High Quality (10 pass); 6.1 m²/hr - Backlits, Textiles, and Canvas (16 pass); 4.9 m²/hr - High Saturation Textiles (20 pass)
    Print quality color (best)
    Up to 1200 x 1200 dpi
    Print technology
    HP Latex Printing Technologies
    Ink types
    HP Latex Inks
    Print Cartridges/Bottle, Number
    7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
    Print heads
    6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)
    Print head nozzles
    2112
    Print repeatability
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Finished output handling
    Roll feed; take-up reel (optional)
    Media types
    Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, (fabrics, mesh, textiles and any other porous materials require a liner)
    Non-printable area (roll media)
    0.2 x 0.2 x 0.2 x 0.2 in
    Non-printable area (roll media)
    5 x 5 x 5 x 5 mm
    Roll maximum input
    1
    Media width, maximum
    1371 mm
    Roll maximum weight
    25 kg
    Roll external diameter
    180 mm
    Media thickness
    Up to 19.7 mil
    Dimensions (W x D x H)
    2307 x 840 x 1380 mm 91 x 33 x 54 in
    Weight
    174 kg 384 lb
    Package dimensions (W x D x H)
    2541 x 760 x 1250 mm 100.1 x 30 x 49.3 in
    Package weight
    257.5 kg 568 lb
    Operating temperature range
    15 to 30ºC
    Operating humidity range
    20 to 80% RH (non-condensing)
    Acoustic pressure emissions
    54 dB(A)
    Acoustic pressure emissions (standby)
    38 dB(A)
    Acoustic power emissions (active, printing)
    7.2 B(A)
    Acoustic power emissions (standby)
    5.5 B(A)
    Power consumption
    2.2 kW (printing); 70 watts (ready); < 2.5 watts (sleep) Two power cords, single phase / two wires and PE

    Summa S One D140 54" Cutter w/ Service

    MODELS

    D60

    D75

    D120

    D140

    D160
    CUTTING TYPE

    Drag knife with TurboCut and Tangential Emulation Modes
    TOOL COMPATIBILITY

    Blade, Pen, Pounce Tool
    CUTTING WIDTH

    23 inch (60 cm)

    		 29 inch (74 cm) 47 inch (120 cm) 53 inch (135 cm) 62 inch (158 cm)
    CUTTING SPEED

    All SummaCut models cut at speeds up to 44 inches per second (113 cps) diagonal
    AXIAL SPEED

    Up to 2 G
    ALIGNMENT TYPE

    • OPOS X

    • Barcode job recognition

    • Up to 2 x 64 marks on the X-line

    • Y-Line compensation
    MAXIMUM ACCELERATION Up to 3 G diagonal
    TRACKING PERFORMANCE Within ± 0.004 in. (± 0.1 mm) on plots up to 26 ft. long (8 m) on rolls up to 760 mm wide
    Within ± 0.004 in. (± 0.1mm) on plots up to 13 ft. (4 m) long on rolls over 760 mm wide
    CUTTING FORCE 0-400 grams of down-force, in 5 gram increments
    REPLOT MEMORY 4 MB (buffer size: 16 MB)
    DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Lithuanian
    CONNECTIVITY USB, Serial RS232, Ethernet (only on SummaCut D120, D140 - not FX - & D160)
    POWER REQUIREMENTS 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
    DIMENSIONS 39 (W) x 13.8 (D) x 11 (H) in. (100 (W) x 35 (D) x 30 (H) cm) 45 (W) x 13 (D) x 11 (H) in. (115 (W) x 35 (D) x 30 (H) cm) 63 (W) x 26.8 (D) x 45 (H) in. (160 (W) x 68 (D) x 114.5 (H) cm) 68 (W) x 26 (D) x 45 (H) in. (175 (W) x 68 (D) x 114.5 (H) cm) 77 (W) x 26 (D) x 45 (H) in. (198 (W) x 68 (D) x 114.5 (H) cm)
    WEIGHT 33 lbs (15 kg) 37 lbs (17 kg) 92 lbs (42 kg) 106 lbs (48 kg) 119 lbs (54 kg)
    OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
    STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.
    OPTIONAL ACCESSORIES

    Stand or Basket for SummaCut D60 / SummaCut D75
