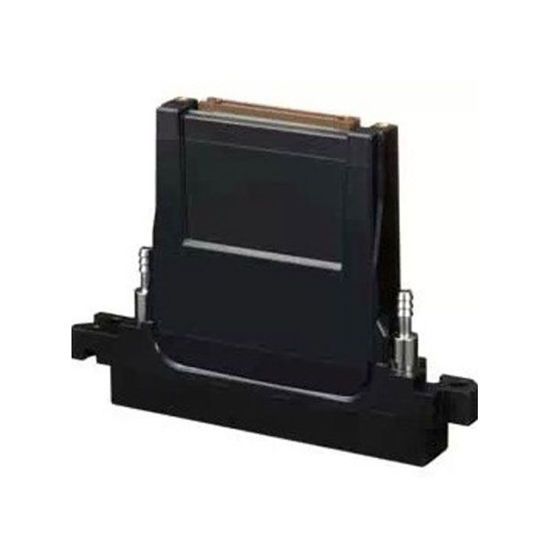

Konica Minolta 1024i LHE 30PL Printhead

The Konica Minolta KM1024i LHE 30PL printhead is high speed, high productivity with ‘independent’ firing technology – not limited by the low speeds of older ‘shared wall’ technology. Proven in a wide range of single-pass systems, providing print up to 80 meters per minute from a single row of heads. The KM1024i printhead is available in 6, 14 and 30pl drop sizes. This Konica Minolta KM1024i LHE 30PL printhead is the large native drop volume variant (30pl) for UV inks (integrated heater). This is the genuine Konica 1024i LHE 30PL Printhead and not the alternative Konica KM HS1000. The Agfa part number is D2+75502060010S.

We recommend to change the head cables when installing a new printhead.

Specifications

- Technology: Piezo Drop On-Demand
- Grey scale: 8 levels
- Native Resolution: 360 dpi (4 rows x 90 dpi)
- Native drop volume (L): 30 pl
- Max. Drops in Greyscale: 8 drops
- Tot. Amount of Nozzles: 1024 (256 x 4 rows)
- Print Width: 72.12 mm
- Max Firing Frequency: 27 kHz
- Drive Voltage: 13+-3V
- Ink Compatibility: Solvent, Oil, UV inks.
- Heater: integrated
- Recommended temperature: under 55 degrees C
- Dimensions: W131mm x D18mm x H94mm
- Weight: less than 150g
