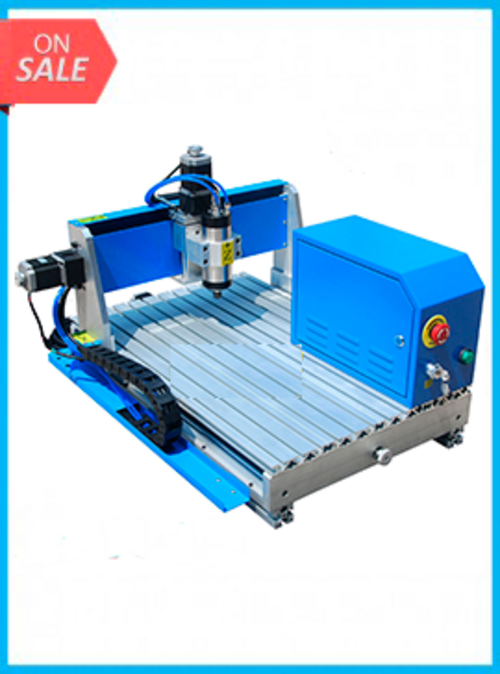

800W Air-cooled Spindle CNC Router Engraving Machine RS-4060 High Precision

$2,499.99
$2,999.99
$2,499.99
Shipping calculated at checkout.
    800W Air-cooled Spindle CNC Router Engraving Machine RS-4060 High Precision

    Tech Specs

    Business Financing Available

     Specifications

    Model

    RS-3020

    RS-3040

    RS-4060

    RS-6090(Desktop)

    X,  Y, Z Guide

    Rolling  ball screw

    Drive  type

    Stepper  motor

    X, Y, Z Work Area(mm)

    320x230x55

    385x315x55

    385x580x55

    615x905x90

    Machine  dimension(mm)

    550x650x550

    650x700x550

    900x700x550

    1300x950x580

    Max  Speed

    4000mm/min

    Spindle

    800W  high speed

    Max  feeding height

    90mm

    Interface

    DSP  handle (read  USB memory directly ) / NC Studio / Mach3

    Repeatability(mm)

    ≤  0.0 5 mm

    Command  code

    HPGL,  G-code

    Spindletools

    Φ 3.175, Φ  6

    Power

    AC220V  ± 10% / 50~60Hz



    The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design.Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition,the machine can achieve the performance of good resolution and less noise with ball screw.

    Accesories

    • User Manual (English CD)
    • Communication cable
    • Mach 3
    • Air-cooled spindle
    • 4 Fixtures
    • 2 wrenches
    • 8 Turning tool
    • Other tool
