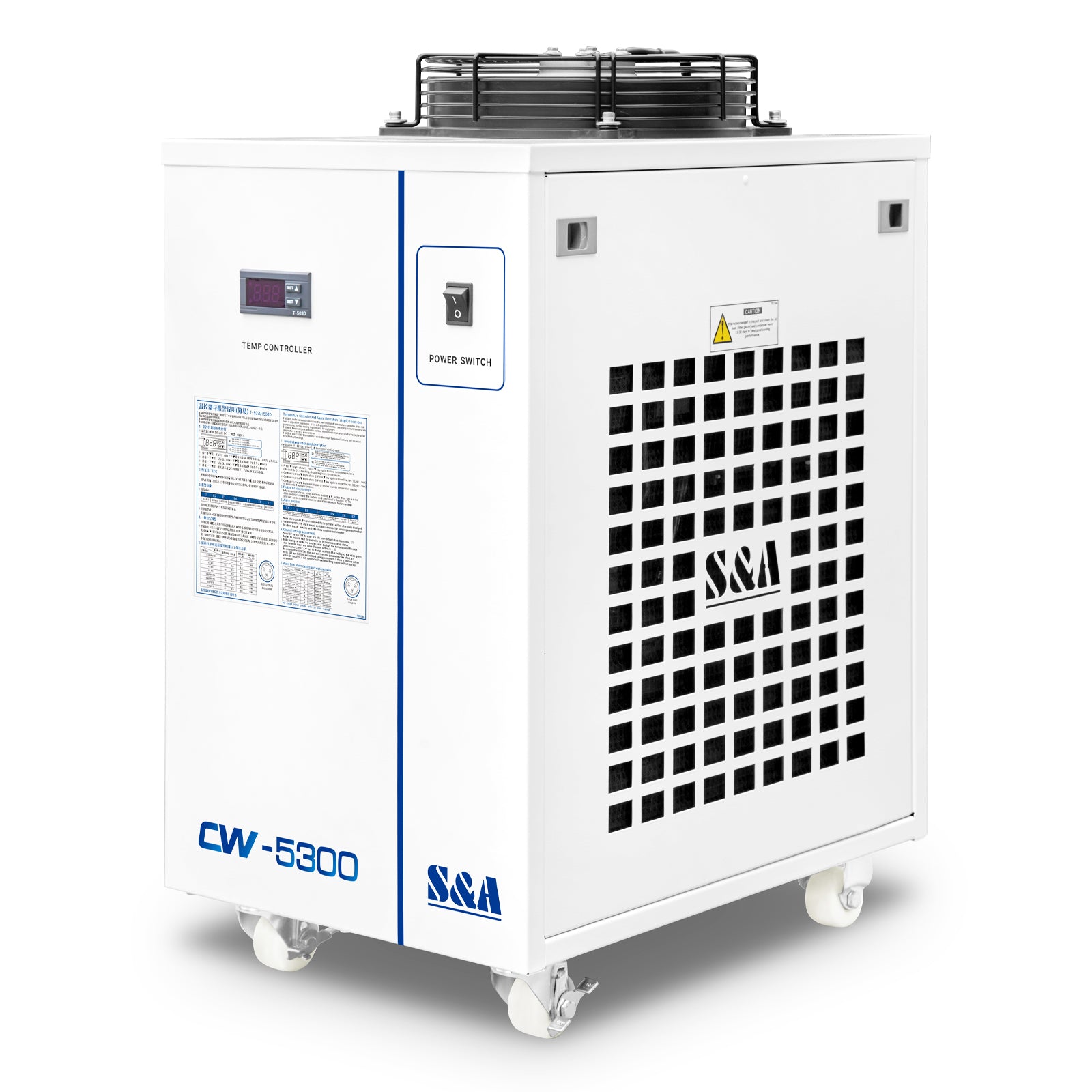

S&A 5300DH Industrial Water Chiller for 150W CO2 Cutting Machine, AC 1P 110V 60Hz

Regular price
$1,140.00
Regular price
Sale price
$1,140.00
Shipping calculated at checkout.
    S&A 5300DH Industrial Water Chiller for 150W CO2 Cutting Machine, AC 1P 110V 60Hz

    Tech Specs

    Description:
    S&A CW-5300 series is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

    Features:
    • 1800W cooling capacity; optional environmental refrigerant;
    •  ±0.3°C precisely temperature control;
    • The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
    • Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
    • Multiple power specifications; CE approval; RoHS approval;
    • Long working life and simple operation;
    • Optional heater and water filter;
    • High-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.

    Specifications

    Model

    CW-5300DHTY

    Power Supply

    AC 1P 110V, 60Hz

    Current

    0.5~7.3A

    Machine power

    0.72kW

    Compressor Power

    0.62KW

    0.84HP

    Refrigerating Capacity

    8188Btu/h

    2.4kW

    2063Kcal/h

    Refrigerant

    R-410a

    Refrigerant Charge

    450g

    Precision

    ±0.5℃

    Tank Capacity

    10L

    Reducer

    Capillary

    Protection

    Over current protection for compressor, flow alarm, over temperature alarm

    Pump Power

    0.05KW

    Maximum Flow

    13L / min

    Pump pressure

    1.2bar

    Inlet and Outlet

    Rp1/2"

    Net Weight

    37Kgs(81.6lb)

    Gross Weight

    46Kgs(101.4lb)

    Product Dimension

    23.2" x 15" x 29" (590 x 380 x 740mm)

    Package Dimension

    26" x 19" x 36.2" (66 x 48 x 92cm)
