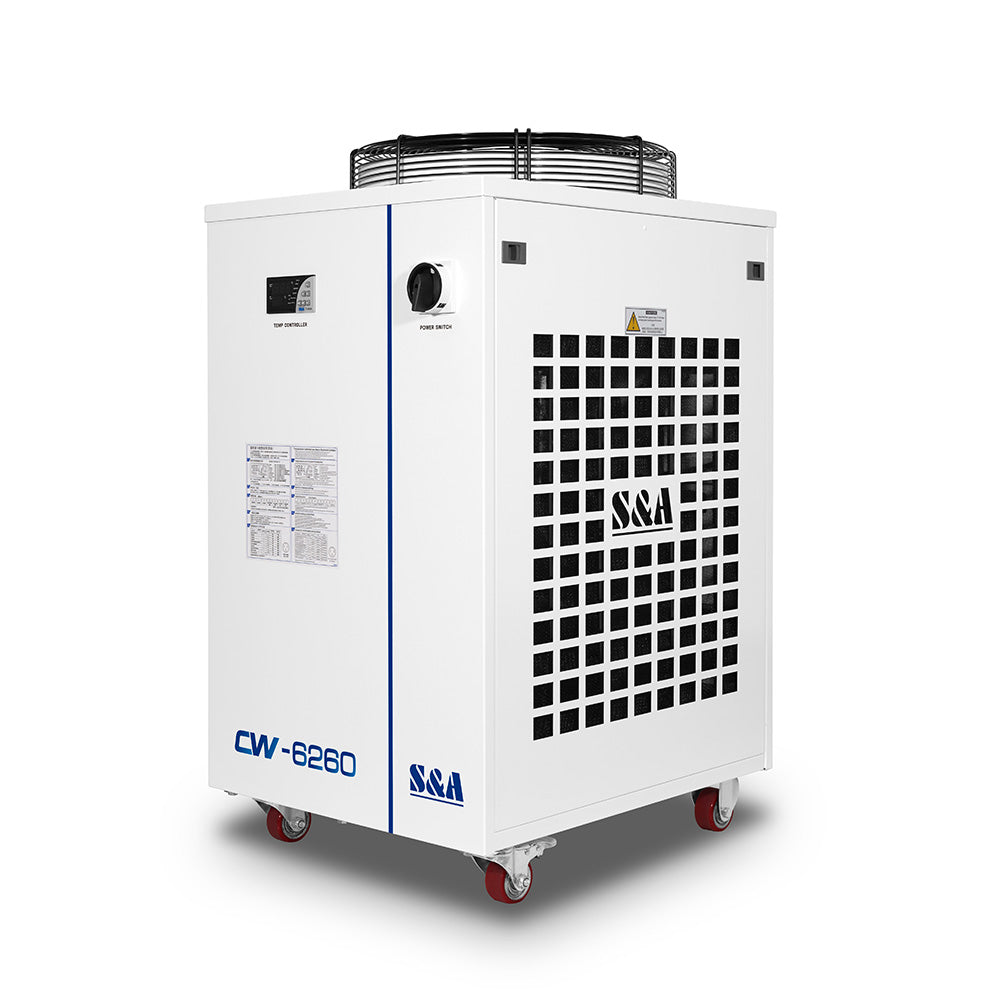

S&A 220-240V 60Hz Laser Chiller CW-6260 for Industrial CO2 Laser Cutter Welder Engraver

S&A 220-240V 60Hz Laser Chiller CW-6260 for Industrial CO2 Laser Cutter Welder Engraver

by Wide Image Solutions
$2,799.00 - $2,799.00
$2,799.00
$2,799.00 - $2,799.00
$2,799.00

Description

TEYU industrial laser chiller CW-6260 is the highly recommended option for cooling 400W industrial CO2 laser cutter welder engraver. laser chiller unit CW-6260 is designed with a durable and reliable compressor, ensuring stable cooling performance for CO2 laser equipment.
CO2 industrial laser chiller CW-6260 has a controllable temperature range of 5°C to 35°C, with constant temperature mode and intelligent temperature control mode available to choose from. What makes the intelligent temperature control mode special is that it enables automatic water temperature adjustment, setting users’ hands free. This laser water chiller is CE, RoHS and REACH certified and packed in durable materials. Suitable fluid would be purified water, distilled water and deionised water.
Suggestion:
Intelligent temperature control mode for summer
Constant temperature control mode for winter

Features:

  • 1. Cooling Capacity: 8.24kW
  • 2. Active cooling
  • 3. Temperature stability: ±0.5°C
  • 4. Temperature control range: 5°C ~35°C
  • 5. Refrigerant: R-410a
  • 6. User-friendly temperature controller
  • 7. Integrated alarm functions
  • 8. Ready for immediate use
  • 9. Easy maintenance and mobility
  • 10. Visual water level

Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the accessories box before running the chiller.

Specifications

Model CW-6260BNTY
Voltage AC 1P 220-240V
Frequency 60Hz
Current 3.9~21.1A
Max. power consumption 3.84kW
Compressor power
2.72kW
3.64HP
Nominal cooling capacity
28115Btu/h
8.24kW
7085Kcal/h
Pump power 0.75kW
Pump pressure 5.3bar
Pump flow 75L/min
N.W 81Kgs(178.6lb)
G.W 98Kgs(216.1lb)
Refrigerant R-410a
Precision ±0.5℃
Reducer Capillary
Tank capacity 22L
Inlet and outlet Rp1/2"
Dimension 77 X 55 X 103cm (30.3" x 22" x 40.6")
Package dimension 78 X 65 X 117 cm (30.7" x 25.6" x 46")
