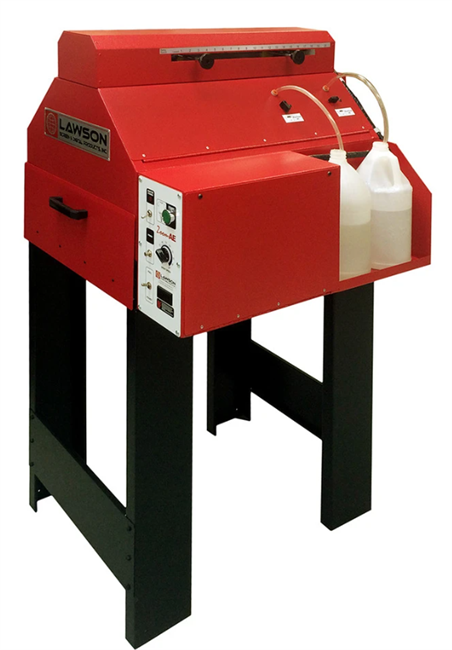

Lawson Zoom-AE #1620 Pretreatment Sprayer DEMO UNIT

$4,595.00
$4,595.00
Shipping calculated at checkout.
    Lawson Zoom-AE
    Lawson Zoom-AE
    Lawson Zoom-AE

    Tech Specs

    Description

    The Lawson Zoom-AE is the direct to garment (DTG) industry leading pretreat sprayer. The Zoom-AE is the best dtg pretreatment sprayer for anyone who is serious about quality DTG printing. As an all-electric, industrial, state-of-the-art automatic pretreatment machine, the Zoom-AE can pretreat garments quickly, easily and consistently at the touch of a button.



    All-Electric, industrial, state-of-the-art pretreat application sprayer. Pretreat garments quickly, easily and consistently at the touch of a button - with zero "out-spray".

    This pre-treat unit saves space and features an instant twist on/off spray nozzle that can be changed in seconds. In addition, the length of spray is easy to adjust and maintenance is very simple.

    The Lawson Zoom-AE is an all electric operated unit. It is ideal for basic to sophisticated spraying of pre-treat solution. Just pull out the drawer, load the shirt and push the start button.



    Specifications

    Model #1620
    Direct-to-Textile Yes
    Number of Spray Heads 1 (optional 2nd Left/Right Chest Head)
    Estimated Spray Path Width 17"
    Estimated Spray Path Length Adjustable up to 20"
    Maximum Image Size 17" x 20"
    Standard Platen Size 16" x 20"
    Estimated Length, Width, Height 34" x 27" x 24" (without floor legs)
    34" x 27" x 52" (with floor legs)
    total length with Drawer Extened is 60"
    Electrical Requirements 120 volts, standard plug-in wiring
    Air Requirements None
    Solution Containers 2, 1-Gallon Containers
    Estimated Unit Weight 150 lbs.
    Estimated Leg Kit Weight 30 lbs.
    Estimated Crate Size (W x L x H) 32" x 58 " x 32" (60" with legs assembled)
    Estimated Crated Weight 280 lbs.
    WENL Spray Tip on Zoom-AE
    Speed Grams
    40 40-51
    50 39-41
    60 34-35
    70 29-30
    *Always pre-test to determine appropriate settings for your substrate and environment
