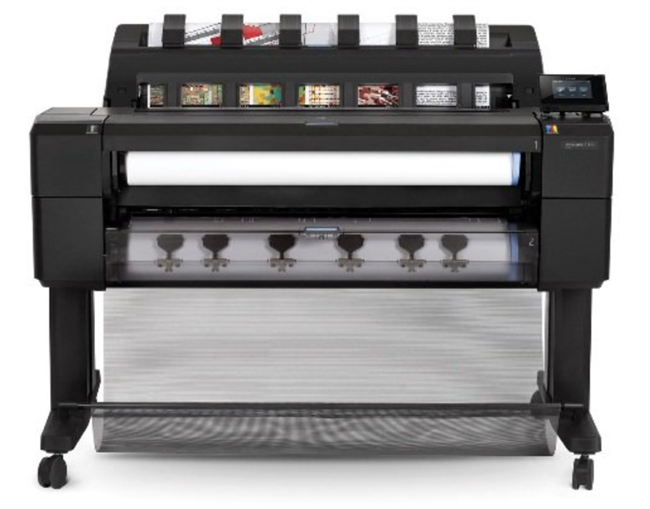

• HP Designjet T1530 36" PostScript Printer - L2Y24A
1 1

Wide Image Solutions

HP Designjet T1530 36" PostScript Printer - L2Y24A

$7,099.93
$7,099.93
Shipping calculated at checkout.
    HP Designjet T1530 36" PostScript Printer - L2Y24A

    Tech Specs

    Print:

    Line drawings: 21 sec/page on A1/D, 120 A1/D prints per hour

    Print resolution: Up to 2400 x 1200 optimized dpi

    Margins (top x bottom x left x right):

    Roll: 0.12 x 0.12 x 0.12 x 0.12 in (3 x 3 x 3 x 3 mm)
    Sheet: 0.12 x 0.87 x 0.12 x 0.12 in (3 x 22 x 3 x 3 mm)

    Technology: HP Thermal Inkjet

    Ink types: Dye-based (C, G, M, pK, Y); pigment-based (mK)

    Ink drop: 6 pl (C, M, Y, G, pK); 9 pl (mK)

    Printheads: (C, G, M, mK, pK, Y)

    Line accuracy: ± 0.1%6

    Minimum line width: 0.0008 in (0.02 mm) (HP-GL/2 addressable)

    Guaranteed minimum line width: 0.0028 in (0.07 mm) (ISO/IEC 13660:2001(E))

    Media:

    Handling:
    Input: two automatic front-loading roll feeds, smart roll switching, sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter

    Size:
    Rolls: 11 to 36 in (279 to 914 mm)
    Sheets: 8.3 x 11 to 36 x 48 in (210 x 279 to 914 x 1219 mm)
    Standard sheets: A, B, C, D, E (A4, A3, A2, A1, A0)

    Thickness: Up to 19.7 mil (0.5 mm)

    Applications:

    Line drawings, Renderings, Presentations, Maps, Orthophotos

    Memory:

    96 GB (file processing) 500 GB hard disk

    Connectivity:

    Interfaces (standard): Gigabit Ethernet (1000 Base-T)

    Printing languages (standard): Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF

    PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF

    Printing paths: Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver, HP Print for Chrome OS

    Mobile printing capability: Mobile printing via Apple AirPrint™, HP Print Service Plugin for Android, HP All-in-One Printer Remote app, and email printing. Supports printing from most smartphones and tablets using these operating systems: Android, iOS

    Drivers (included): HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X

    Dimensions (w x d x h):

    Printer: 55.1 x 36.1 x 43.7 in (1399 x 916 x 1110 mm)

    Shipping: 59.1 x 30.8 x 33.5 in (1500 x 781 x 815 mm)

    Weight:

    Printer: 194 lb (88 kg)

    Shipping: 265 lb (120 kg)

    Environmental ranges:

    Operating temperature: 41 to 104o F (5 to 40°C)

    Storage temperature: -13 to 131oF (-25 to 55° C)

    Operating humidity: 20 to 80% RH

    Acoustic:

    Sound pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep))

    Sound power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)

    Power consumption:

    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)

    Input voltage (auto ranging) 100-240 V (± 10%), 50/60 Hz (± 3 Hz), Input Current 2 A max

    Certification:

    Safety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS)

    Electromagnetic: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

    Environmental: ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze
