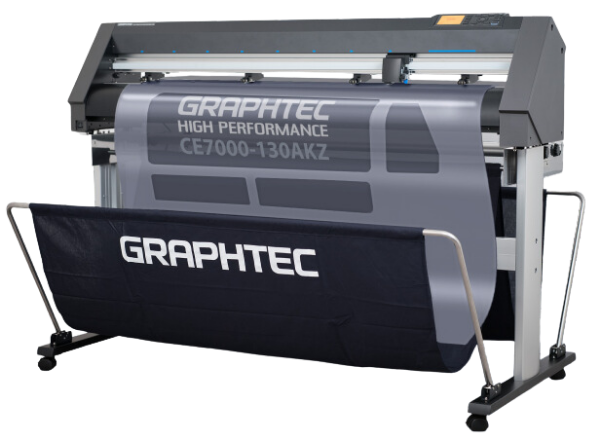

GRAPHTEC CE7000-130AKZ 50" Wide "E-Class" Cutter with Stand, Basket, 2 Antistatic Strings, 4 Magnets, 2 Tint

$5,295.00
$5,295.00
Shipping calculated at checkout.
    GRAPHTEC CE7000-130AKZ 50" Wide "E-Class" Cutter with Stand, Basket, 2 Antistatic Strings, 4 Magnets, 2 Tint

    Tech Specs

    Description

    The Graphtec CE7000-130AKZ cutter has been specifically designed for the aftermarket automotive industry.  Modified for the streamlined cutting of Window Tint Film, Paint Protection Film, Paint Masking, Pinstriping Graphics and similar applications, this versatile cutter will boost your productivity to the next level.  A heavy duty precision servo motor delivers accurate cutting speeds of up to 39 inches per second with an unsurpassed 15 feet of tracking.

    CE7000-130AKZ Highlighted Features:

    • Impressive 450 Grams of Downforce
    • Blazing fast 39 inches-per-second cutting speed
    • Precise loupe for easy blade adjustment
    • Open software platform
    • Ethernet connectivity
    • USB thumb drive connectivity - no computer needed!

    The CE7000-130AKZ boasts GRAPHTEC's popular cutting channel to allow easy perforated cut or through cut operations. This powerful cutter comes with GRAPHTEC's full complement of Graphtec Software including Cutting Master 4 plug in for Adobe and Corel Users and their ever-popular Graphtec Pro Studio software for design and cut graphics. CE7000 series works with both PC and MAC platforms or use the handy new USB Thumb Drive Port if needed.

    Technical Specifications

    Item CE7000-130AKZ
    Configuration Grit roller with digital servo drive system
    Maximum Cutting Area (W x L)

    50" x 164'
    Mountable Media Width 2" to 60"
    Number of push rollers 4 rollers
    Maximum cutting speed 39"/s, at 45º direction
    Maximum Acceleration 45.60' (13.9 m/s2), at 45º direction
    Maximum Cutting Force 4.41 N (450 gf) in 38 steps
    Minimum character size Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
    Programmable Resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
    Mountable number of tools 1 tool
    Blade type Supersteel
    Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm)
    Interface USB 2.0 (Full Speed), Ethernet
    10BASE-T/100BASE-TX
    Buffer Memory 2 MB
    Command Sets GP-GL / HP-GL™ (Set by command or auto-detect)
    Display Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
    Registration Mark
    Sensing System     		Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect
    Alignment Accuracy Maximum 0.3 mm with printed image
    (when reading registration marks specified by this machine)
    Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
    Power consumption 120 VA
    Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
    Guaranteed Accuracy Environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
    External dimensions (W x D x H) 67" x 45.2" x 48"
    Weight: 121 lbs (54.9 kg)
    Compatible OS (*2) Windows 11 /10 / 8.1 / 64-bit editions
    Mac OS 10.2 (Sierra) to 13 (Ventura)
    Included software (download) Graphtec Studio 2, Cutting Master 5 for Windows and Mac
    Compatibility Standards Safety PSE, UL/cUL, CE mark
    EMC VCCI Class A, FCC Class A, CE mark
