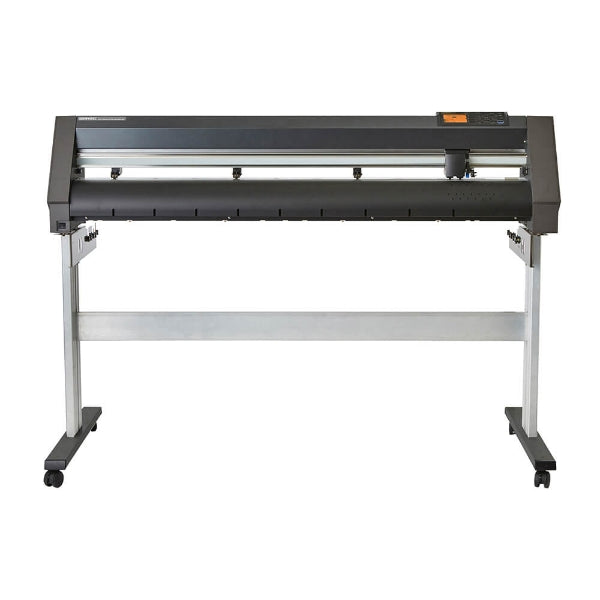

GRAPHTEC CE7000-130 50" Wide "E-Class" Cutter with Stand
- Regular price
-
$4,895.00 - Regular price
-
- Sale price
-
$4,895.00
Couldn't load pickup availability
Tech Specs
Description
The Graphtec CE7000 Series is the perfect solution for those looking to increase production with greater efficiency for: SIGNAGE GRAPHICS • PRINT & CUT GRAPHICS • POP & PACKAGING • AUTOMOTIVE MARKETS and many more….
CE7000 FEATURES:
- NEW 8.0 ARMS for Fast & Accurate PRINT & CUT Applications
- DATALINK Bar Code Feature for Maximum Productivity
- NEW USB Thumb Drive Connectivity - NO Computer Needed!
The CE7000 Series also boasts GRAPHTEC's popular cutting channel feature to allow easy PERFORATED CUT or THROUGH CUT operations.
The CE7000 Series comes complete with a full complement of Graphtec Software along with Ethernet Connectivity.
Software includes Cutting Master 4 plug-in for Adobe & Corel Users and the popular Graphtec Pro Studio software for design & cut graphics. The CE7000 series works with both PC and MAC platforms, or use the handy new USB Thumb Drive Port if needed.
Technical Specifications
| Item | CE7000-40 | CE7000-60 | CE7000-130 | |
|---|---|---|---|---|
| Configuration | Grit roller with digital servo drive system | |||
| Maximum cutting area (W x L) |
15" x 164' |
24" x 164' |
50" x 164' |
|
|
Cutting area of guaranteed accuracy(W x L) (when using the basket) |
14" x 79" |
23" x 79" |
50" x 79" |
|
| Mountable media width |
2" 19" |
2" 30" |
2" 54" |
|
| Number of push rollers | 2 rollers | 4 rollers | ||
| Maximum cutting speed | 24"/s, in all directions | 36"/s, at 45º direction | 39"/s, at 45º direction | |
| Maximum acceleration | Max. 21.2 m/s2 (2.2G) at 45º direction | 45.60' (13.9 m/s2), at 45º direction | ||
| Maximum cutting force | 4.41 N (450 gf) in 38 steps | |||
| Minimum character size | Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media) | |||
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
| Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) | |||
| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material | |||
| Interface |
USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX |
|||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) | |||
| Display | Graphic type LCD with back-light (240dots x 128dots), supports 10 languages | |||
|
Registration Mark Sensing System |
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection | |||
| Alignment accuracy | Maximum 0.3 mm with printed image (when reading specified registration marks) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |||
|
External dimensions (W x D x H) (with Basket) |
Approx. 30.4" x 11.5" x 12.3" |
Approx. 39.6" x 23" x 43" (39.6" x 36.9" x 43") |
Approx. 67" x 32" x 48" (67" x 45.2" x 48") |
|
|
Weight (Approx.) (with Basket) |
27.7 lbs (13kg) |
51 lbs (23 kg) |
112.4 lbs (51 kg) 121 lbs (54.9 kg) |
|
| Compatible OS (*2) |
Windows 11 /10 / 8.1 / 64-bit editions Mac OS 10.2 (Sierra) to 13 (Ventura) |
|||
| Included software (download) | Graphtec Studio 2, Cutting Master 5 for Windows, and Mac | |||
| Compatibility Standards | Safety | PSE, UL/cUL, CE mark | ||
| EMC | VCCI Class A, FCC Class A, CE mark | |||
(*1) Operated with Graphtec specified media and conditions. In long-length cutting, the basket is used.
(*2) For more information about compatibility of the OS / application software, please check the Graphtec website or contact your local representative of Graphtec.
