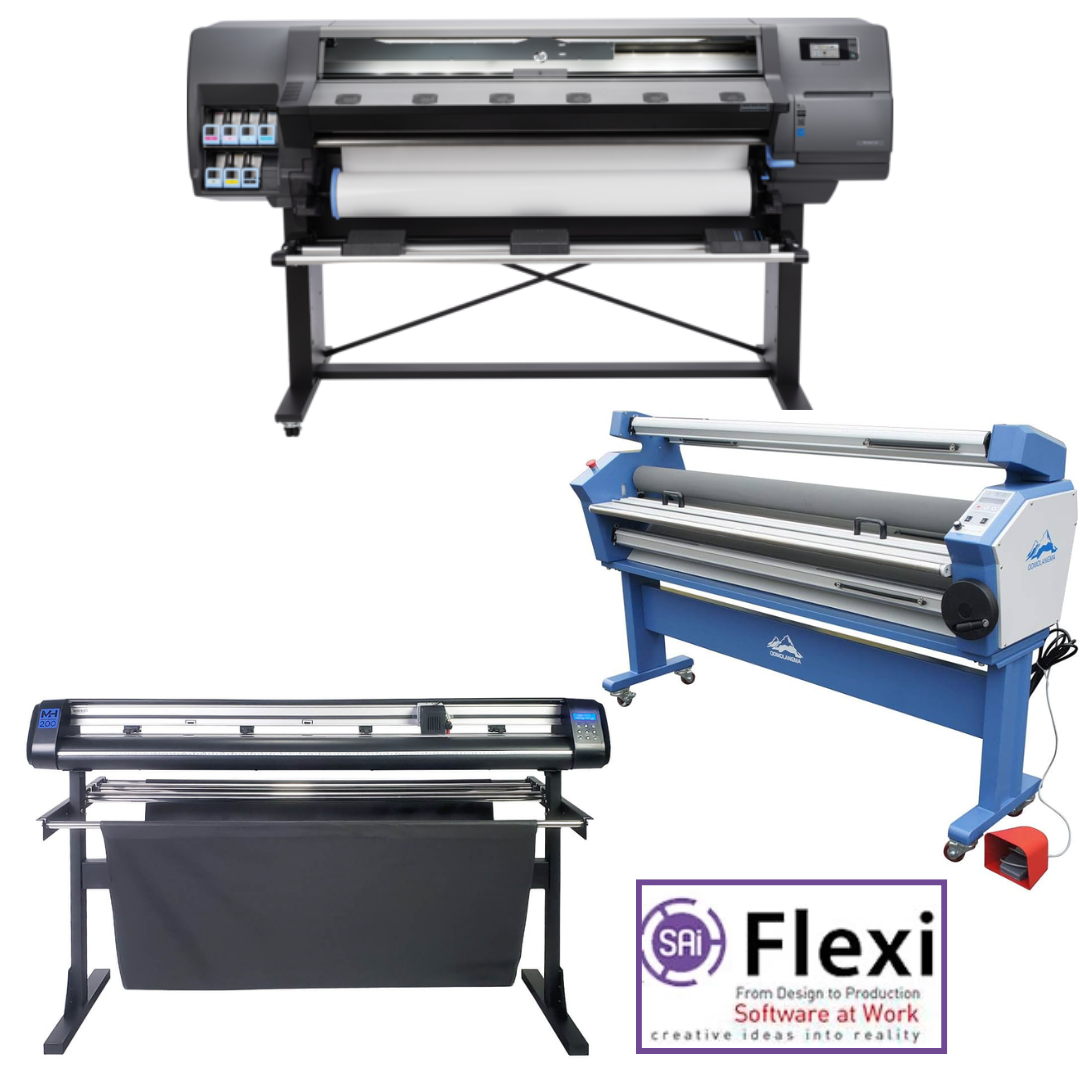

COMPLETE SOLUTION - HP Latex 310 54" Printer - Refurbished (90 Days Warranty) + 55" Full-Auto Low Temp. Cold Laminator, With Heat Assisted - New + 53" Vinyl Cutter Machine with ARMS Contour Cutting (MH200) - New + Flexi RIP Software

Regular price
$9,808.97
Regular price
$10,058.97
Sale price
$9,808.97
Shipping calculated at checkout.
    COMPLETE SOLUTION - HP Latex 310 54" Printer - Refurbished (90 Days Warranty) + 55" Full-Auto Low Temp. Cold Laminator, With Heat Assisted - New + 53" Vinyl Cutter Machine with ARMS Contour Cutting (MH200) - New + Flexi RIP Software

    Tech Specs



    * Refurbished printers doesn't come with starter supplies, those are sold separately

    This Package includes:

    • HP Latex 310 54" Printer - Refurbished (90 Days Warranty)
    • 55" Full-Auto Wide Format Cold Laminator with Heat Assisted
    • 53" Vinyl Cutter Machine with ARMS Contour Cutting (MH200) - New
    • Flexi RIP Software for 1 Year (Compatible with Windows 10 and 11)

    HP Latex 310 54" Printer - Specifications

    Print speed, maximum
    48 m²/hr - Billboard (2 pass); 16 m²/hr - Outdoor Plus (6 pass); 12 m²/hr - Indoor Quality (8 pass); 9.7 m²/hr - Indoor High Quality (10 pass); 6.1 m²/hr - Backlits, Textiles, and Canvas (16 pass); 4.9 m²/hr - High Saturation Textiles (20 pass)
    Print quality color (best)
    Up to 1200 x 1200 dpi
    Print technology
    HP Latex Printing Technologies
    Ink types
    HP Latex Inks
    Print Cartridges/Bottle, Number
    7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
    Print heads
    6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)
    Print head nozzles
    2112
    Print repeatability
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Finished output handling
    Roll feed; take-up reel (optional)
    Media types
    Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, (fabrics, mesh, textiles and any other porous materials require a liner)
    Non-printable area (roll media)
    0.2 x 0.2 x 0.2 x 0.2 in
    Non-printable area (roll media)
    5 x 5 x 5 x 5 mm
    Roll maximum input
    1
    Media width, maximum
    1371 mm
    Roll maximum weight
    25 kg
    Roll external diameter
    180 mm
    Media thickness
    Up to 19.7 mil
    Dimensions (W x D x H)
    2307 x 840 x 1380 mm 91 x 33 x 54 in
    Weight
    174 kg 384 lb
    Package dimensions (W x D x H)
    2541 x 760 x 1250 mm 100.1 x 30 x 49.3 in
    Package weight
    257.5 kg 568 lb
    Operating temperature range
    15 to 30ºC
    Operating humidity range
    20 to 80% RH (non-condensing)
    Acoustic pressure emissions
    54 dB(A)
    Acoustic pressure emissions (standby)
    38 dB(A)
    Acoustic power emissions (active, printing)
    7.2 B(A)
    Acoustic power emissions (standby)
    5.5 B(A)
    Power consumption
    2.2 kW (printing); 70 watts (ready); < 2.5 watts (sleep) Two power cords, single phase / two wires and PE

    55" Full-Auto Low Temp. Cold Laminator, With Heat Assisted - New

    Qomolangma 55in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
    Equipped with heat on the top roller to activate the adhesive on your pressure sensitive lamination film, you can rest assured that you will achieve the perfect finish every time.
    WA series designed for wide format laminating or mounting application use. Entry level Full-auto roll to roll model with metal sheet construction.

    Used for:
    A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for projects. This new model can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
    Cold roll laminators are the perfect option for someone looking to enter the wide format graphics market. Equipped with all of the features needed to produce most applications, Qomolangma cold roll laminator promises quality, performance and safety – at an affordable price.
    • Great for mounting prints to boards
    • Over laminating digital prints
    • Applying application tapes, applying double side adhesives and vinyl
    Remark: Trimmer cutting function for your option, if you want this function, please choose "with trimmer"

    Features:

    • Good color reducibility and light transmittance, free of bubbles and snowflake point!
    • Free heavy duty floor stand with caster wheels
    • Laminates graphics up to 55in wide
    • Drop in type interchangeable 3 inches aluminum shaft
    • Manual nip adjustment up to 1.38 inch for handling of most substrates
    • 102mm (4in) bigger rollers for best quality laminating control
    • Safety eyes for increased operator safety
    • Foot switch for hands free operation
    • Removable front worktable for easy film setup
    • Adopt new - style aluminum alloy supporting roller.
    • One side hand crank lift up system
    • Button type control panel
    • Variable speed control
    • Forward and reverse direction control
    • E-stop and photocell installed for safety
    • Both auto and foot pedal switch mode
    • Removable pressure plate
    • Stand assembled at customer site

    Specification:
    Electrical Requirements: AC110V / 50 - 60Hz, AC230V / 50 - 60Hz
    Heated Rollers: Heat Assist
    Maximum Roller Temperature: 140F (60C)
    Maximum Speed: 19.685 ft / min (6m / min)
    Maximum Substrate Thickness: 1.38in (35mm)
    Maximum Working Width: 55in (1400mm)

    Usage:

    Qomolangma Laminator's Advantages:
    Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
    Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
    Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
    Electric wiring: the design of electrical structure is humanized and easy to operate.

    Application:
    Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board,  flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.





    53" 3 ARMS Contour Cut Vinyl Cutter w/ VinylMaster Cut Software - New

    Make the quantum leap up to ARMS automated contour cutting with the new improved 3 ARMS contour cutting technology utilizes an optical eye to automatically scan printed crop marks and cut around printed images for sheets of stickers, labels, and so much more!

    New and Improved!

    Product Features
    • ARMS(!) Automatic Registration Mark Sensor contour cutting.
    • Optical eye reads registration marks automatically for quick, accurate contour cutting of print & cut graphics, stickers, and labels!
    • Grippier grit-roller with coarse texture for improved tracking of vinyl material for more accurate long cutting jobs!
    • Quieter fan-free motor with powerful downforce!
    • New & Improved control panel with easier-to-use operator interface!
    • Allows adjustment of cutting force and speed while working.
    • USB 2.0 interface.
    • Cut virtually any materials including vinyl, stencil mask, and so much more.
    • Make your own signs, banners, decals, paint mask stencils!
    • Easy to use. Free support!
    Included Items
    • 1x LP3 Vinyl Cutter/ Plotter Unit
    • Free included stand and media catch basket!
    • Design and Cut Professional Software: (VinylMaster Cut)
    • Blade Holder
    • 3x45° Roland-compatible Cutter Blades
    • Pen Holder
    • USB Cable
    • 9-pin Serial Cable
    • Power Cord
    • 1 Year Warranty



    Included Software: VINYLMASTER CUT for PC




    VinylMaster Cut Contour Cut Software (for PC users)

    VinylMaster Cut (Basic Edition) is dedicated vinyl cutting software designed specifically for making vinyl signage. VinylMaster Cut allows you to produce a wide range of vinyl lettering, pinstriping, and general signage, and comes with a suite of text, curve, and object tools. Take your creative vision from your mind to ready to cut computer image file with an easily customizable and intuitive interface. Fonts are vectorized and ready to cut immediately. Edit images, draw shapes, customize text, modify signs, create logos, and so much more.

    Vectorization Tools

    VinylMaster Cut software is quite possibly the best vinyl cutting software on the market today. With built in vectorization tools, compatibility with all the major image formats, even low quality jpeg and bitmap images, VinylMaster Cut can quickly and easily turn a broad variety of images into cuttable vector path designs in seconds. Simply use the VinylMaster Cut image trace feature on any image and it will be converted into a plotting file ready to cut or make further edits.

    Contour Cutting Wizard

    Add registration marks, print, and cut from 1 screen - with helpful prompts from the software wizard.

    VinylMaster Cut is equipped to provide precise contour cutting whether your machine works with LAPOS (Laser Positioning Sensor) for manual contour cutting or ARMS (Automatic Registration Mark Sensor) for automatic contour cutting. Contour cutting, cutting the outline around a printed image, is perfected with VinylMaster Cut for applications like stickers and custom printed labels. The GUI that VinylMaster Cut offers provides you with diagrams to preview and modify before completing your contour cuts. This preview will even assist you in loading your media into your cutter correctly. VinylMaster Cut has an advanced feature to allow for sensitivity control over your cutter's laser-assist feature when contour cutting. This feature ensures that your registration marks can be read when cutting matte, gloss, laminated or even reflective material.

    Design and Image Editing Tools

    VinylMaster Cut functionality includes text tools, curves, shapes, logos, and more as well as the ability to import from AI, EPS and PDF files easily. In addition to the VinylMaster Cut variety of tools, there are a number of clipart samples. With dimension and layout tools, your design will be completed accurately while saving material from being wasted. Editing nodes, customizing and adjusting shapes, and welding and manipulating paths are all easy to use and reliable functions with VinylMaster Cut.



    Spool Function

    For production runs of vinyl projects which require layering of multiple colors, VinylMaster Cut has an innovative spooling function which is much superior to the competition. Send multiple jobs to the queue and sort by color: only the parts of the design in the specified color will be cut, allowing you to complete multiple multi-layered multi-color workflows without switching between rolls of different colored vinyl.




    Cutter sorting images by color.

    Running through to spooler.

    Licensing

    While cutting with VinylMaster Cut is limited to one user, use of the software is available to unlimited users. Your design team, digital printer and vinyl cutter specialist can all collaborate using one license and send the cutting file to the computer connected to your cutter when it's time to actually cut the job. This allows you to design and work from any location.

    System Requirements

    • Pentium processor-based PC or compatible computer (Windows)
    • Windows XP/Vista/7/8/10 (Windows)
    • 512 MB of RAM or more
    • At least 50 MB of available hard disk space
    • USB Port 1.1 or 2.x

    Activation Code included on card in product packaging for digital download of software. Internet Access is required for installation. Physical disc is not required.

    * ARMS contour cutting feature works only with vinyl cutters which are ARMS compatible.
