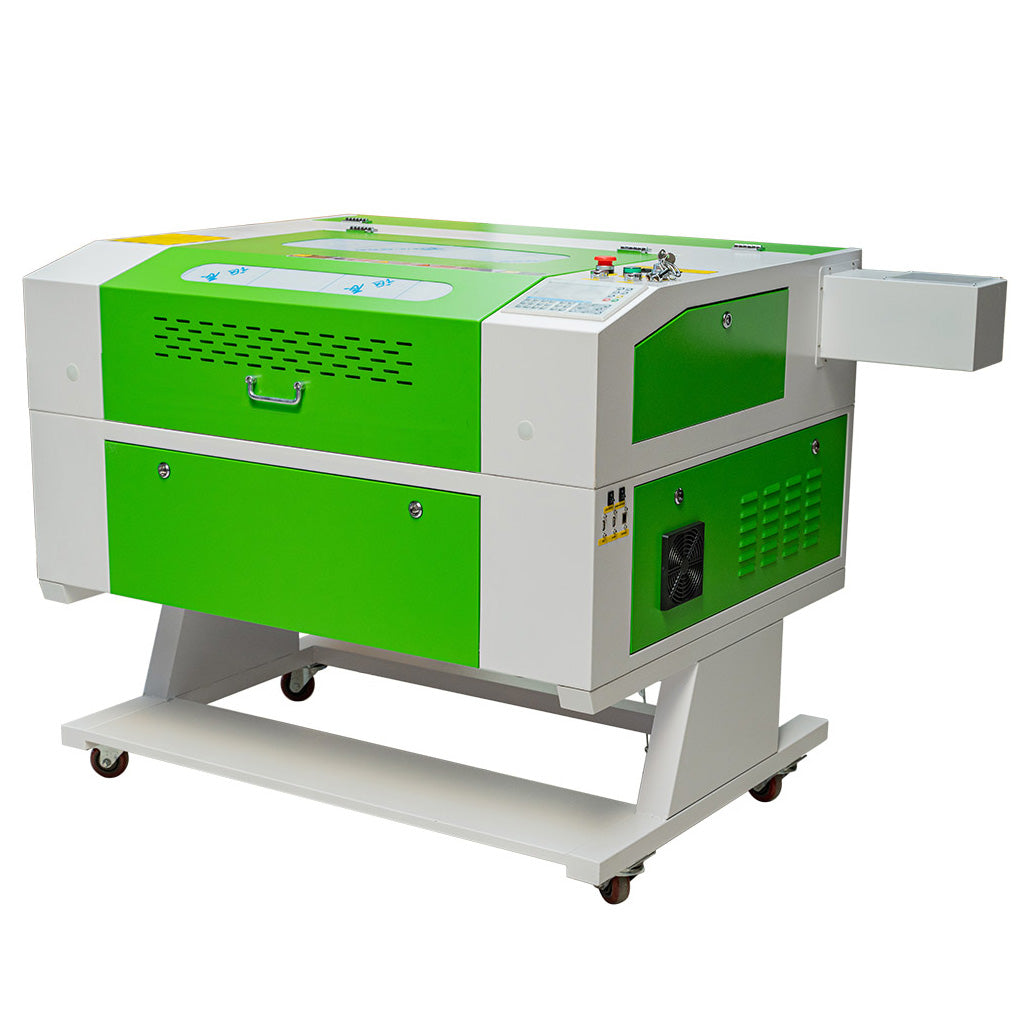

CALCA RECI 90W 20" x 28" CO2 Laser Engraver and Cutter, Electric Lift Bed, Industrial Water Chiller, Compatible with LightBurn Software
CALCA RECI 90W 20" x 28" CO2 Laser Engraver and Cutter, Electric Lift Bed, Industrial Water Chiller, Compatible with LightBurn Software
The machine is a laser engraver and cutter equipped with 90W CO2 Laser Tube. It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc.
Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver to a computer
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified
This machine is 220V voltage, equipped with 110V to 220V converter, 110V voltage available.
| Specification | |
| Control system | RuiDa |
| Working size | 20"x28"(500mm x 700mm) with double side open door |
| Z table | Motorized Z (8" vertical adjust) |
| Laser tube type | Reci 90W laser tube |
| Cooling Type | 3000 Series |
| Transformer | 110V to 220V |
| Laser power | 110V - 220V / 60Hz, 1phase, 1000W, 10A |
| Driver type | Micro Stepping Motor |
| Focus Lens | Dia. 20mm FL2.5" |
| Max speed | 1000mm/s |
| Resolution | 1000 DPI |
| Location precision | 0.01mm |
| PC Interface | USB, Ethernet connection and USB Disk |
| Support Software | LightBURN, CorelDraw, AutoCAD, Photoshop, etc. |
| Image form | PLT,BMP,DST, DSB, DXF |
