Wide Image Solutions

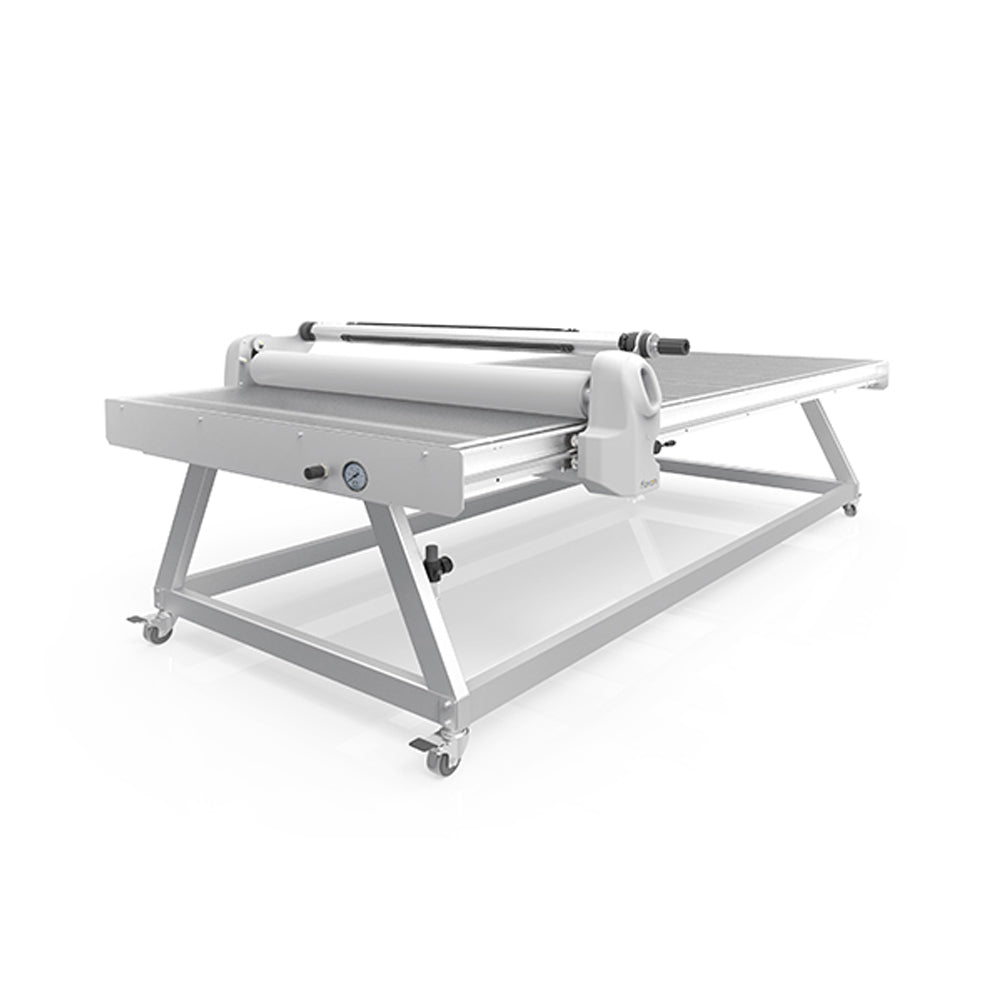

Qomolangma 51" x 98" Flatbed Lamination Table for All Size Prints and Kinds of Board

Regular price
$8,299.00
Regular price
Sale price
$8,299.00
Shipping calculated at checkout.
    Qomolangma 51" x 98" Flatbed Lamination Table for All Size Prints and Kinds of Board

    Tech Specs

    DESCRIPTION

    Flatbed laminator designed for the application of foil and all types of self-adhesive vinyl, transfer film, cold lamination and mounting of images on panels.It is an innovative flatbed laminator specially designed to enable easy and precise applications of foil and self-adhesive vinyl on a wide variety of materials (e.g. sheet metal, plastic, glass and banners). It is used as well for panels mounting and industrial applications.

    1. 70% faster application to rigid boards
    2. The only work bench you will ever need
    3. Media holder and compressor included
    4. Toughened Anti-Scratch tempered glass bed
    5. LED table lighting system
    6. Simple structure, easily operate

    Mounting
    It only takes one person to mount digital prints or adhesive many form of sub straights. Mount on foam board, corrugated panels, metal panels, banners and glass, all without bubbles.

    Tempered glass table
    The flatbed machine is used by 10mm Tempered glass

    Roller Silicone
    Imported silicone roller 130mm diameter 6mm silicone thickness.
    Heat resistance; wear resistance, aging resistance, moisture resistance, good elasticity, no pollution, and no deformation.

    Work Station
    Of course, the surface can also be used for any of your signage uses. Trimming graphics, doing layouts, weeding. The smart table can be a great support for your shop in speeding up jobs and efficiency.

    Specification
    Model FY1325
    Max laminating size 1300mm x 2500mm(51in x 98in)
    Max laminating thickness 50mm
    Diameter of roller 130mm
    Material of rollers Silicon dioxide
    Table glass 10mm temper glass
    Illumination LED tube illumination
    Machine frame Alloy aluminum
    Operation type Manual
    Roller upgrade Air cylinder
    Pressure Range 0.8-1.0kw/h
    Pressure Range 0-0.8Mpa
    Voltage 220V/110V, 50 / 60HZ
