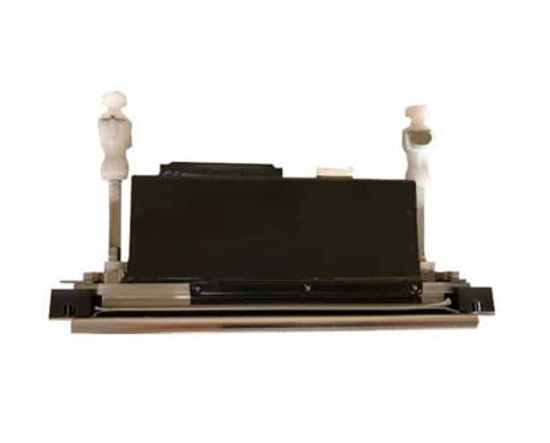

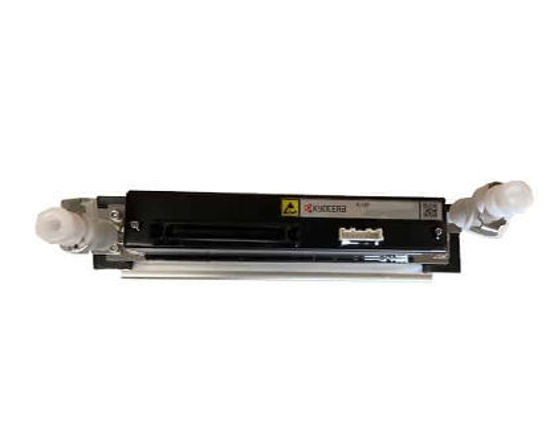

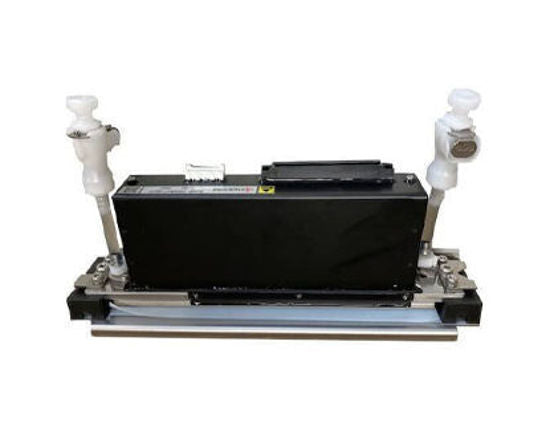

Kyocera Water Printhead KJ4B-YH

$4,807.20
$4,807.20
Shipping calculated at checkout.
    Kyocera Water Printhead KJ4B-YH
    Kyocera Water Printhead KJ4B-YH
    Kyocera Water Printhead KJ4B-YH

    Tech Specs

    Description

    This Kyocera KJ4B-YH is designed for high speed printing of water-based inks. It is a 600dpi one colour printhead with a maximum drive frequency of 40kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

    The Kyocera KJ4B-YH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.

    We recommend to change the head cables when installing a new printhead.

    Specifications

    • Ink Type:  Aqueous Ink
    • Dimensions: 200 × 30 × 60.9mm
    • Dry Weight: 438g
    • Total Nozzles: 2.656
    • Nozzle Pitch: 0.042mm
    • Standard Resolution: 600 x 600 dpi
    • Print Width: 108.25mm
    • Max. Drive Frequency: 40kHz
    • Drop Volume: 5, 7, 12 pl
    • Max. Sprint Speed: 100m/min
    • Optimum Ink viscosity: 5.0 - 6.0 mPa*s
