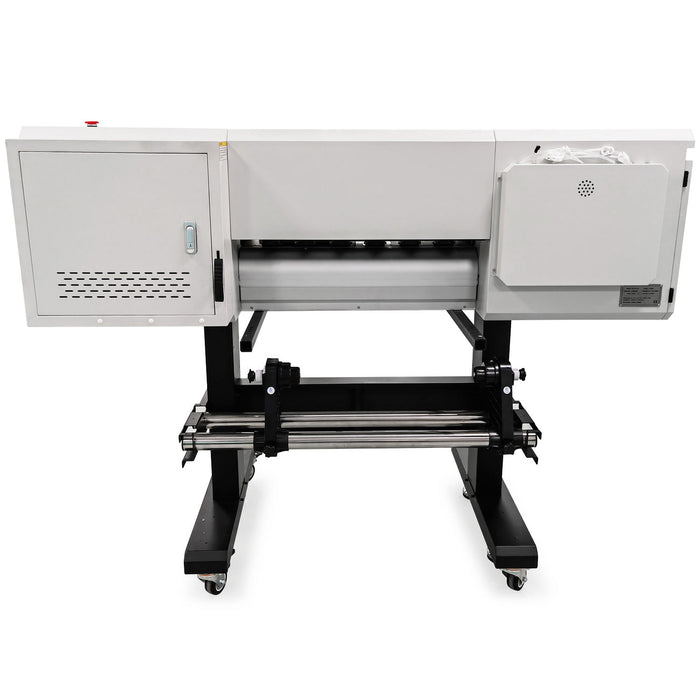

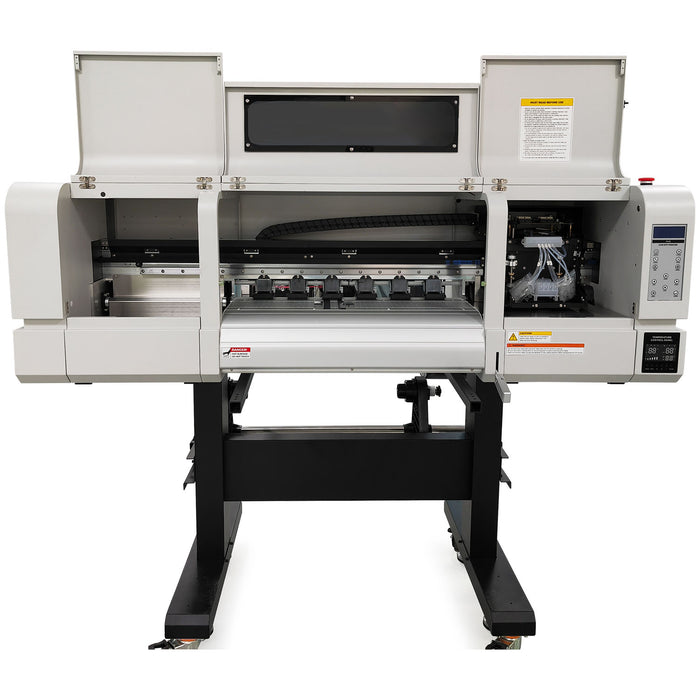

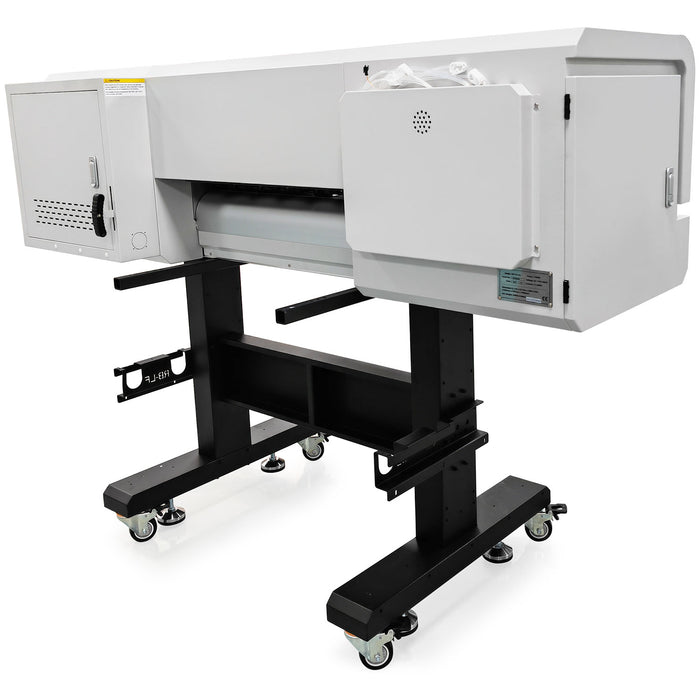

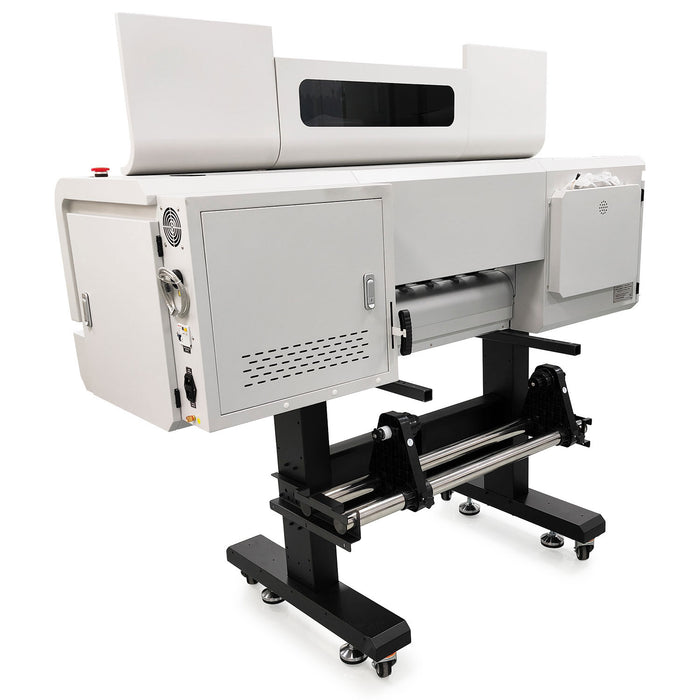

CALCA Ultra IV 24inch (600mm) DTF Printer (Direct to Film Printer) with 4 Epson I3200-A1 Printheads
Technical Specs:
24in (620mm) maximum print width
4 Epson I3200-A1 Printheads (CMYK - WWWW)
Ink Sort: Textile Pigment Ink
1.8 Liter per color ink bottle capacity
Media: PET Film
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
Maximum Roll Weight: 396lbs (20kg)
Media Heater: Pre / Rear Heater (Can be controlled separately)
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 22m²/ h; 6 pass: 18m²/ h; 8 pass: 12m²/ h
Printing Resolution: 720 x 1200dpi; 720 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Interface: Gigabit Network Port
Printing Software: Flexi PhotoPrint RIP
Print Head Cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 70.3in x 31.1in x 63.5in (1785mm x 790mm x 1613mm)
Printer Weight: 396lbs (180kg)
Height of Working Platform: 41.8in (1062mm)
Packing Size: 74in x 38.2in x 29.1in (1880mm x 970mm x 740mm)
Gross Weight: 440.9lbs (200kg)
Requirements:
• Working Power Supply: AC110V / 220V, 50HZ / 60HZ, 1 phase.
• Current: 11A / 6A, 1200W
• Operating System: XP / Win7 / Win10
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity
