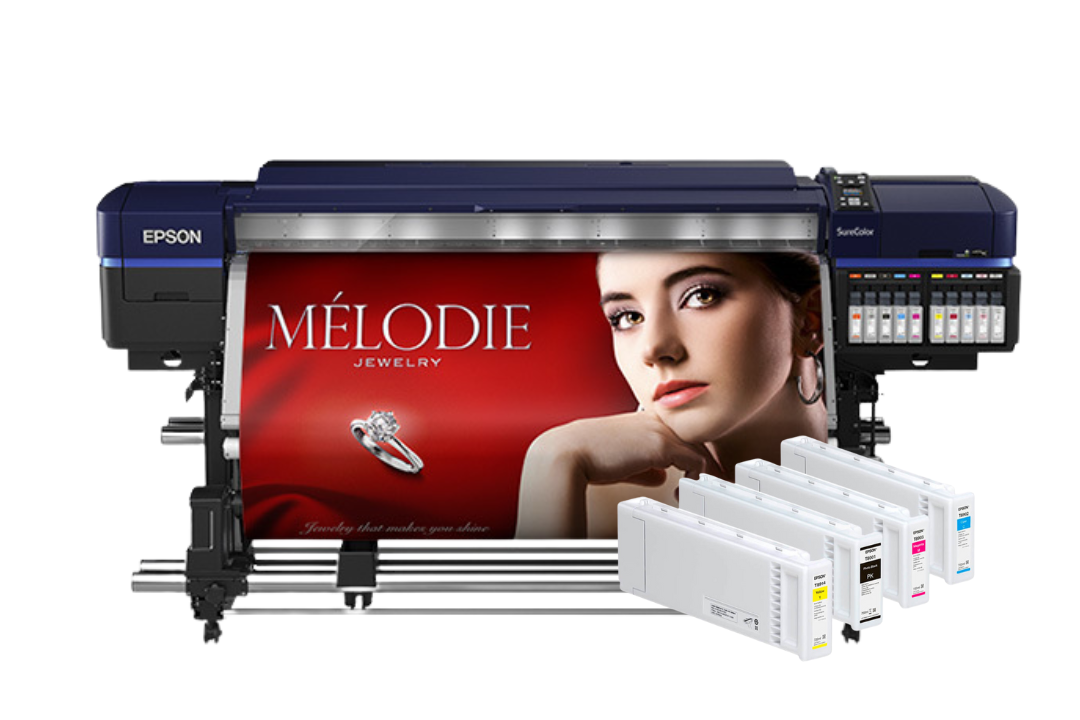

• Epson SureColor S80600 Production Edition 64" Solvent Printer - Refurbished (1 Year Warranty) + Starter Supplies
1 1

www.wideimagesolutions.com

Epson SureColor S80600 Production Edition 64" Solvent Printer - Refurbished (1 Year Warranty) + Starter Supplies

Warranty Period
$10,999.00
$10,999.00
Shipping calculated at checkout.
    Epson SureColor S80600 Production Edition 64" Solvent Printer - Refurbished (1 Year Warranty) + Starter Supplies

    Tech Specs

    Epson SureColor S80600 Production Edition 64" Solvent Printer - Refurbished (1 Year Warranty) + Starter Supplies

    Note: It comes with starter supplies

    Description

    Features & Benefits
    At Epson, our goal was to develop a line of solvent-based printers that would significantly outperform anything that has come before them. Working closely with sign-makers, Epson Engineers developed all-new imaging technology to address the everyday problems associated with lesser sign printers.

    As a result, our all-new line of solvent printers have dramatic improvements to overall printer reliability, speed and print quality - allowing for incredible levels of everyday productivity. This new line of signage printers from Epson represent a significant leap forward, helping sign-makers on any budget to get their work done right and on time.

    Printer Overview
    • Value affordable 64" roll-to-roll signage printer
    • High-speed performancephotographic-quality print speeds up to 290 sq ft/hr
    • UltraChrome GS3 Inkproven 10-color solvent-based ink system with unique Red, White and Metallic Silver inks
    • Productivity Epson Precision DotTM technology allows for band-free printing at high speeds
    • Easy media setup set up new media in minutes
    • Simple maintenance fabric wiper and air filtration system to ensure continuous, reliable production


    Epson UltraChrome GS3 Inks
    • Production capacity - high-capacity ink cartridges at 700 ml per color
    • Extreme color gamut - photographic image quality with the largest color gamut in its class
    • Superior media compatibility - print on virtually any media type from adhesive vinyl to banner material
    • Same day lamination - first solvent printers to offer same day lamination
    • Environmentally responsible - no special ventilation or air purification is required.


    PrecisionCore TFP Print Head
    • Consistent Color - efficient, precise and repeatable performance with excellent image quality
    • Precision - low vibration meniscus control for highly accurate dot shape and placement
    • PrecisionCore TFP printhead - one-inch wide print head with 720 nozzles per color
    • Epson Precision Dot - delivers best-in-class image quality at commercial-level print speeds
    • Robust Print Head Design - designed specifically for the high-demands of production environments
    Base Printing Technology
    Advanced PrecisionCore TFP Print Head
    10-channel, drop-on-demand, ink jet head
    11-cartridge (C, M, Y, K, LC, LM, LK, Or, R with
    optional WT or MS)
    Epson Ultrachrome GS3 ink
    Professional-level solvent-based ink technology
    Printer Nozzle Configuration Color and Monochrome; 720 nozzles per Color
    Smallest droplet size is 4.2 picoliters
    Resolutions 1440 x 1440 dpi; 1440 x 720 dpi;
    720 x 720 dpi; 720 x 360 dpi
    Dimensions 103" (W) x 34" (D) x 54" (H)
    Printer Weight 635 lbs
    Printer Engine Speeds
    Banner
    Draft
    Production
    Quality

    Vinyl
    Draft
    Production
    Quality
    White
    Silver

    1020 sq ft/hr
    290 sq ft/hr
    195 sq ft/hr


    N/A
    195 sq ft/hr
    142 sq ft/hr
    135 sq ft/hr
    46 sq ft/hr
    Media Handling

    Media Input

    Cut Sheet Size

    Media Core Compatibility

    Input roll media diameter

    Input roll media weight

    Media Weight/Thickness

    Roll media take-up reel

    Output roll media weight

    Single roll-to-roll minimum 12" wide up to 64" wide

    17" x 22" up to 64" wide

    2" or 3" cored media

    Up to 9.8"

    Up to 95 lbs.

    from 45 gsm up to 1.0 mm thick

    Fully automatic "wind in" or "wind out" with tension bar

    Up to 95 lbs.
    Acoustic Noise Level Approximately 59 dB(A) according to ISO 7779
    Front-End RIP Workflow
    by ONYX
    GammaPrint Pro PANTONE licensed PostScipt
    Language Level 3 compatible RIP by ONYX. Includes
    full workflow software with layout, nesting, tiling,
    custom media support and RIP queue functionality.

    The Epson SureColor S80600 is also supported by
    most leading third-party RIPs and workflows
    Onyx GammaPrint Pro RIP
    Requirements
    Server Workstation:
    Windows 7, 8 or 10 (64-bit only)
    3.2 GHz Intel i7 or better 8 GB memory recommended

    Client Workstation
    Macintosh 10.5+, Windows 7, 8 or 10 (64-bit only)
    Printer Interfaces Includes as standard one Hi-Speed USB 2.0 (1.1
    compatible) and one Gigabit Ethernet port
    Epson Ultrachrome GS3 Ink Black, Cyan Magenta, Yellow, Lt Cyan, Lt Magenta,
    Lt Black, Orange, Red, White, Metallic Silver
    Printable Area

    Maximum Paper Width

    Minimum Paper Width

    Left and right margins

    Maximum printable width

    64-inch

    12-inch

    0.20: (0.40" total)

    63.6 -inches

    * The printer is designed exclusively for use with
    EPSON cartridges for grater reliability.
    Media Heating System

    Pre Heater

    Platen Heater

    Post Heater

    Off or 86 to 122 F (off or 30 to 50C)

    Off or 86 to 122 F (off or 30 to 50C)

    Off or 86 to 131 F (off or 30 to 55C)

    *Independently controlled via control panel or front-
    end RIP
    Epson Intelligent Ink
    Cartridge

    Cartridge fill volume



    Ink cartridge shelf life
    (recommended)


    700 ml each x 8 colors total
    600 ml white
    350 ml Silver Metallic

    2 years from printed production date or 6 months
    after open

    The printer is designed exclusively for use with
    EPSON cartridges for greater reliability
    Image Permanence Ratings
    Full Color
    White
    Metallic
    Currently In Testing
    Currently in Testing
    Currently in Testing

    		Test Results based upson Epson Testing Labs using
    the ISO 18930 print surability standard.
    All print results are upon un-laminated prints printed
    on adhesive back vinyl.
    Durability numbers above are estimates of maximum
    image permanence.
    Your actual results may vary depending upson media
    type used. environmental display conditions and
    other factors.
    Epson does not warrant durability.
    Environmental
    Characteristics

    Temperature Operating
    Storage

    Relative Humidity
    Operating

    Recommended Storage

    Installation Requirements


    50 to 95F (10 to 35C)
    -4 to 104F (-20 to 40C)

    20 to 80% (40 to 60% recommended)


    5 to 85% (no condensation)

    Virtually any location with a typical air conditioning or
    other air ventilation system. No forced ventilation or air
    purification systems required.
    Electrical Requirements

    Printer
    Voltage
    Frequency
    Current

    Voltage
    Frequency
    Current

    Power Consumption
    Printer

    Operating
    Standby Heaters ON
    Standby Heaters OFF
    Sleep
    Power Off
    Operating
    Sleep
    Power Off

    Requires Two 110v Outlets
    AC 100-120 V, AC 200-240 V
    50-60 Hz
    20A at AC 110-120 V or 10A at AC 200-240 V

    AC 100-120 V, AC 200-240 V
    50-60 Hz
    1A at AC 110-120 V or 0.5A at AC 200-240 V




    Approx. 650W or Less
    Approx. 520W
    Approx. 30W or less
    Less than 3.5W
    Less than 0.6W or less
    Approx. 45W
    Approx. 0.3W
    Less than 0.6W
