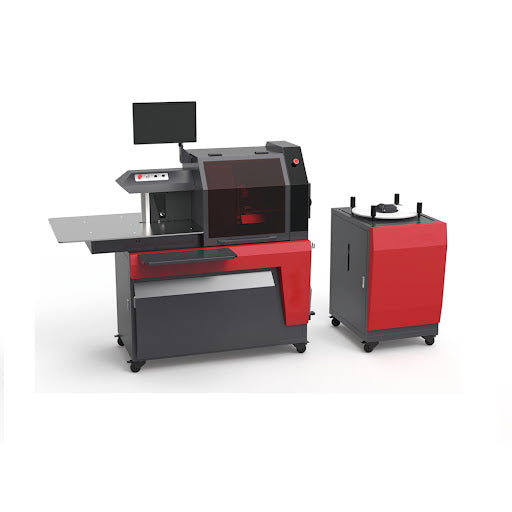

Ving Automatic Channel Letter Bending Machine Advanced High Edge Full Function Bending Machine

$16,666.00
$16,666.00
Shipping calculated at checkout.
    Ving Automatic Channel Letter Bending Machine Advanced High Edge Full Function Bending Machine

    Tech Specs

    Specifications

     Item  MBM-JY-AT3
     Feeding system  Circulation-typed clamp feeding system
     Slotting system  Plane&milling cutter slotting system
     Bending system  Double-blade alternating bending system
     Material Apecification  Stainless steel, Galvanized board≤1.2mm ；Aluminum≤1.5mm；Aluminum profiles ≤1mm
     Material Height  25-200mm
     Accuracy  ±0.1mm
     Input File format  *.dxf
     Power supply  AC220V/50HZ/3.5KW
     Air supply  0.6m³/min
     Dimensions  L1325*W903*H1583mm
     Machine weight  510kg
