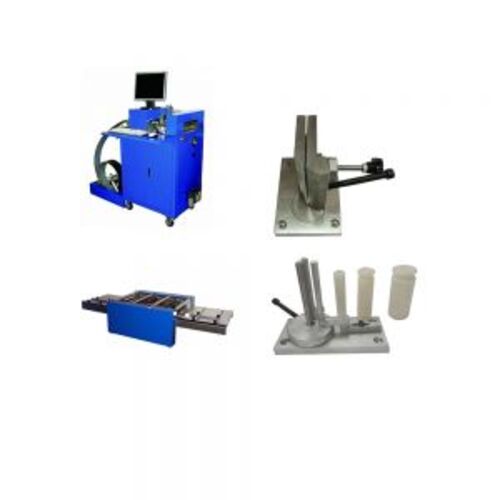

Ving Metal Channel Letter Making Solution Starter Sets (1 Notcher, 1 Flanger, 1 Angle Bender, 1 Rounded Corner)

CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch
1.This Metal Channel Letter Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm.
2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately.
Material handling capabilities:
Width: 60mm~180mm
Aluminum Coil Thickness: 0.4mm~1.2mm

Specification:
Notch angle: 30°and 105°
Notch depth: 4mm-16mm
Notch sides: One side
Voltage: AC110V/220V
Frequency: 50/60HZ
Air pressure: 0.8Mpa
Air flux: 0.1 m3/min
Physical layout: 2200(L)x1600(W)x800(H)mm
Net Weight: 200kg
Packing Size: 1030mm x 830mm x 1480mm
Gross Weight: 287kg

Automatic Flanging Machine Flanger for Metal Channel Letter Making
This cnc automatic flanger eliminates any restriction on channel letter return lengths imposed by brake size. Returns can be flanged as a continuous part of your channel letter production, minimizing labor and manufacturing costs.
Features:
Easier set up; Easy use;
Smaller Footprint conserves space;
Used on a bench top or with stand;
No special power requirements. Uses standard household power.

Specifications:
Material width: 60mm~180mm
Aluminum Coil Thickness: 0.4mm~1.2mm
Voltage: AC110V/220V
Frequency: 50/60HZ
Air pressure: 0.8Mpa
Air flux: 0.1 m3/min
Physical layout: 1200(L) x 440(W) x 310(H) mm
Weight: 52kg
Packing Size: 1340mm x 580mm x 470mm
Gross Weight: 95kg

Steel and Stainless Steel Coil Strip Rounded Corner Bender Bending Tools for Metal Channel Letter
Different sizes of roller are equipped, which can be changed to adapt to different radian

Description:
• The tool must be used in a fixed table, otherwise uneven force, the effect will not good.
• Different sizes of roller are equipped, which can be changed to adapt to different radian.
• Adding lubricating oil to keep the bending tool work smooth and anti-rust.
• It can bend iron 1.0 mm, aluminium: 1.2 mm, stainless steel: 0.8mm, effective flanging height is 10 cm.
Working Height: 100mm
Gross Weight: 3200g/set
Packing Size: 9.0" x 5.2" x 6.5"(230 x 132 x 165mm)

Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm
For bending angles of metal sheet, stainless steel, aluminum extrusions and various metal strips

Description:
• This metal letters bending tool is made to solve problems of time-consuming and laborious in manual bending metal letters, and has effectively solved problems existed in bending metal sheet.
• It can bend metal sheets quickly and accurately (It will attain the best effect if you use with CS-MBBT-001 metal slot bending machine), save time and effort, and improve production efficiency.
Updated product, zinc plated silver color.

Features:
• Two axes: one for adjustment of plywood gap, and the other for bending angles;
• Imitation of pneumatic angle bending machine, with two flexible boards, this metal letters bending tool can better adjust the plate space, bend angles for different materials;
• When bending iron stainless steel, the bending material can be guaranteed not to fall automatically by adjustment of plate space;
• This metal letter bender can fasten materials firmly, and thus can bend more perfect and accurate angles.
• It is easy to install and operate. Small size.
• It can bend iron 1.2 mm, aluminium: 1.2 mm, stainless steel: 1.0mm, effective flanging height is 10 cm.

Specification:
Maximum Process Thickness: 1.2mm (0.05")
Maximum Bending Materials Width: 100mm (3.9")
Machine Size: 210mm x 140mm x 150mm (8.3" x 5.5" x 5.9")
Machine Weight: 5.05kg
