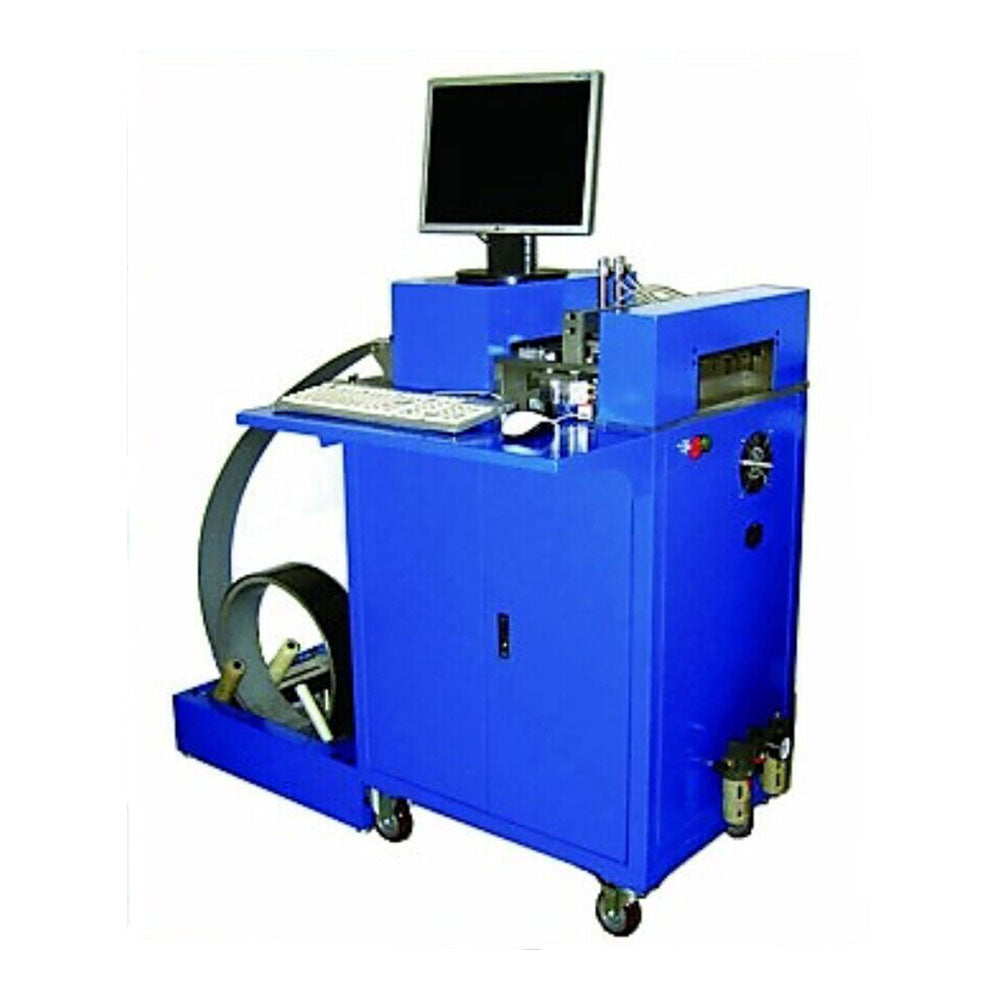

Ving CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch

Description
1.This Metal Channel Letter Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm.
2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately.

Material handling capabilities
Width: 60-180mm (2.36-7.09in)
Aluminum Coil Thickness: 0.016-0.047"(0.4mm~1.2mm)

Specifications
Notch angle: 30°and 105°
Notch depth: 0.16-0.63"(4mm-16mm)
Notch sides: One side
Voltage: Single phase AC110V
Frequency: 60HZ
Air pressure: 0.8Mpa
Air flux: 0.1 m3/min
Physical layout: 86.6*63*31.5"(L2200*W1600*H800*mm)
Net Weight: 440.9lb(200kg)
Packing Size: 40.5*32.7*58.3"(1030*830*1480mm)
Gross Weight: 633lb(287kg)

Important:
The computer is not included, please prepare it by yourself.
The windows system should be win XP or win7-32bit and have PCI solt.

Characteristics
1: Flexible to notch any letter height and any design on a standard. DXF file;
2: Auto notch in two different degrees;
3: Cut the letter to the size of your break automatically leaving no waste;
4: Stipple the location and direction of bend;
5: Can identify inside and outside of the figure;
6: Total job length, or single letter length can be calculated for a job estimating.
7: Can enter multiple break-points at your convenience for large letters;
8: Can change the position and direction of the fibulae at your convenience;
9: Whole job can be processed at one time, or one letter processed multiple time.
