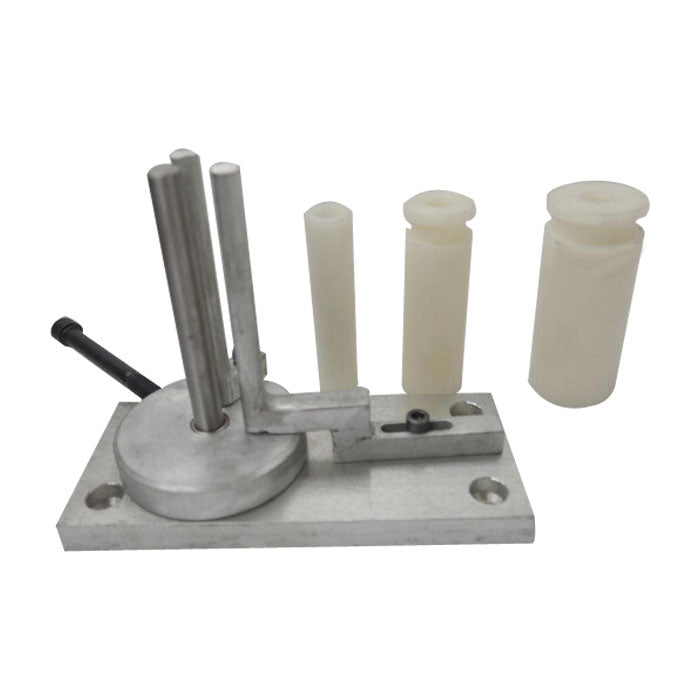

Steel and Stainless Steel Coil Strip Rounded Corner Bender Bending Tools for Metal Channel Letter 3.9"(100mm)

Steel and Stainless Steel Coil Strip Rounded Corner Bender Bending Tools for Metal Channel Letter 3.9"(100mm)

Different sizes of roller are equipped, which can be changed to adapt to different radian

Description:
• The tool must be used in a fixed table, otherwise uneven force, the effect will not good.
• Different sizes of roller are equipped, which can be changed to adapt to different radian.
• Adding lubricating oil to keep the bending tool work smooth and anti-rust.
• It can bend iron 1.0 mm, aluminium: 1.2 mm, stainless steel: 0.8mm, effective flanging height is 10 cm.
Working Height: 100mm
Gross Weight: 3200g/set
Packing Size: 9.0" x 5.2" x 6.5"(230 x 132 x 165mm)

Details

Usage

1. Prepare the strip and metal bending tool at first.
2. Put the diameter 40mm roller onto the bender.
3. Make the two positioning devices close to the roller, and then use spanner to tighten the bellow two screws.

4. The two positioning devices close to the roller.
5. Bending the strip by hand.
6. Finishing by roller of 40mm diameter.

7. Change the other roller of diameter 30mm/20mm onto the bending tool, you can attain bended strip with different radian.
Tips: You need to adjust the two screws to make the two positioning device close to the roller every time, if you change different diameter roller.
