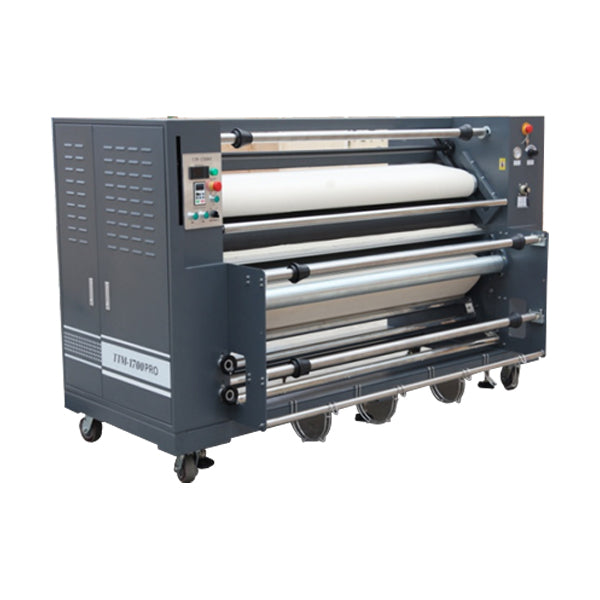

Roll-to-Roll Large Format Heat Transfer Machine 1700Pro (Oil-warming Machine)

Voltage(3 Phase)
$16,193.00
$16,193.00
Shipping calculated at checkout.
    Roll-to-Roll Large Format Heat Transfer Machine 1700Pro (Oil-warming Machine)

    Tech Specs

    Description

    The Large Format Roll to Roll heat transfer machine 1700 (oil-warming machine) is the new larger drum type of heat transfer equipment, available for dye sublimation ink prints, oil heating. It fully represents the advantage of the speed and good elect in transfer printing. It adopts the oil heating mode to control the temperature, achieving speed in warming and good effect in the heat preservation, as well as improving the productivity. In addition, it has functions such as automatic blanket, automatic lifting backing paper and automatic rolling picture etc.

    Specifications

    Working width: 1700mm
    Drum OD: 420mm
    Speed: 0-4.2m/min
    Power consumption: 18Kw
    Stainless steel Heater Qty: 12pcs
    Rated current: 30A
    Motor: 750w
    Net Weight: 1800kg
    Blanket: Φ3126X1820Xδ6mm
    Max OD unwind/rewind: 300mm
    Air expanded shaft of unwind for Prints and fabric / Others multi core shaft
    With air compressor
