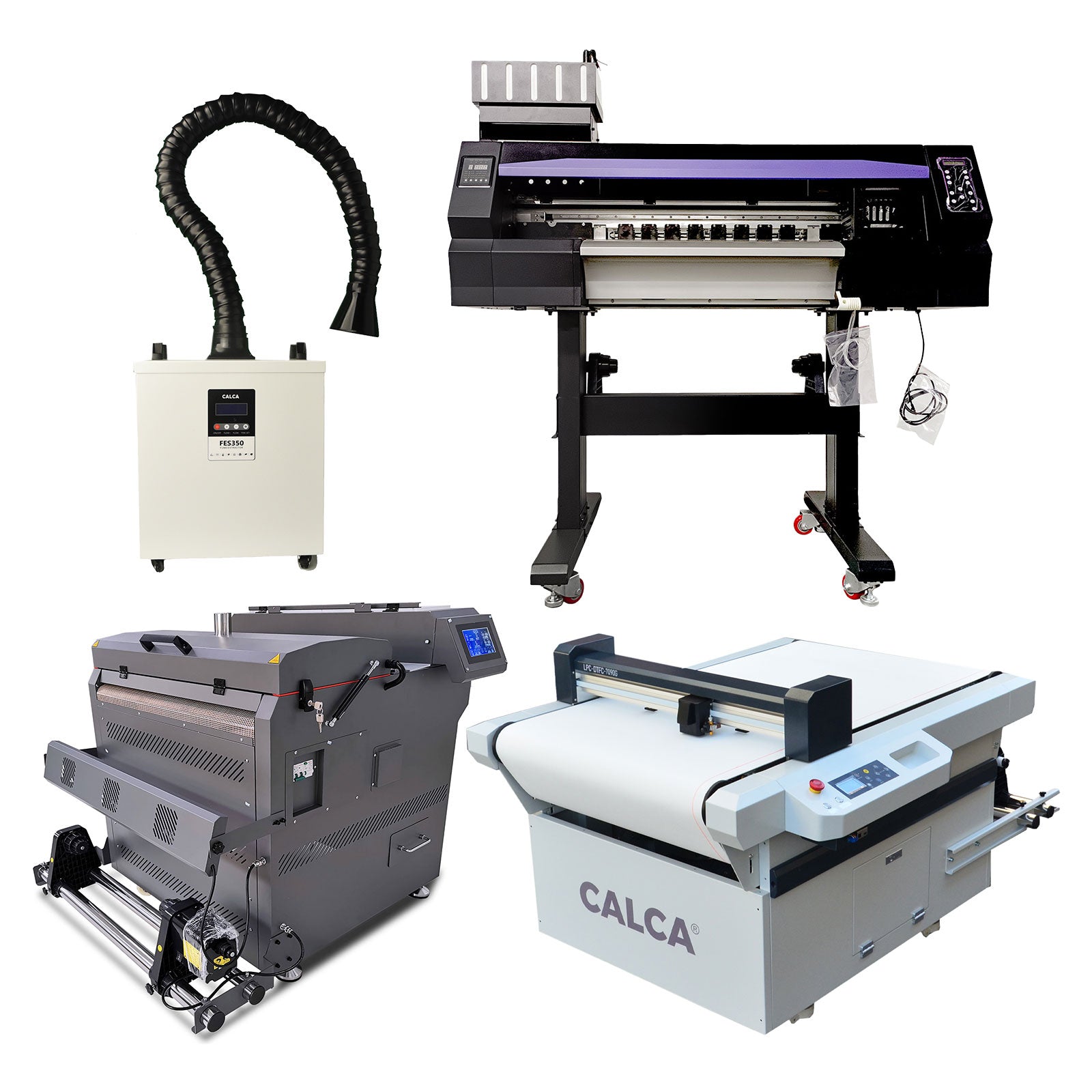

CALCA Prime 24inch DTF Printing System (Dual Epson I3200-A1 Heads, Compact Powder Shaker and Dryer)

$24,931.00
$24,931.00
Shipping calculated at checkout.
    CALCA Prime 24inch DTF Printing System (Dual Epson I3200-A1 Heads, Compact Powder Shaker and Dryer)

    Tech Specs

    Description

    With a touch screen display controller, simple to use.
    Infrared drying and heating improves and protects color reproduction.
    With a mesh belt platform (non-transportable, without suction function) secures the printing material to avoid bulging, run-offs, adhesion and media waste.
    CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
    With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
    This all in one DTF powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

    Requirements:
    Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
    Current: 28A, 3000W
    With CALCA DTF film, powder and Inks, you can easily and quickly create custom t-shirts and apparel.
    Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
    Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

    Remarks:
    CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

    Features:

    · With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
    · This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    · Infrared drying and heating improves and protects color reproduction.
    · Customized powder recycling drawer, increases effectiveness.
    · Shake powder control, dusting control, PID setting of curing temperature.
    · Automatic powder feeding, evenly spreading powder.

    Specifications:

    Item Model Prime 24inch (600mm) DTF Printer
    Available Print Head & Quantity Dual Epson I3200-A1 Printheads
    Max Printing Width 600mm
    Ink System Ink Type Pigment Ink
    Ink Color CMYK+W
    Ink Volume 1500ml
    Printing Mode
    (CMYK)    		 Mode Printing Speed (meter)
    High Speed Mode 7.65㎡/h
    Production Mode 4.8㎡/h
    Fabric Type cotton. linen.etc
    Working Condition Humidity 40%－85% （without condensate）
    Temperature 15 ℃－30 ℃
    Computer requirements Operating System Windows 7,Windows10 or Later Versions
    Hardware CPU:Intel core i5H↑Memory:8G↑/ Graphics Discrete
    Interface 1000MB Network Interface
    RIP Software DTF Master RIP Software
    Language Chinese/English
    Image format PNG / JPG / TIFF
    Rated Voltage AC110V, 50HZ / 60HZ, 1 phase.
    Power 9A, 1000W
    Rated Current 5A(220V)/9A(110V)
    Product size/Weight 1560L*700W*1360H(mm) /129KG
    Packing size/Weight 1890L*840W*760H(mm) /179KG
