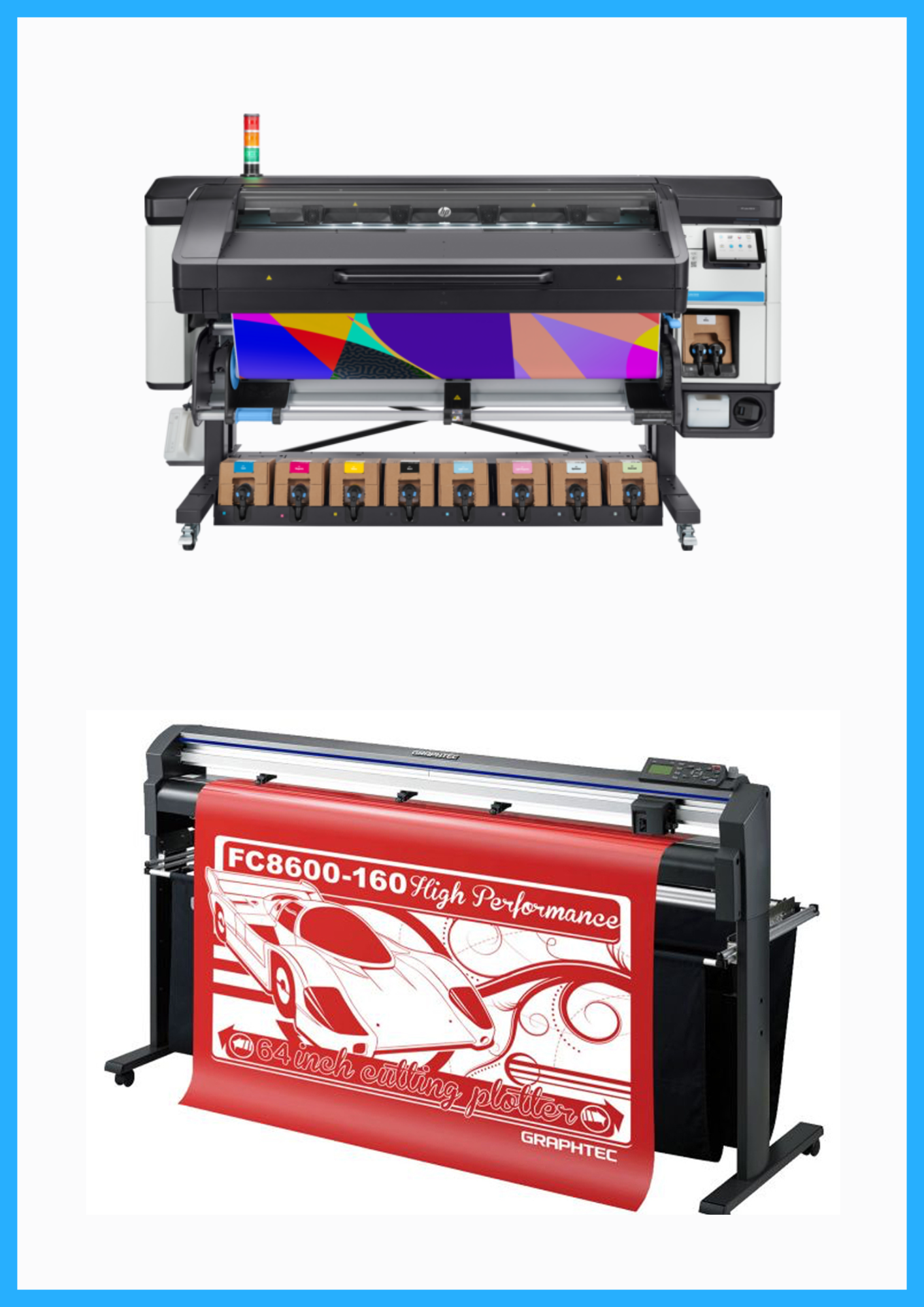

BUNDLE - HP Latex 800W 64" Wide Format Printer + 64" Graphtec FC8600-160 Vinyl Cutting Plotter - Refurbished (1 Year Warranty)
This Package includes:
-
HP Latex 800W 64" Wide Format Printer - New
-
64" Graphtec FC8600-160 High Performance Vinyl Cutting Plotter - Refurbished (1 Year Warranty)
Printer Description
HP Latex 800W Printer | 3XD61A. Print white without complexity. Get saturated color at speeds up to 388 ft²/hr outdoor. Sharpen your sustainability edge with HP Latex—no HAPs, odorless prints, local HP Eco-Carton outer carton recycling, and eco-conscious media.
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
EXPAND INTO WHITE, PRODUCE THE HIGHEST VALUE JOBS
Extend your portfolio into high-margin stickers and window graphics with the whitest white.
Print white without complexity—automatic recirculation and printhead cleaning reduce manual purging.
Deliver vivid colors at high speed, get striking contrast using pure blacks, and expect sharp 4-point text.
ROBUST, SMART, AND PRODUCTIVE PRINTING
Drive high productivity with saturated color at speeds up to 388 ft²/hr outdoor, easy spindle-less loading.
Control print operations virtually anytime, anywhere with HP PrintOS tools, and grow with HP Learn trainings.
Work fast processing reprints and multi-copy jobs with a smart front panel, and store up to 100 jobs.
SHARPEN YOUR SUSTAINABILITY EDGE WITH HP LATEX
Innovative water-based HP Latex Inks—no HAPs, no required hazard warning labels, and odorless prints.
Local HP Eco-Carton outer carton recycling.
Choose from a wide range of compatible eco-conscious media.
Specifications
Print speed
1313 ft²/hr - Max Speed (1-pass); 388 ft²/hr - High Speed (4-pass); 269 ft²/hr - Production Fast (6-pass); 215 ft²/hr - Production Quality, Textiles and Backlits (8-pass); 183 ft²/hr - High Saturation (12-pass); 151 ft²/hr - High Saturation Backlits and Textiles (14-pass); 183 ft²/hr - White Spot (60%); 99 ft²/hr - White Overflood (60%); 32 ft²/hr - White Underflood (100%); 22 ft²/hr - 3 Layers Day & Night (160%)[1]
Print technology
HP Latex Printing Technologies
Print quality color (best)
Up to 1200 x 1200 dpi
Number of print cartridges
9 (black, cyan, light cyan, light magenta, magenta, yellow, white, HP Latex Optimizer, HP Overcoat)
Ink types
Water-based HP Latex Inks
Print heads
10 (2 cyan/black, 2 magenta/yellow, 2 light cyan/light magenta, 2 white, 1 HP Latex Optimizer, 1 HP Overcoat)
Print repeatability
95% of colors ≤ 1.5 dE2000[2]
Connectivity, standard
Gigabit Ethernet (1000Base-T)
Finished output handling
Roll feed, take-up reel, wiper roller[3], automatic horizontal cutter (for vinyl, banner and canvas[4], paper-based media, and film)
Media types
Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles[5]
Roll maximum input
1
Media width, maximum
64 in
Roll maximum weight
121 lb
Roll external diameter
9.8 in
Power
Input voltage (auto ranging) 200-240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); two power cords; 16 A max per power cord
Power consumption
1.8-2.8 kW (5 kW peak) (printing), 105 W (ready)
Energy star certified
Yes
Operating temperature range
59 to 86ºF
Acoustic pressure emissions
60 dB(A) (operating), 38 dB(A) (idle), <20 dB(A) (sleep)
Acoustic power emissions (active, printing)
7.8 B(A) (operating), 5.5 B(A) (idle), <3.5 B(A) (sleep)
Environmental certification
ENERGY STAR®; RoHS (WEEE, EU, EAEU, China, Korea, India, Ukraine, Turkey); REACH; EPEAT Silver; OSHA; CE marking compliant; Meets AgBB criteria; French VOC A+; Greenguard Gold; UL Ecologo; ZDHC - Level 1
Minimum dimensions (W x D x H)
101.7 x 34.1 x 55.2 in
Weight
661 lb
Package dimensions (W x D x H)
108.4 x 43.3 x 65.6 in
Package weight
963.4 lb
