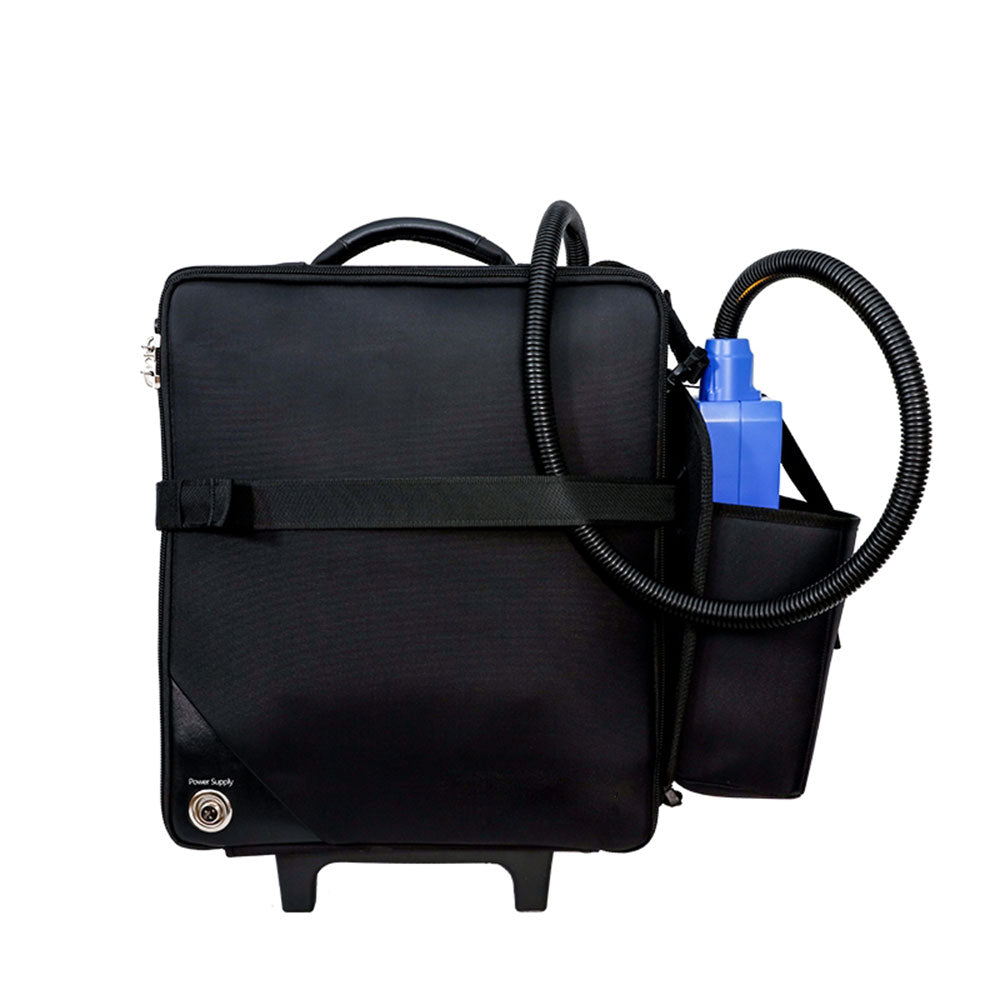

Backpack Type 50W Metal and Non-metal Surface Laser Cleaner Oil Cleaner Dust Cleaning Machine

Backpack Type 50W Metal and Non-metal Surface Fiber Laser Cleaner Oil Cleaning Duster Machine

The Backpack Laser Cleaning Machine is a high technology product for non- contact laser cleaning. It can remove the grease, dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material. It can meet the cleaning requirements of complex modeling and fine positioning in the industrial processing field, achieving a cleaner cleaning effect and a lower overall production cost.
It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, shipbuilding and power generation, etc.

Product advantages:
1. Portable design: compact structure, wearable.
2. High efficiency cleaning: high efficiency of laser cleaning, saving time;
3. Non-contact: laser cleaning without grinding and non-contact;
4. Pollution-free: do not need to use any chemical agents and cleaning fluid, easily solve the environmental pollution problems caused by chemical cleaning;
5. Strong expansibility: replaceable field mirror, changing the depth of zoom, wider width of laser cleaning.

Laser characteristics:
Specify accordingly: Wavelength 1064 nm
Spectral width: 5nm (+/- 3 nm)
Average Output power: 50W
Output power stability: 5%
M^2: 1.3 (+/-0.3)
Beam ellipticity: 90%
Pulse duration: 90 – 110 ns
Variable laser pulse repetition rate: 50~80kHz
Operation start time: <1min
Stable Warm up time: <10min

Laser gun specifications:
Min/Max output beam (non-moving output mirror) aperture: 5mm~10mm
Variable Min/Max Lining scanning area: Maximum 60 mm
Laser gun dimensions and weight: 162mm x 95mm x 353mm, 3KG
Variable power range: 10-100 %
Frame: solid aluminum
Power supply: 220 V

Applications:
Rust Erasing

Sample: angle iron
Base material: Q235
Erasing Efficiency: 1400mm2/s
Erasing Effects: surface undamaged and no rust left behind

Sample: propeller gear shaft
Base material: 40Cr
Erasing Efficiency: 1400mm2/s
Erasing Effects: surface undamaged and no rust left behind

Sample: carbon steel tube
Base material: carbon steel
Erasing Efficiency: 2000mm2/s
Erasing Effects: surface undamaged and no rust left behind

Sample: chuck
Base material: alloy steel
Erasing Efficiency: 1700mm2/s
Erasing Effects: surface undamaged and no rust left behind

Pre and Post Treatment of Welding

Sample: water pipe joint
Base material: alloy cast iron
Erasing Efficiency: 1800mm2/s
Erasing Effects: surface polished and no stained layer left behind


Oxide Erasing

Sample: vane of air blower
Materials: 2Cr13
Erasing Efficiency: 500mm2/s
Erasing Effects: surface polished without any oxide residue


Sample: Aluminum alloy plate
Materials: 6033
Erasing Efficiency: 1500mm2/s
Erasing Effects: surface polished without any oxide residue

Paint Cleaning

Sample: gif box

Base material: cold-roll steel sheets
Erasing Efficiency: 1800mm2/s
Erasing Effects: paint coat remove completely, no damage to the base material
