Auto-Open Series Mi2 Auto Open Clam/Hover Press

Options
$719.00
$719.00
Shipping calculated at checkout.
    Auto-Open Series Mi2 Auto Open Clam/Hover Press
    Auto-Open Series Mi2 Auto Open Clam/Hover Press
    Auto-Open Series Mi2 Auto Open Clam/Hover Press

    Tech Specs

    Description

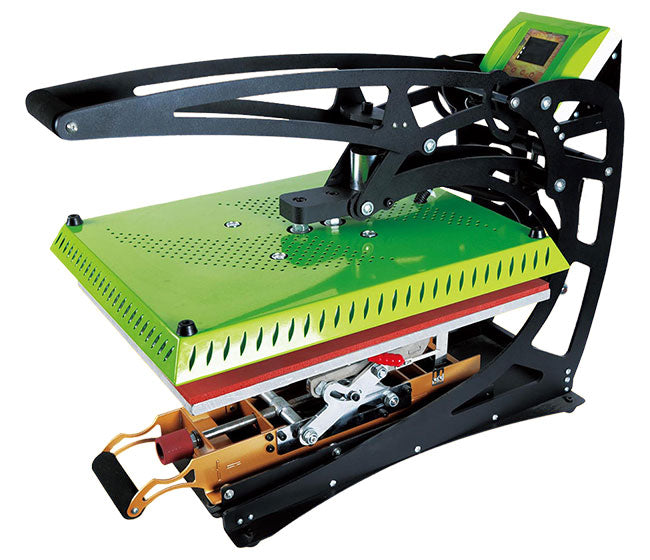

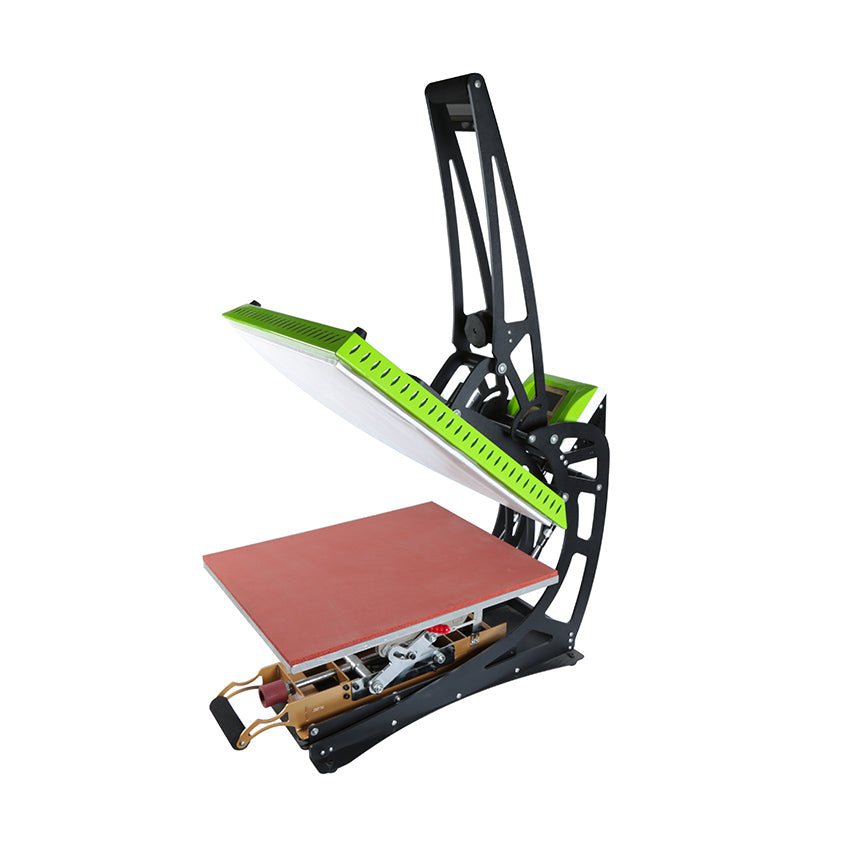

    The heat press is equipped with a manual override, a digital display, and a sound signal at the end of work. Designed for printing textiles and other materials, The machine may be used on t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation etc.

    Gap for DTG curing, specially designed for curing inks on DTG printed t-shirts.
    The upper platen curing over the garment to ensure bringhter color and a stronger bond between ink and the garment. With this technology, you never have to worry about direct-to-garment ink residue on your platen.

    Specifications

    Power supply:110V,60hz,1800W,17A/220V,50hz,2600W,12A
    Standard platen: 16" x 20" (40 x 50cm)
    Custom platen: optional
    Temperature control range: room temp – 450F° (232C°)
    Timer: 0-999s
    Manual hover range: 0-2" ( 0-5.1cm)
    Packing: carton with inner styrofoam
    Package: 33" x  25.2" x 22.4" (84 x 64 x 57cm)
    Gross weight: 119lbs (54kg)

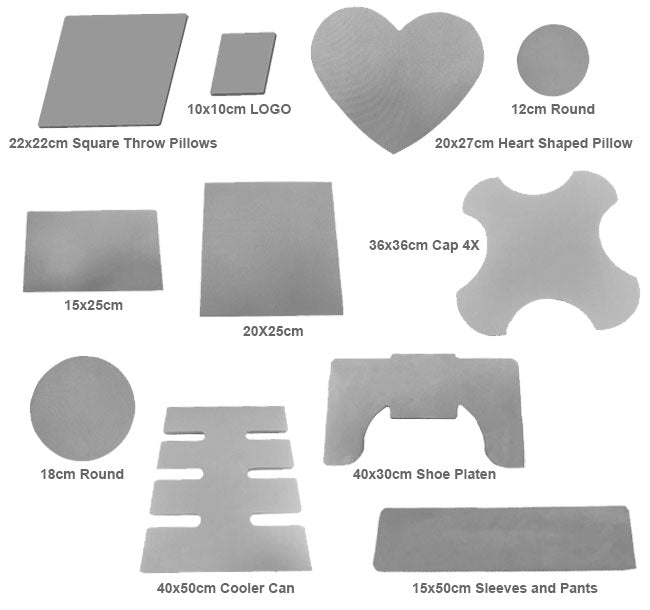

    (optional custom interchangeable lower platen)
    1. 8-3/4" (22 x 22cm) square throw pillows
    2. 4" x 4" (10 x 10cm) LOGO
    3. 8" x 12-3/4" (20 x 27cm) heart shaped pillow
    4. 4-3/4" (12cm) round
    5. 6" x 10" (15 x 25cm)
    6. 8" x 10" (20 x 25cm)
    7. 14-1/5" (36 x 36cm) Cap 4X
    8. 7" (18cm) round
    9. 16" x 20" (40 x 50cm) cooler can
    10.16" x 12"  (40 x 30cm) shoe platen
    11. 6" x 20" (15 x 50cm) sleeves and pants

    Features:

    High pressure up to 0.18 kg/cm2 or 2.40PSI at standard lower platen 16in x 20in PSI
    or 2.00 kg/cm2 or 15.3 PSI for Φ15cm or 8in round platen
    Floating heater to ensure pressure even distribution
    Coated heater
    Odorless high temperature silicon pad
    Auto open with cycle alarm
    Emergency release with over ride button
    Double heater shell for operation safety and energy efficiency
    Drawer slide out for easy load
    Custom optional platen
    Take 5-sec to change lower interchangeable platen for the most jobs
    Manual hover to work with DTG, screen print as dryer
    Double handle design to facilitate petites
    LCD display
