Arm Main PCB Assy - E106735

$367.84
$367.84
Shipping calculated at checkout.
    Arm Main PCB Assy - E106735
    Arm Main PCB Assy - E106735

    Tech Specs

    Description

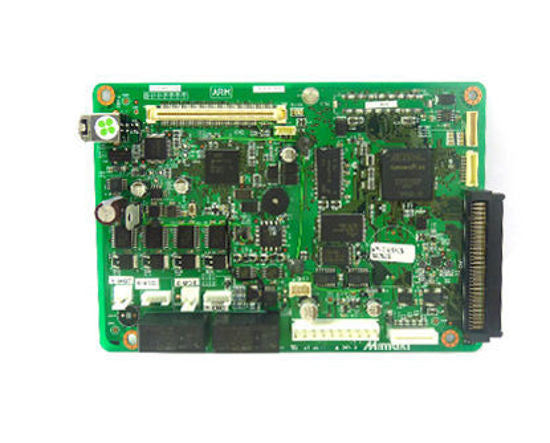

    This Arm Main PCB Assy is suitable for Mimaki CG-FXII series cutting plotters. This is the original Mimaki part (number E106735). This main board replaces E103677 which was discontinued by Mimaki.
    The additional parts (E106735 Arm Main PCB Assy and E106635 CG-Relay PCB Assy) are needed in order to have the main board E106735 replace E103677 on the following cutting plotters:

    • CG-75FXII serial# G61AB531 - G61BB545
    • CG-130FXII serial# G71BB176- G722B325
    • CG-160FXII serial#  G81BB271-G821B325

    Cutting plotters with a serial number different from the ones listed above need the additional parts (E106735 Arm Main PCB Assy, E106635 CG-Relay PCB Assy and M014965 Arm PCB Installation Kit) in order to have the main board E106735 replace E103677.

    Printer compatibility

    • Mimaki CG-130FX
    • Mimaki CG-130FXII
    • Mimaki CG-160FXII
    • Mimaki CG-75FXII
