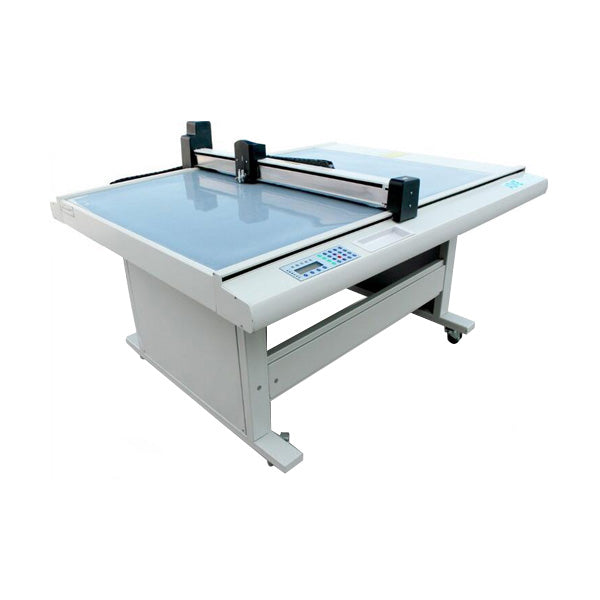

AOKE GD Series 1500 x 900mm Costume Pattern Cutting Plotter

Description

GD series costume pattern cutting plotter is the machine mainly for cutting and plotting for garment pattern, which was lauched by AOKE long time ago. It’s the first choice of the fashion designer which can cut and draw many common materials used for garment pattern, such as card paper, kraft paper, red hard paper etc. It can cut and plotting in one time with the pen and special knife come with the machine, not by changing the tools. And it compatible with any CAD software, so the CAD software can send the cutting file directly to the plotter to cut or plotting. GD series high speed cutting machine could meet the requirement for high-level cutting accuracy. It employs import steel belt for power driving, and work under high precision, high speed, stable capability, convenient to use, compatible with any CAD software. It is greatly welcomed by customers and widely applied for high accuracy cutting or plotting.

Main features

Very stable, low failure rate
Steel belt driving, accuracy assured.
Compatible with any CAD software.

It is equipped with spring plotting pen, special cutting knife. The paper feeding system could be selected as option.
Special knife

No.	Photo	Name	Application
1		Special knife	Used to cut materials within 2mm thick Cutting materials: paperboard, Kraft paper, gray board, offset board and self-adhesive paper, etc.

Pen

No.	Photo	Name	Application
1		Pen	Drawing

Option:

Suspended type manual sheet feeder

Floor model manual sheet feeder

Automatic sheet feeder

Sample:
