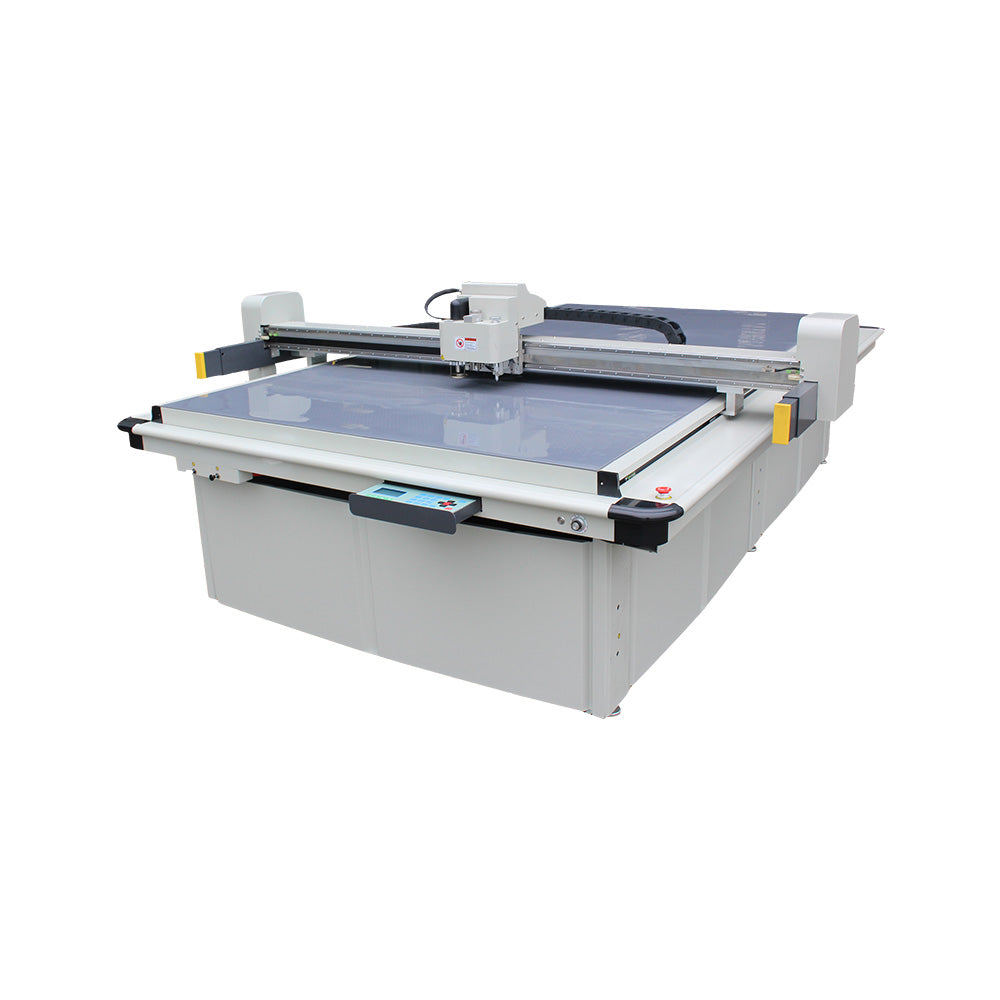

AOKE DCZ70 Series 1700 x 1300mm High Speed Flatbed Digital Cutter
Description：
DCZ70 series flatbed digital cutter is AOKE new developed carton box sample making system, the capability improves a lot comparing with the former, not only the processing speed, processing accuracy, convenient operation, but also the impressive surface.DCZ70 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board , chipboard, foam board, plastic board, thin wood board, leather, cloth, honeycomb board, KT board etc. we are great reputed by customers from packaging, advertisement, printing, die cutting, electron, gasket, sign industries. The DCZ70 win great support from Shanghai Technology Small and Medium Enterprises Technical Innovation Fund.
DCZ70 series character:
Two interchangeable tools, whole sets head design, convenient to change cutting tools.
Four spindles high speed controller, modularizing installing, convenient for maintenance.
Cutting depth could be adjusted as customers need.
Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.
| Specification Form | |
| Model | DCZ701713 |
|
Effective cutting area |
1700 x 1300mm |
|
Configuratio |
Oscillating knife, pen, creasing tool, drag knife |
|
Max aped |
1350mm/s |
|
Smallest cutting diameter |
6mm |
|
Maximum cutting thickness |
30mm |
|
Control line and driver |
Servo |
| Precision | ≤0.1mm |
|
Vacuum |
5.5kw |
|
Data form |
HPGL, DXF, PDF |
|
Voltage |
220V±10% 50Hz |
|
Data port |
Parallel port, serial port, USB port |
|
Data transmission speed |
10MB/S |
|
Input cushion area |
32MB |
| Occupy dimension (L x W x H) | 2600 x 2160 x 1180mm |
|
Note |
Other size can be customized. |
Knife tool:
| No. | Photo | Name | Application | Note |
| 1 |  |
16 degree knife |
Used to cut materials between 10mm to 15mm thick. |
|
| 2 |  |
20 degree knife |
Used to cut materials between 7mm to 10mm thick. |
|
| 3 |  |
26 degree knife |
Used to cut materials between 5mm to 7mm thick. |
|
| 4 |  |
Drag knife |
Used to cut materials within 3mm thick. |
|
| 5 |  |
Special knife |
Used to cut materials within 2mm thick |
|
| 6 |  |
Foam knife | Used to cut foam and other soft materials less than 30mm thick. | |
| 7 |  |
V cut knife | Used for making V groove on the Honeycomb board and grey board. | Option |
| 8 |  |
Grey board V cut knife | Used to making V groove on the grey board to make the gift box. | Option |
| 9 |  |
Double edge knife | Mainly for the thick and hard materials such as grey board, PP etc | Option |
| 10 |  |
30 degree knife | Mainly for the hard material such as carbon gasket, gasket, ruber, grey board, PP etc. | Option |
Creasing wheel:
| No. | Photo | Name | Application | Note |
| 1 |  |
3mm creasing wheel |
Creasing thickness: Between 3mm and 5mm corrugated board. |
|
| 2 |  |
5mm creasing wheel |
Creasing thickness: Between 5mm and 7mm corrugated board. |
|
| 3 |  |
7mm creasing wheel |
Creasing thickness: Between 7mm and 10mm corrugated board. |
|
| 4 |  |
2mm creasing wheel |
Creasing thickness: Within 2mm, such as corrugated board, paperboard, Kraft paper, gray board, offset board, composite materials etc. |
|
| 5 |  |
PVC creasing wheel |
Used for PVC, plastic box, PVC corrugated etc. |
Option |
Pen:
| No. | Photo | Name | Application | Note |
| 1 |  |
Pen |
Drawing |
